| Swing | 31.75" | 806.45 mm |
| Machining Length | 21" | 533.4 mm |
| Max. Turning Diameter | 10" | 254 mm |
| Distance Between Centers | 21" | 533.4 mm |
| X-Axis | 9.3" | 236.22 mm |
| Z-Axis | 21" | 533.4 mm |
| ATC | 24 | 24 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Dimensions | 143″ x 90″ x 87″ | 143″ x 90″ x 87″ |
| Weight | 10,500 Lbs | 10,500 Lbs |
** $159k replacement cost, $86k in added options **

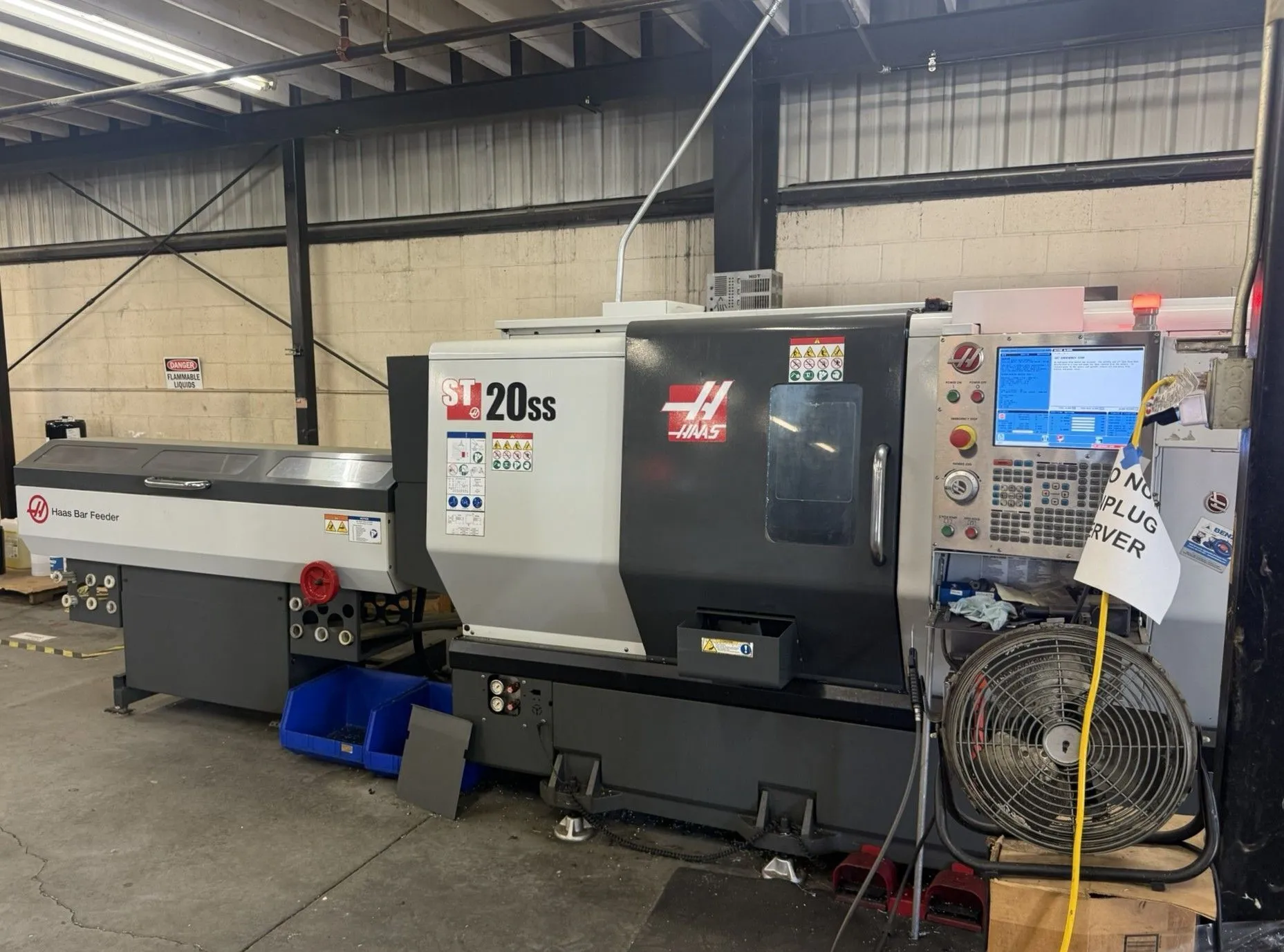

HAAS CNC Control
Programmable Tailstock
HAAS Bar Feeder
Live Tooling with 6k Rpm upgrade
Automatic Tool Presetter
2nd Home Position
Program Counter 1 Parameter
Chip Conveyor
