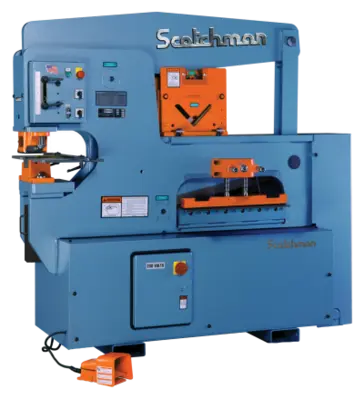

Scotchman 9012-24M Ironworker
Overview
If you are in the medium to large metal fabrication business, the Scotchman 9012-24M hydraulic ironworker will give you the greatest amount of versatility and flexibility on the market today. The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide and is supplied with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear capacity on this machine is 6” x 6” x 1/2”; and like all Scotchman angles shears, it is designed to give a distortion free cut. The 9012-24M hydraulic ironworker has the same large tool table design as the 6509-24M, allowing quick and easy change of optional tooling. Like all Scotchman ironworkers, the 9012-24M is backed by our best-in-the business 3-year warranty!
Specs
Rated on: 65,000 PSI Tensile and A 36 Mild Steel
Punching Capacity: 90 ton, 1-1/8" in 1"(80 mt, 27 mm in 25 mm)
Special Tooling: 4" Max. Dia. (100 mm Max. Dia. )
Throat Depth: 12"(300 mm)
Flat Bar Shear: 24" Length, 1" x 8", 3/4" x 12", 1/2" x 16", 1/4" x 24"(600 mm, 25 mm x 200 mm, 18 mm x 300 mm, 12 mm x 400 mm, 6 mm x 600 mm)
Opt. Saber Blade: 1/2" x 22", 3/8" x 24"(12 mm x 550 mm, 10 mm x 600 mm)
Angle Shear 90°: 6" x 6" x 1/2"(150 mm x 150 mm x 12 mm)
Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8", 4" x 4" x 1/2"(75 mm x 75 mm x 10 mm, 100 mm x 100 mm x 12 mm)
Brake 12": 50 ton(45 mt)
Brake 24": 40 ton(36 mt)
Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2"(20 mm, 25 mm, 32 mm, 38 mm, 50 mm)
Rectangle Notcher: 2" x 2-1/2" x 3/8"(50 mm x 65 mm x 10 mm)
90° V. Notcher: 6" x 6" x 5/16"( 150 mm x 150 mm x 8 mm)
Channel Shear: 2" to 6" Adj. (50 mm to 150 mm Adj. )
Offset Die Holder: Max. 40 ton(Max. 36 mt)
Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (56 spm)
Strokes per minute in light material: 3/4" Stroke [Punch Station] (19 spm)
Hydraulics: 2,600 psi(183 bar)
Motors Standard: 5 hp 3 ph, 230/240, 208/380/575(3.73 kW)
Motors Optional: 5 hp 1ph, 230v(3.73 kW)
Dimensions: W-26", L-76", H-70"(W-66 cm, L-193 cm, H-177 cm)
Shipping Weight: 4,204 lbs (1,906 kg)
