Used

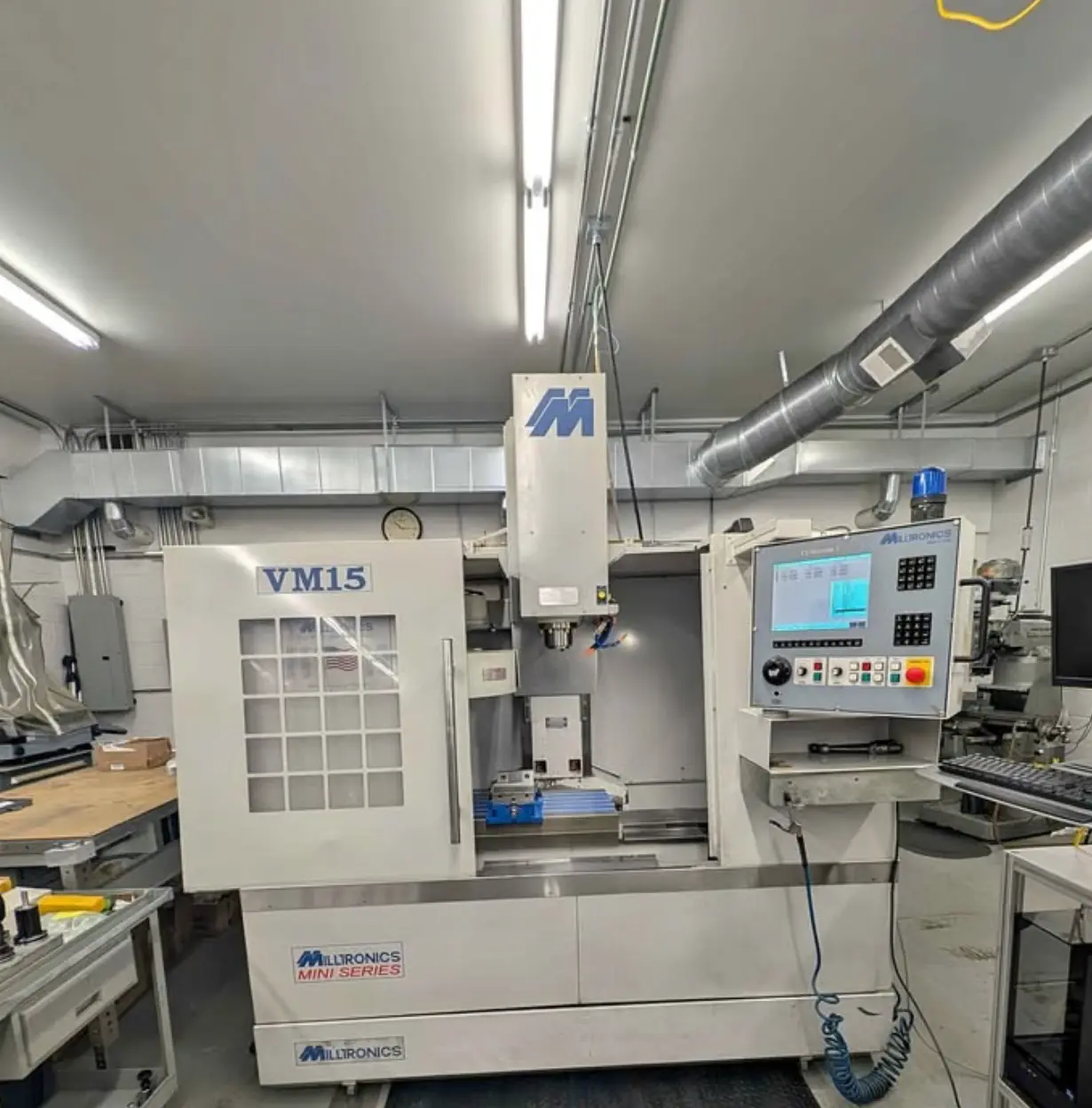

USED 2004 MILLTRONICS VM15XT

Ohio, United States
1,542Listings|425Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center with Centurion 7 Control, CAT40 Spindle, and 15 HP motor. Features 30"x15"x17" XYZ travel, 8000 RPM, and 16 tool ATC. Includes manuals and CT40 holders, excludes vices.

Specs
X
30"
762 mm
Y
15"
381 mm
Z
17"
431.8 mm
Power
15 hp
11.2 kW
RPM
8,000 RPM
8,000 RPM
# ATC
16
16
Taper
CAT 40
CAT 40
Table-W
16"
406.4 mm
Table-L
36"
914.4 mm
# Axis
3
3
Control
CNC (Centurion 7)
CNC (Centurion 7)
Equipped With

-Centurion 7 Control
-CAT40 Spindle
-15 HP Spindle Motor
-16 Pocket Umbrella ATC
-Flood Coolant
-Mist Coolant
Machine includes manuals and a few CT40 endmill side lock holders. The machine does NOT come with vices.
