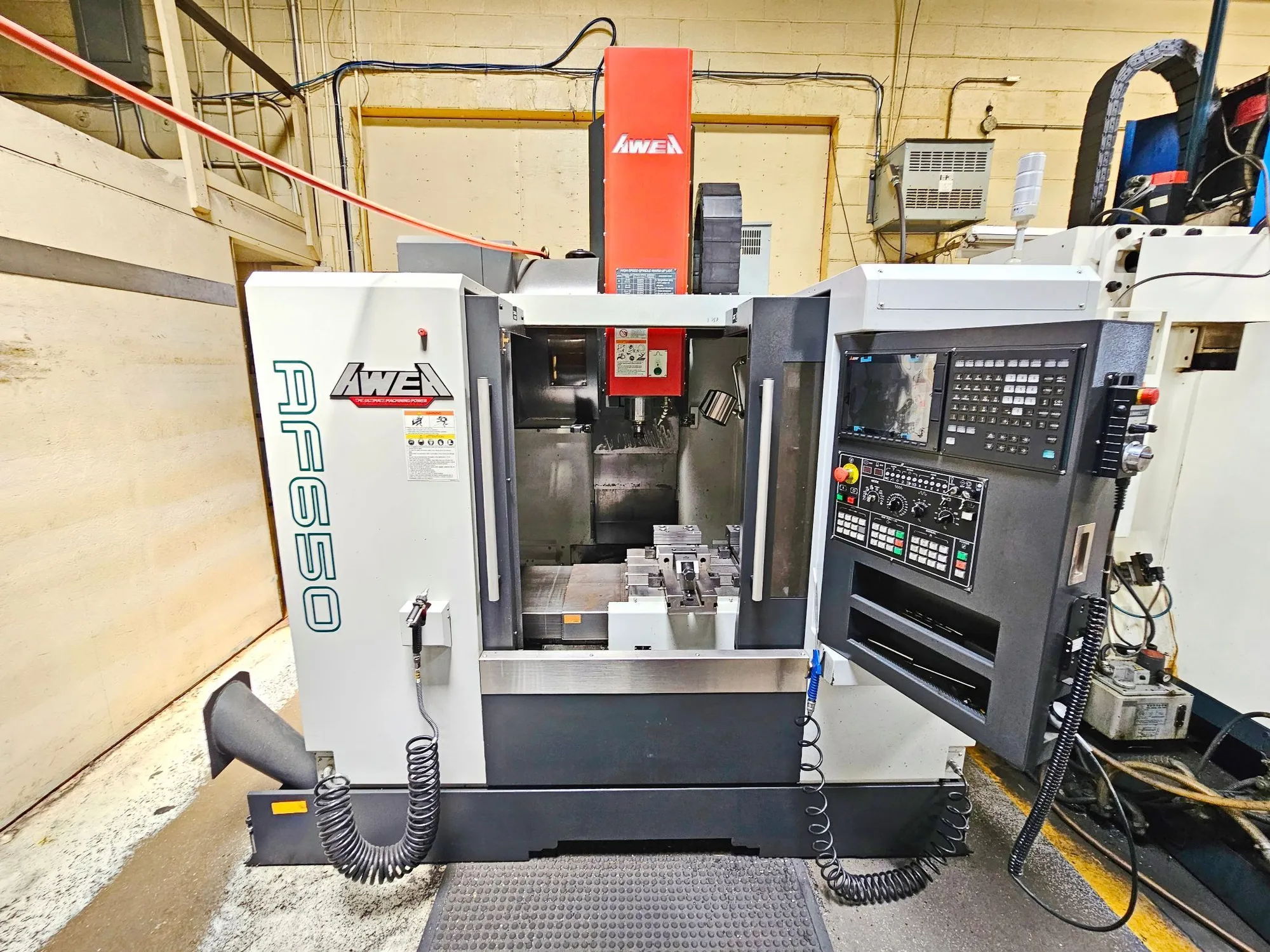

USED 2022 AWEA AF-650

Ontario, Canada
334Listings|133Followers
Overview
Vertical Machining Centers

2022 Awea AF-650 Vertical CNC Machining Center, TSC, Spindle Cooling, Chip Auger, Centralized Lubrication

Specs
X-Axis
25.6"
650.24 mm
Y-Axis
20.1"
510.54 mm
Z-Axis
20.1"
510.54 mm
Power
15 hp
11.2 kW
RPM
10,000 RPM
10,000 RPM
# ATC
24
24
Taper
BBT-40
BBT-40
Table-W
20.1"
510.54 mm
Table-L
29.52"
749.81 mm
# Axis
3
3
Max Table Load
1,102 lb
499.9 kg
Rapids (X/Y/Z)
1,417 / 1,417 / 944 in/min.
1,417 / 1,417 / 944 in/min.
Made In
Taiwan
Taiwan
Control
CNC (MITSUBISHI M80)
CNC (MITSUBISHI M80)
Dimensions
106.29" X 82.67" X 112.2"
106.29" X 82.67" X 112.2"
Weight
9,259 lb
9,259 lb

Only 3600 hours

Equipped With

Through spindle coolant
AllCool MB300 coolant system
Spindle cooling system
Automatic power off
Centralized lubrication
Chip auger
