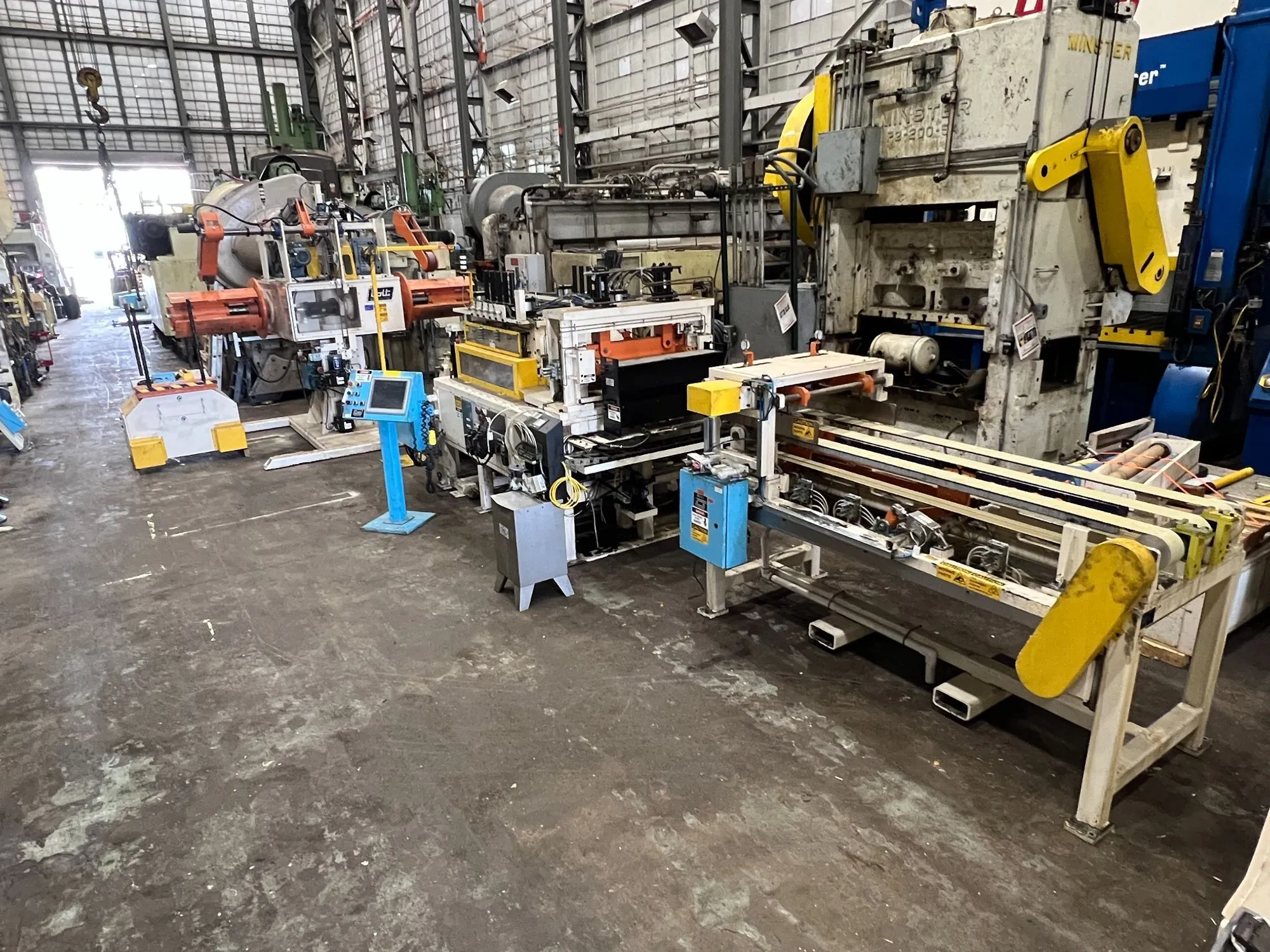

USED 2023 COLT CERFS-35-30

NEW: 2023

CHDRD-1200-30 Colt Heavy Duty Powered Double End Uncoiler
Serial#1181-120
Max Coil Weight Per Side: 12,000#
Max Coil Width: 30"
Max Coil OD: 60"
Coil ID Range: 19" - 25"
Holddown Arms with Motorized Wheels
Hydraulic Expansion
Motorized Rotation

CKT-1200-30 Colt Heavy Duty Traveling Coil Car
Serial#1181-141
Max Coil Weight: 12,000#
Max Coil Width: 30"
Max Coil OD: 60"

CPTT-30 Colt Pivot Style Threading Table with Extendable Peeler Blade

CERFS-35-30 Colt Medium Duty Feeder/Straightener
Serial#1181-114
Passline Height: 49-1/2"
Max Coil Width: 30"
Max Coil Thickness: .060" @ 30" Wide (80,000 PSI Tensile)
Minimum Material Thickness: .015"
Maximum Feed Length: 0.005" to 999.999"
Distance Between Roll Centers: 4 - 7/8"
Maximum Speed: 110 FPM
Accuracy: +/- .002"
Number of Pinch Rolls Entry / Exit: 2
Diameter of Pinch Rolls: 3.5"
Number of Straightening Rolls: 9
Diameter of Straightener Rolls: 3.5"
Alligator Style Feeder Straightener Head for easy cleaning of rolls
Heavy Duty Hardened Back Up Rolls
Pilot Release On Top Straightener Rolls
Chrome Finish Straightening Rolls
#3 Matt Satin Finish Feeder Rolls
Powered Entry Guide Rolls
Entry Guide Rolls - Power Adjustment
Adjustable Entry Cantenary Stock Support

CMPS-30 Colt Medium Duty Production Shear
Serial@1181-180
Maximum Material Thickness: 0.080" @ 30" wide
Hydraulic Down Cut
Maximum Stroke: 4"
Cycle Time: 5 cuts per minute

PAX Roller Lubricator
Model: CAB486
Serial#11577

CMMSF-30 Colt Medium Duty Magnetic Servo Blank Conveyor

***ALL SPECIFICATIONS SUBJECT TO VERIFICATION***
