USED 2019 OKUMA GENOS M560-V
Overview
Description

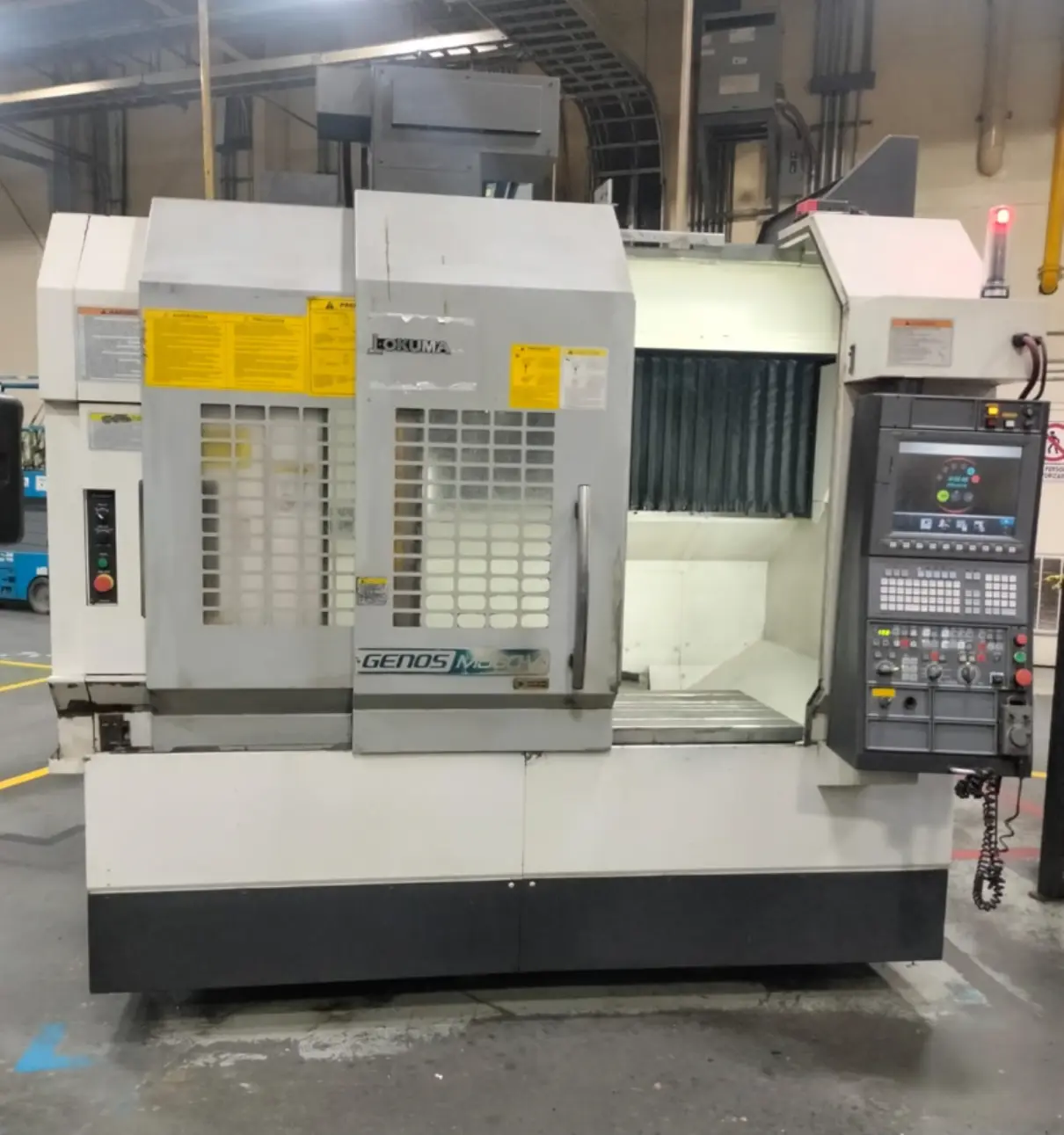

2019 Okuma Genos M560-V Vertical Machining Center – High-Performance CNC Productivity
Boost your machining capabilities with this well-maintained 2019 Okuma Genos M560-V Vertical Machining Center, engineered for exceptional accuracy, reliability, and production efficiency. Built by one of the industry's most respected CNC manufacturers, the Genos M560-V delivers the precision and rigidity required for demanding machining applications across aerospace, automotive, medical, energy, and general manufacturing sectors.

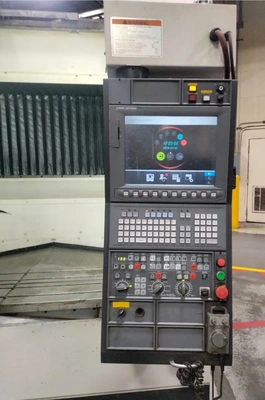

Featuring a robust cast iron construction, high-speed spindle, and Okuma's renowned OSP control, this machine offers outstanding thermal stability, smooth operation, and consistent part quality. The generous work envelope accommodates a wide range of components, while rapid traverse rates and efficient tool-changing capabilities help maximize throughput and reduce cycle times.
Designed for both job shops and production environments, the Genos M560-V combines powerful cutting performance with user-friendly operation, making it an excellent investment for manufacturers seeking dependable CNC machining performance.
Specifications
| X | 41.34" | 1,050 mm |
|---|---|---|
| Y | 22.05" | 560.07 mm |
| Z | 18.11" | 459.99 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 22.05" | 560.07 mm |
| Table-L | 53.1" | 1,348.7 mm |
| # Axis | 3 | 3 |
| Control | CNC | CNC |
| Dimensions | 124 x 89 x 107 in | 124 x 89 x 107 in |
| Weight | 12100 lbs | 12100 lbs |
