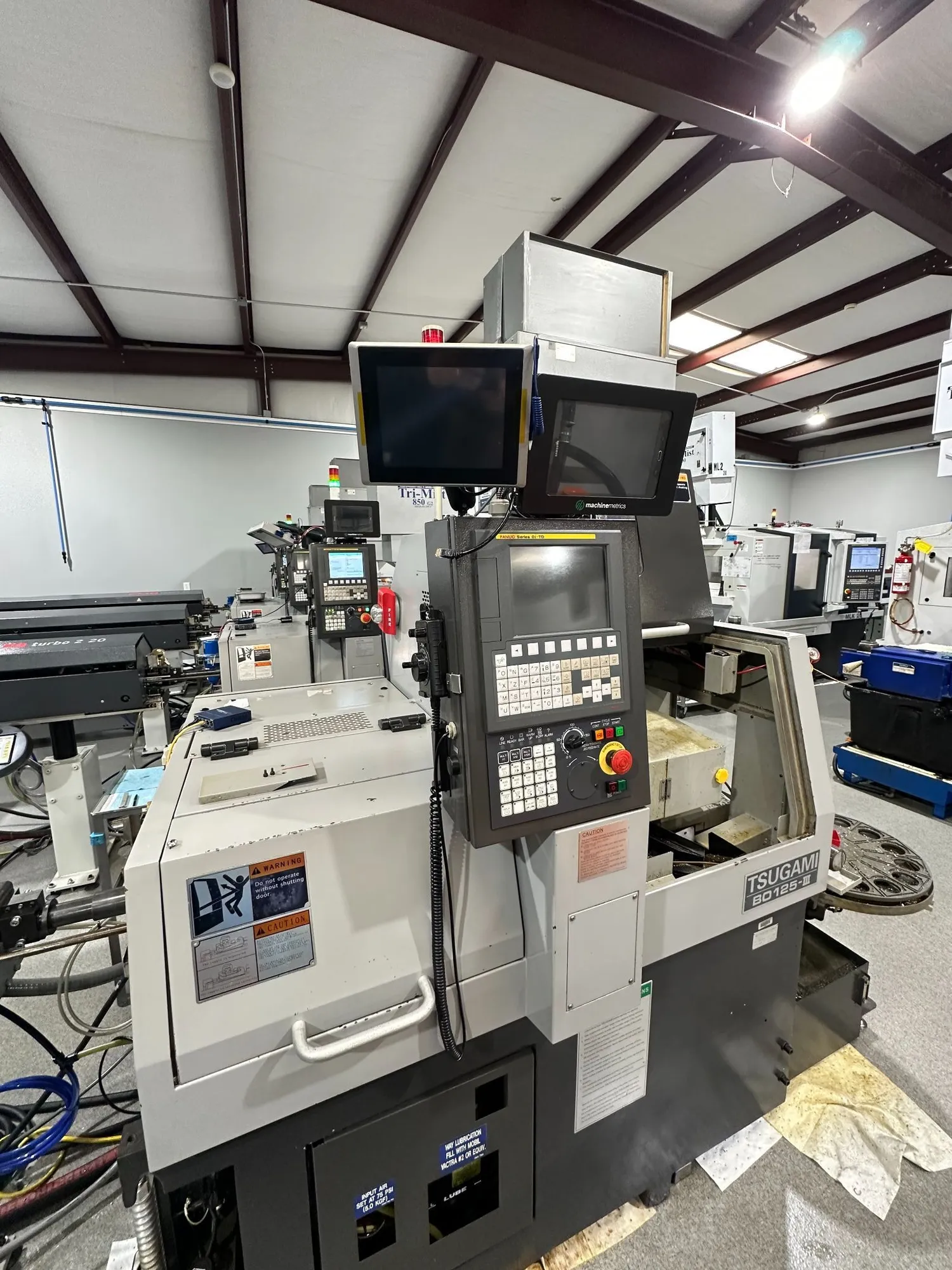

USED 2015 TSUGAMI BO125III
Description
2015 Tsugami BO125-III Swiss Lathe with Fanuc Oi-TF Control, Live Tooling, FMB Turbo Barfeed, Mist Collection, High Pressure Coolant, and Fire Trace.
Specifications
| Control | CNC (Fanuc Oi-TF Control) | CNC (Fanuc Oi-TF Control) |
|---|---|---|
| Dimensions | 65.2" x 44.3" x 66.9" | 65.2" x 44.3" x 66.9" |
| Weight | 4,409 LBS | 4,409 LBS |
Number of Axes...............................5
Sliding Headstock / Guide Bushing............YES
Front Drilling...............................4
Back Drilling Min/Max........................4/8
Max Tool Spindle Slotting Cutter Diameter....1.18" (30mm)
Sub Spindle Front Ejection Max Length........3.9" (100mm)
Sub Spindle Maximum Machining Diameter.......0.5" (12.7mm)
Maximum Headstock Stroke.....................8.26" (210mm)
Maximum Machining Diameter...................0.5" (12.7mm)
Live Milling.................................8,000 RPM (Max)
Spindle Speeds...............................12,000 RPM
Number of Tool Positions.....................21
Coolant Motor................................0.36 HP (.25 kW)
Axes Motors..................................0.67 HP (.5 kW)
Rapid Traverse Rate..........................32 M/Min
Turning Tools Tooling Size...................1/2" Square
Main/Sub Spindle ER Collet Holders...........20 MM Diameter
Coolant Tank Capacity........................180L (47 Gal.)
Compressed Air Requirements..................60 PSI
Input Power..................................11.0 KVA
Machine Dimensions...........................65.2" x 44.3" x 66.9"
Weight.......................................4,409 lbs. (2,000 kg)
Equipped With
Fanuc Oi-TF CNC Control
Live Tooling
FMB Turbo 2-20 12' Barfeed
Tri-Mist 850 G2 High Output Mist Collector
MP Systems High Pressure Coolant
Fire Trace
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
