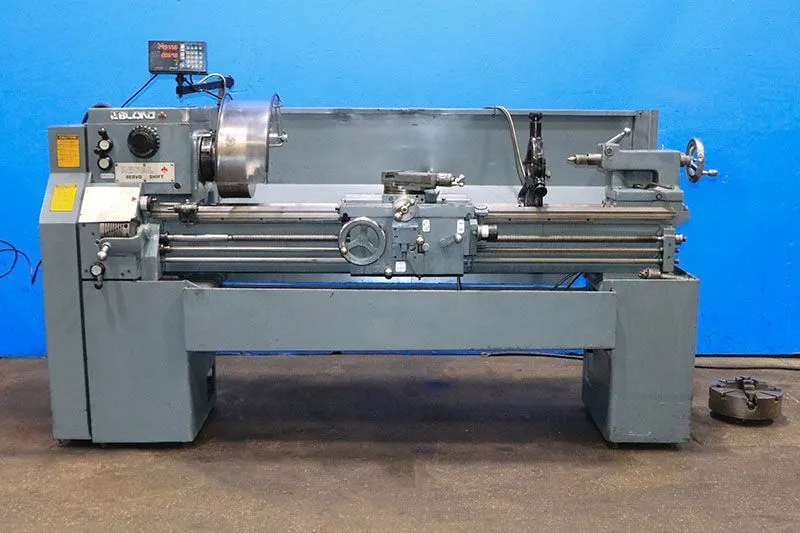

USED 1982 LEBLOND 15 REGAL
Overview
Explore precision with this 1982 15" x 54" LEBLOND REGAL Engine Lathe. Features include 15-1/2" swing over bed, Sony 2-axis digital readout, threading capabilities, and a 7.5 HP motor. Comes with many accessories for versatility and efficiency.
Specs
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1,800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 104"L x 40"W x 51"H
Equipped With
INCH & METRIC THREADING CAPABILITY
SONY TWO AXIS DIGITAL READOUT
TAPER TURNING ATTACHMENT
12" CUSHMAN 4-JAW CHUCK
12" BISON 3-JAW CHUCK
STEADY REST
THREAD DIAL INDICATOR
DRILL CHUCK FOR TAILSTOCK
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
COOLANT SYTEM WITH REMOVEABLE CHIP PAN
7-1/2 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR THREE PHASE 220 VOLT OPERATION
MANUALS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
