Excello 602 Vertical Mill - 9" x 42" table, 30" longitudinal travel, 16" cross saddle travel, 16" knee travel. Variable spindle speeds (85-4000 RPM), R-8 spindle nose. Features: Variable speed head, Servo power feed, Aniliam Mini Wizard digital readout, one-shot lube system.
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | R-8 | R-8 |

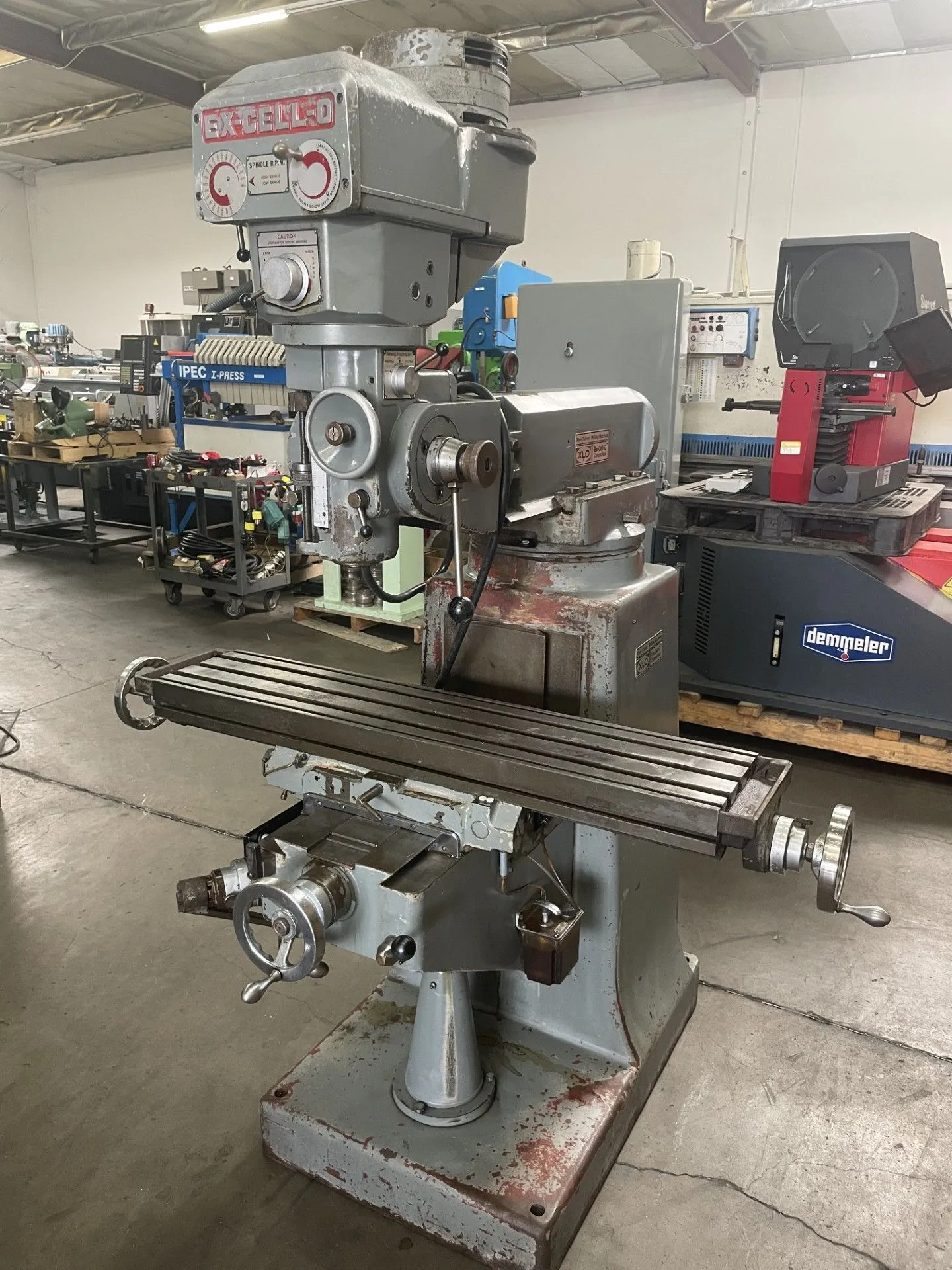

Excello 602 Vertical Mill 9" x 42" #7771 #1
SPECIFICATIONS:
Table Size: 9" x 42"
Longitudinal Table Travel: 30"
Cross Saddle Travel: 16"
Vertical Knee Travel: 16"
Spindle Speeds (Variable): 85 - 4,000 RPM
Spindle Quill Travel: 6"
Spindle Nose: R-8
Spindle Quill Feeds (3): 0.0015"- 0.003"- 0.006"
Ram Travel: 12"
Main Motor: 2HP, 220/440v, 3ph
EQUIPPED WITH:
Variable Speed Head
One Shot Lube System
