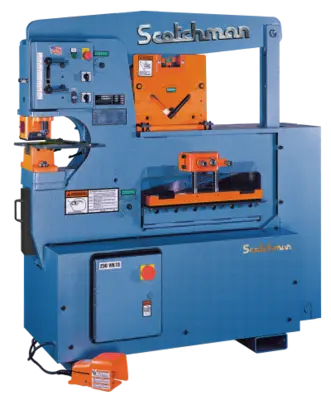

Scotchman 6509-24M Ironworker
Overview
If you are in the metal working or custom fabrication industry, the Scotchman 6509-24M is a must have for your shop. This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity (1? x 6?, 1/2" x 12? and 1/4? x 24?) and the largest angle shear capacity (6” x 6” x 3/8” and 5? x 5? x 1/2?) of any machine in its class. Combining this machine's large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. Like all of Scotchman Industries ironworkers, the 6509-24M is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
Specs
Rated on: 65,000 PSI Tensile and A 36 Mild Steel
Punching Capacity: 65 ton, 1-1/16" in 3/4"(58 mt, 27 mm in 18 mm)
Special Tooling: 4" Max. Dia. (100 mm Max. Dia. )
Throat Depth: 9"(225 mm)
Flat Bar Shear: 24" Length, 1" x 6", 3/4" x 10", 1/2" x 12", 3/8" x 16", 1/4" x 24"(600 mm, 25 mm x 150 mm, 18 mm x 250 mm, 12 mm x 300 mm, 10 mm x 400 mm, 6 mm x 600 mm)
Opt. Saber Blade: 1" x 6", 1/2" x 16"(25 mm x 150 mm, 12 mm x 400 mm)
Angle Shear 90°: 6" x 6" x 3/8", 5" x 5" x 1/2"(150 mm x 150 mm x 10 mm,125 mm x 125 mm x 12 mm)
Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8", 4" x 4" x 1/2"(75 mm x 75 mm x 10 mm, 100 mm x 100 mm x 12 mm)
Brake 12": 40 ton (36 mt)
Brake 24": 30 ton(27 mt)
Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2"(19 mm, 25 mm, 32 mm, 38 mm, 50 mm)
Rectangle Notcher: 2" x 2-1/2" x 3/8"(50 mm x 65 mm x 10 mm)
90° V. Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
Channel Shear: 2" to 5" Adj. (50 mm to 125 mm Adj. )
Offset Die Holder: Max. 40 ton(36 mt)
Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (67 spm)
Strokes per minute in light material: 3/4" Stroke [Punch Station] (22 spm)
Hydraulics: 2,600 psi (183 bar)
Motors Standard: 5 hp 3 ph, 230/460, 208/380/575 (3.73 kW)
Motors Optional: 5 hp 1ph, 230v(3.73 kW)
Dimensions: W-24", L-60", H-66"(W-57 cm, L-152 cm, H-168 cm)
Shipping Weight: 2,984 lbs(1,353 kg)
