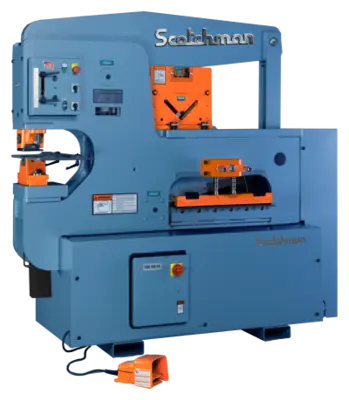

Scotchman 12012-24M Ironworker

Rated on: 65,000 PSI Tensile and A 36 Mild Steel
Punching Capacity: 120 ton, 1-1/2" in 1"(108 mt, 38 mm in 25 mm)
Special Tooling: 4" Max. Dia. (100 Max. Dia. )
Throat Depth: 12"( 300 mm)
Flat Bar Shear: 24" Length, 1" x 12", 3/4" x 20", 1/2" x 24"(600 mm, 25 mm x 300 mm, 18 mm x 500 mm, 12 mm x 600 mm)
Angle Shear 90°: 6" x 6" x 1/2"(150 mm x 150 mm x 12 mm)
Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8", 4" x 4" x 1/2"(75 mm x 75 mm x 10 mm, 100 mm x 100 mm x 12 mm)
Brake 12": 83 ton(75 mt)
Brake 24": 65 ton(59 mt)
Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2"(19 mm, 25 mm, 32 mm, 38 mm, 50 mm)
Rectangle Notcher: 2" x 2-1/2" x 3/8"(50 mm x 65 mm x 10 mm)
90° V. Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
Channel Shear: 2" to 6" Adj. (50 mm to 150 mm Adj. )
Strut Shear: Samples Required
Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (40 spm)
Strokes per minute in light material: 3/4" Stroke [Punch Station] (13 spm)
Hydraulics: 2,600 psi (183 bar)
Motors Standard: 5 hp 3 ph, 230/460, 208/380/575(3.73 kW)
Motors Optional: 5 hp 1 ph, 230v( 3.73 kW)
Dimensions: W-28", L-77", H-73" (W-71 cm, L-196 cm, H-185 cm)
Shipping Weight: 5,204 lbs (2,360 kg)
