USED 2019 KNELSON CONCENTRATORS KC-QS40MS

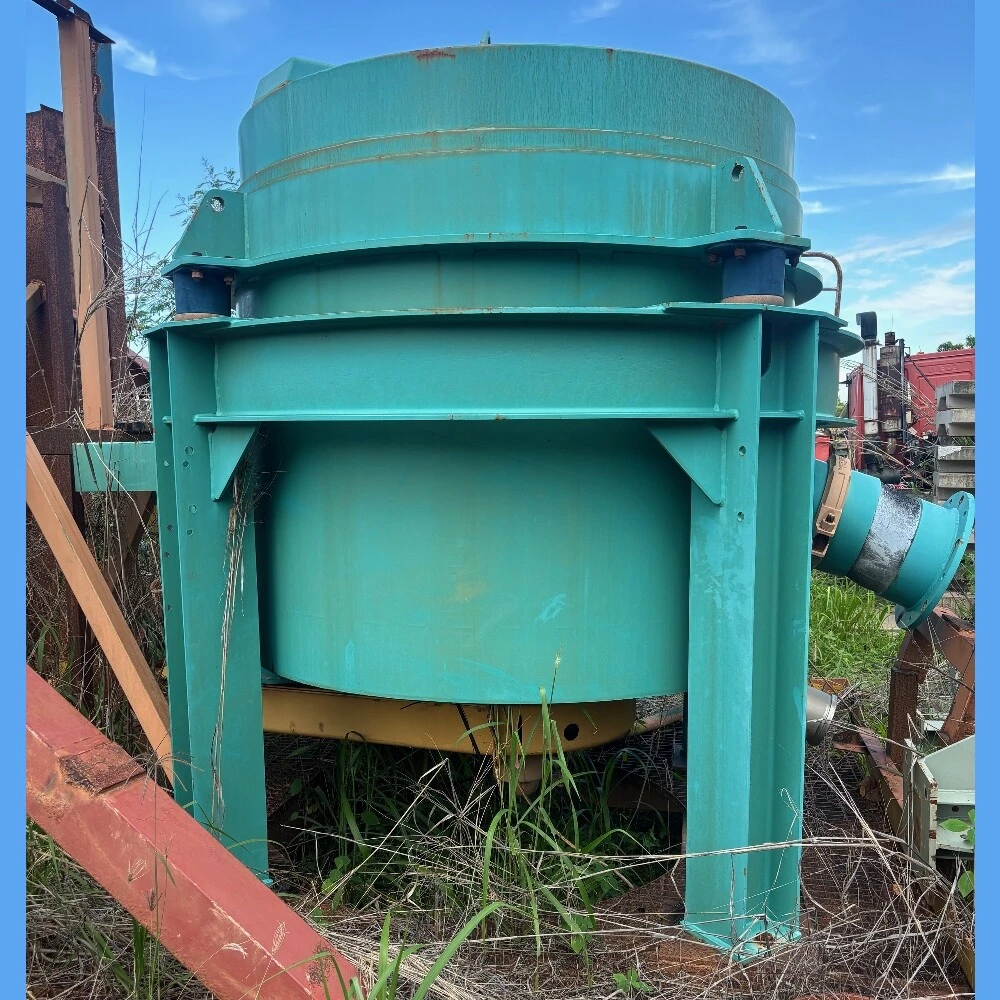

Knelson QS40 Concentrator

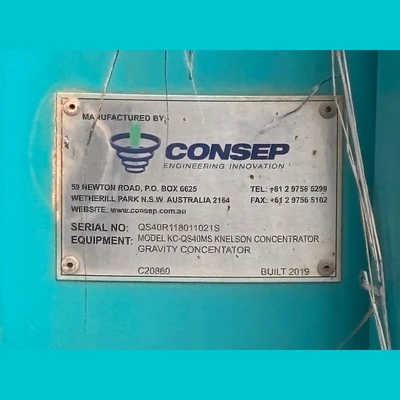

Make: Knelson Concentrators
Model: KC-QS40MS
Series: Quantum Series
Type: Centrifugal Concentrator
Style: Enhanced Gravity Concentrator
Year: 2019
Condition: Used Condition

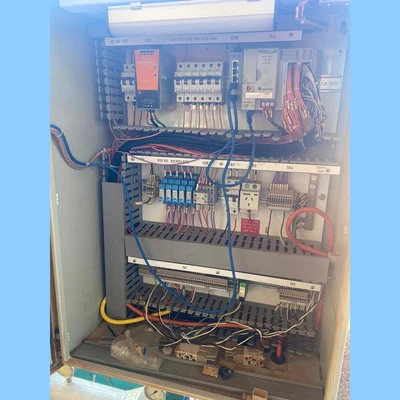

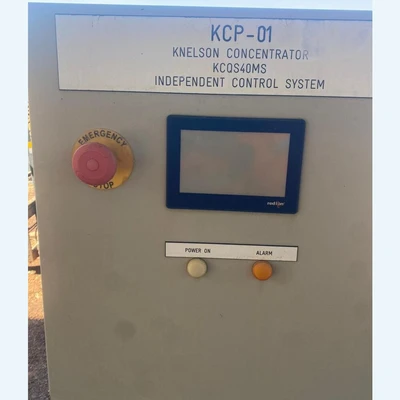

Control: ICS Automation System - KCP-01
General Model Specifications:
Maximum Feed Capacity: 275 TPH (250 tonnes/hr.) Solids
Maximum Total Volumetric Throughput: 1500 US GPM (340 m³/hr.)
Feed Size:
Maximum: 6mm (1/4")
Recommended: 1.7mm (1/16")
Feed Density: 0-75% Solids/Weight
Min Air Flow Required: 3ft³/min @ 90 PSI (5.1m³/hr. @ 600 kPa)
Concentrator Installation Weight: 7,300 lbs. (3,320 kg) - Not Including Piping

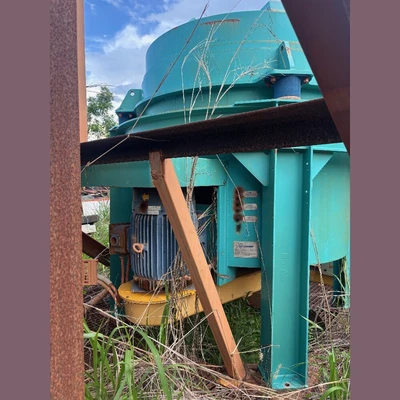

Motor: Electric 40-75HP (30-56kW)
Fluidization Water (G6 Cone): 185-270 US GPM (42-61m³/hr.)
Concentrate Weight (G6 Cone): 115-174 Lbs. (52-80kg)
G-Force Range (G6 Cone): 60-120 G's
Maximum Feed Capacity: 275 TPH (250 tonnes/hr.) Solids
Maximum Total Volumetric Throughput: 1500 US GPM (340 m³/hr.)
Feed Size:
Maximum: 6mm (1/4")
Recommended: 1.7mm (1/16")
Maximum: 6mm (1/4")
Recommended: 1.7mm (1/16")
Feed Density: 0-75% Solids/Weight
Min Air Flow Required: 3ft³/min @ 90 PSI (5.1m³/hr. @ 600 kPa)
Concentrator Installation Weight: 7,300 lbs. (3,320 kg) - Not Including Piping
Motor: Electric 40-75HP (30-56kW)
Fluidization Water (G6 Cone): 185-270 US GPM (42-61m³/hr.)
Concentrate Weight (G6 Cone): 115-174 Lbs. (52-80kg)
G-Force Range (G6 Cone): 60-120 G's
Dimensions:
Width: 98in (2488mm)
Depth: 86in (2184mm)
Height: 91in (2300mm)
Width: 98in (2488mm)
Depth: 86in (2184mm)
Height: 91in (2300mm)
Location: Australia
