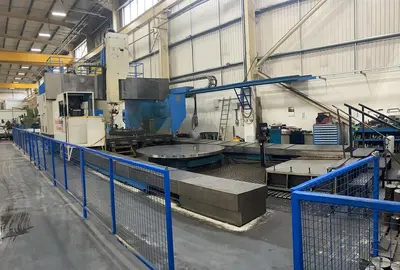

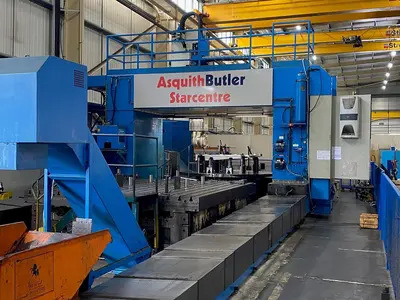

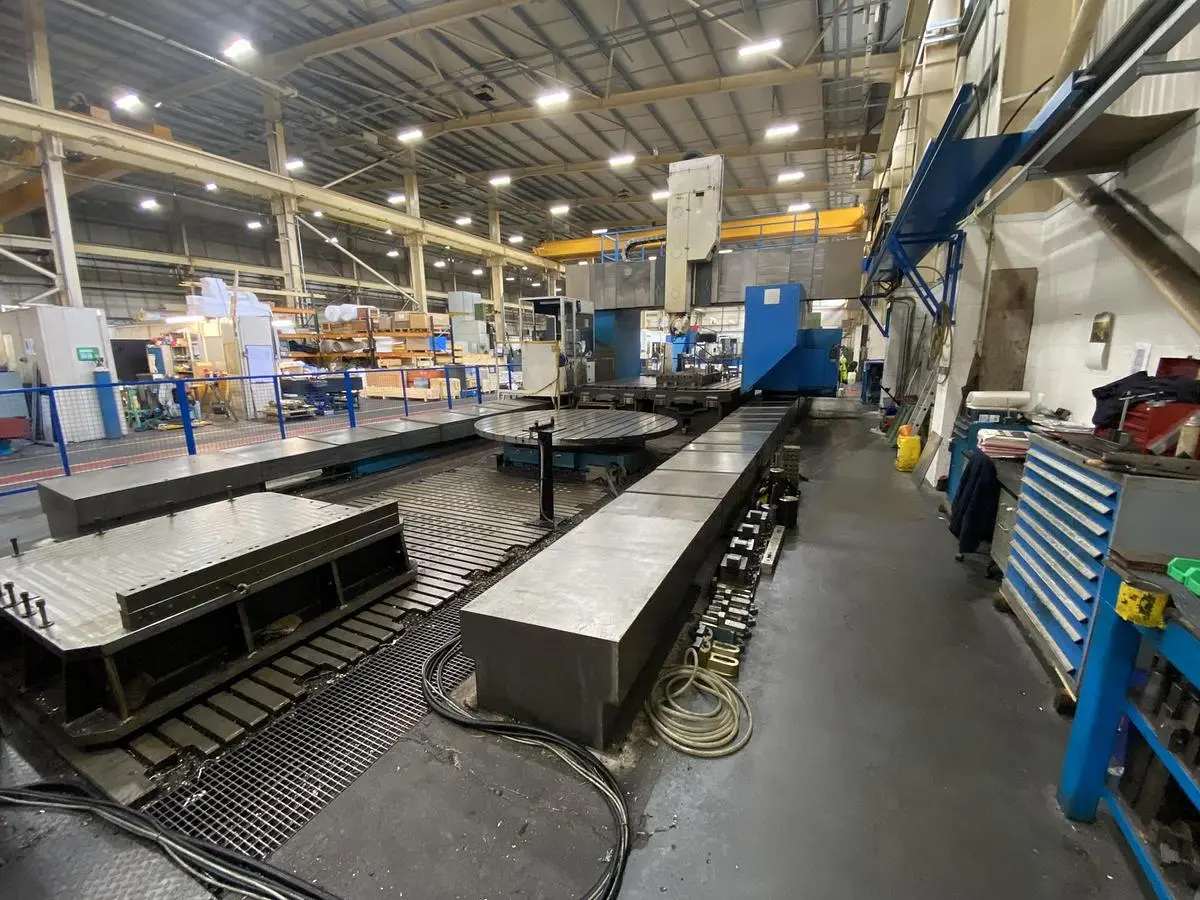

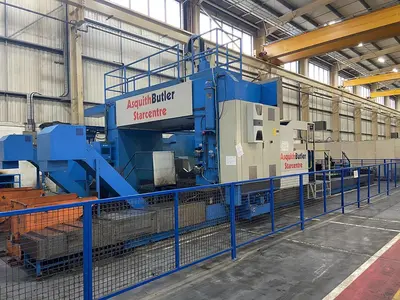

USED 1998 ASQUITH BUTLER STARCENTRE 250

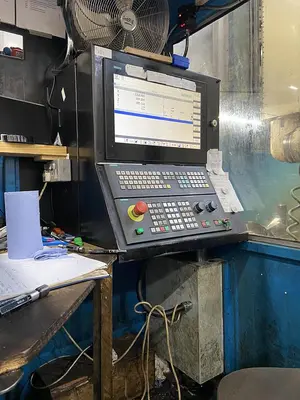

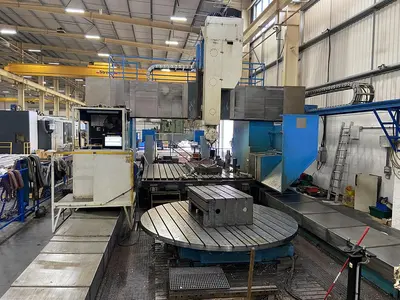

MECHANICALLY UPGRADED & RETROFITTED WITH SIEMENS 840DSL CONTROL IN 2016TRAVELLING GANTRY FIXED BED CNC MILLING CENTRE WITH ORTHOGONAL AUTOMATINC INDEXING MILLING HEAD, 60 STATION ATC & EIMELDINGEM 2000 / 3000 MM NC ROTARY TABLESIEMENS 840DSL CNC CONTROL SYSTEMINTEGRATED EIMELDINGEN ROTATING MILLING TABLE CAP 2000 MM/10 TONNES WITH 3000 MM SUB TABLEADDITIONAL HEIGHT INCREASER BASE FOR THE EIMELDINGEN ROTARY TABLE30.0 KW, 2.5 DEG x 2.5 DEG, 3,000 RPM, OIL COOLED AUTOMATIC INDEXING HEAD60 STATION AUTOMATIC TOOLCHANGERGUARDING SYSTEM WITH SIDE FENCES.TWIN CHIP CONVEYORS.COLUMN MOUNTED OPERATOR STATION INCORPORATING OPERATOR’S PENDANTFLOOR PLATE & ADDITIONAL BOX TABLES

Manufacturer: ASQUITH BUTLER
Model: Starcentre 250
Year: 1998
Condition: Used
Stock Number: 11224
Between columns: 3,850 mm
Spindle speeds: 3,000 rpm
X axis travel: 10,000 mm
Y axis travel: 3,000 mm
Z axis travel: 1,350 mm
Rapid Feed X/Y/Z: 16,000 mm/min
