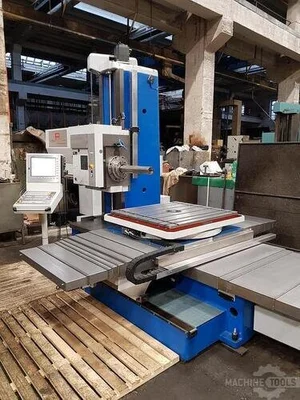

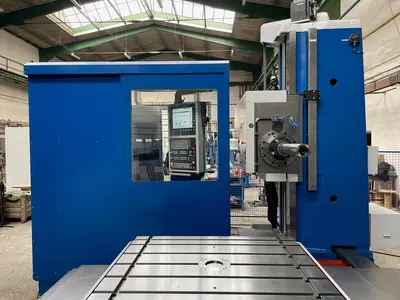

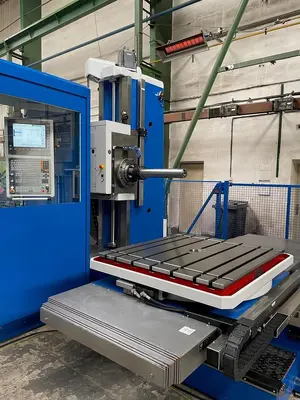

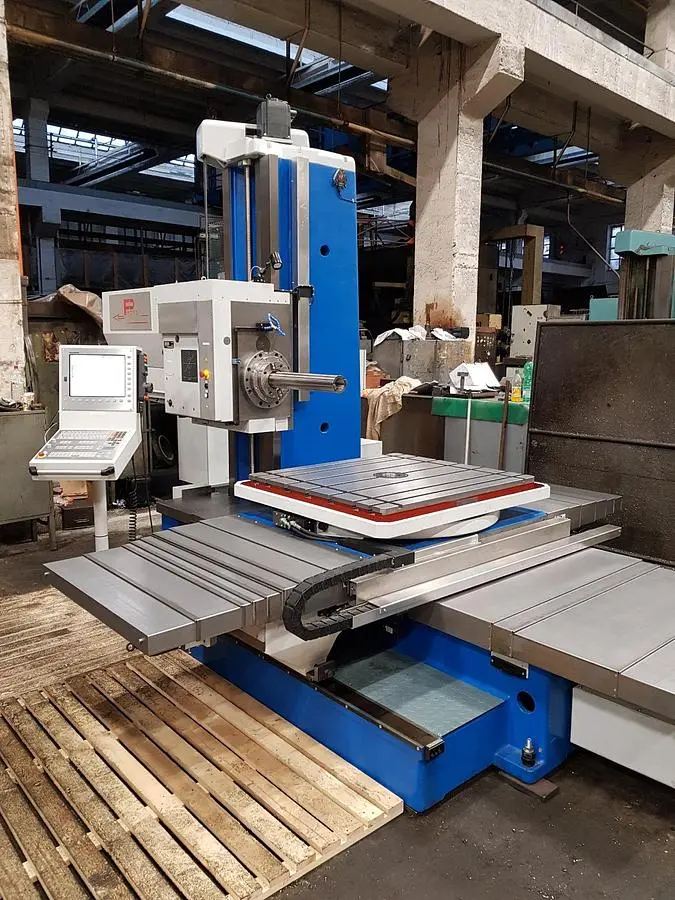

USED 2025 TOS VARNSDORF WH-10
Overview
CNC control system iTNC 620 Heidenhain Gen3

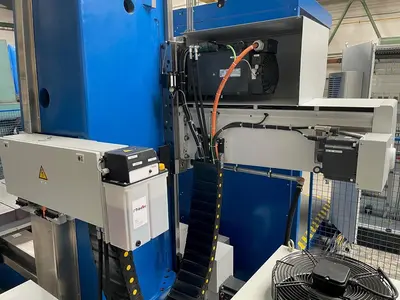

Servo-motors Siemens 1FKZ 100…(5 pcs.)
Spindle motor 1PH8135... - 22kW
Converter Heidenhain UM114D
Linear scales Heidenhain for X, Y and Z axes
Encoder Heidenhain ROD 480 for rotary table
Encoder Heidenhain TTR ERM for spindle - Oriental stop

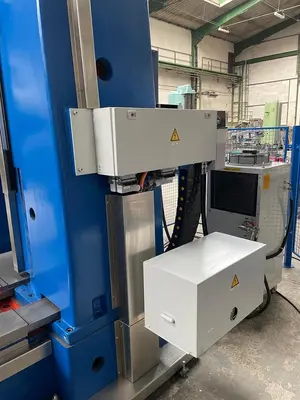

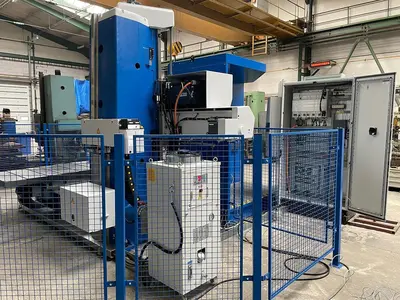

Control cabinet from Ritall with cooling unit
Wiring and modern electrical components
End-limit switches Balluff
Rotational control panel
Workplace lighting
Hardened guide surfaces on all axes
Biplast-V lining for the guide ways counter surfaces
Geometric accuracy according to the accuracy protocol TOS Varnsdorf WH 10
Sliding working spindle with diameter of 100 mm, spindle bearings - FAG, SKF
Hydraulic tool clamping set 22kN - Ott-Jakob
Headstock with cooling circuit - reTOS Varnsdorf
Ball screws on the X, Y, Z and W axes - KSK Kurim
Rim and pinion for precise rotary table positioning - reTOS Varnsdorf
Hydraulic system (unit, pumps, hoses, fittings) - Baseco
Rotary table reinforcement controlled by CNC system
Central lubrication system controlled by CNC system - Tribotec
Telescopic covers (X and Z axes)
Specs
Manufacturer: Tos Varnsdorf
Model: WH 10
Year: 2025
Condition: Used
Stock Number: 11225
Spindle diameter: 100 mm
X axis travel: 1,250 mm
Y axis travel: 1,100 mm
Z axis travel: 1,000 mm
Spindle speeds: 2,500 rpm
Table dimensions: 1,000 x 1,000 mm
Table capacity: 3 Ton
W axis spindle stroke: 630 mm
Feed range: 4 - 6,000 mm/min
Spindle taper: ISO 50
Main motor (S1/S6 - 40%): 22 / 34 kW
Spindle torque (S1/S6 - 40%): 2173 / 3250 Nm
Total power consumption: 50 kVA
Machine weight: 13 Ton
