USED 2022 OKUMA U4000-2SWX1500

Equipped With

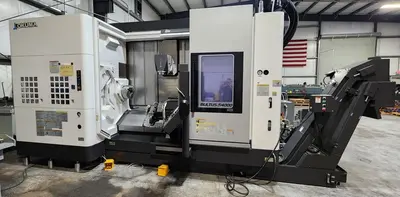

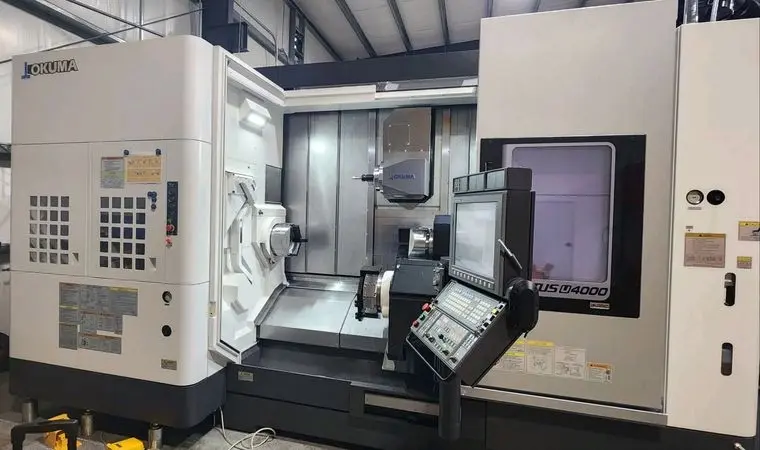

Okuma Multus U4000-2SWx1500 Multitasking CNC Turning Center
New 2022
The 2022?Okuma?Multus?U4000-2SW x 1500 Multitasking CNC Turning Center is a full-featured multi-axis turning centre equipped with dual spindles, twin turrets including a Capto C6 live-tool upper turret, and a static lower turret, all controlled via the OSP-300 CNC system. It provides 27.36-inch X-axis, 62.99-inch Z-axis travel, 60-inch distance between centres, and a 12000?RPM milling spindle for high-speed, precision machining, alongside Y-axis, C-axis, and B-axis (–30° to +210°) for complex contouring and milling tasks.
Compared to simpler multitasking machines, this U4000 model elevates productivity with simultaneous dual-spindle processing, extensive tool capacity, broad-swing B-axis milling, and full 5-axis contouring capabilities—driving high throughput, reduced setups, and exceptional flexibility in a compact cell
SPECIFICATIONS:
X - Travel                                            27.36"
Z - Travel                                            62.99"
Distance Between Centers                 60"
Max. Swing Over Bed                         25.59"
Max. Turning/Cutting Length              59.16"
SPINDLES:
Bar Capacity                                      3.58"
Chuck Description                             Schunk THW3-315 Quick Jaw Change Chuck
Spindle Bore                                     5.51"
S[omd;e Speed                                 4,200 RPM
Spindle Motor                                   30 HP
Spindle Nose                                    A2-8
SECOND SPINDLE:
Total Spindles                                  2
Sub-Spindle                                     Equipped With:
Second Chuck Description             Schunk THW3-315 Quick Jaw Change Chuck
Second Spindle Bore                      3.15"
Second Spindle Speed                   3,800 RPM
TURRET:
Total Position                               80
Turret Options                              Upper Turret: Capto Co
                                                     Lower Turret: Static Toolling
Twin Turret                                   Equipped With
Second Turret Positions             12
Live Milling Max. RPM               12,000 RPM
Control:
Additional Control Options:                   Collision Avoidance System (Cas)
PC Advanced One Touch IGF Conversational Programming
Lathe Tool Index Function - Multi Edge
12 Position Negative Tool Radius Compensation
Auto Gauging
Y-Axis Gauging w/ Slope Gauging
(8) Sets Spare M-Codes
Machine Advanced One Touch Igf Conversational Programming
Steady Rest Enable/Disable Switch
Variable Spindle Speed Threading, Left (Main)
Thread Phase Matching
Feed Hold During Threading
Inverse Time Feed Function
 Transformer;Mist Collector
Additional Options:
Additional Machine Specs: Travels:
- C-Axis: 360,000°
- Y-Axis: 11.81" (+/-5.91")
- B-Axis: -30 / +210°
- B-Axis (Upper Turret): 0.001°
Left Spindle:
- BB: 3,000 RPM
- BB Spindle (A2-11) with F2511 Cylinder and Draw Tube - Main Turret
- Liquid Cooled Integral Spindle
Right Spindle:
- Right: 3,800 RPM
- Spindle: SR-1670 Hydraulic Cylinder and Draw Tube Dual Function - Upper Turret
- Liquid Cooled Integral Spindle
High Pressure Coolant Pump with 50-Gal Reservoir
Type B, Niagara Shower Coolant
Royal Mist Collector Package FX-1200
Touchsetter Auto for 2 Saddle
Multi-Tab Transformer (100kva)

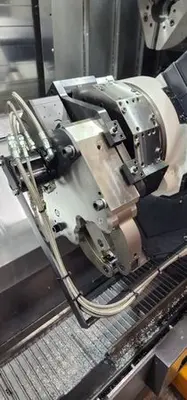

Steady Rest Package to Mount to Lower Turret: Slux-Z-3 (1.97 - 7.88" Capacity)
Step Stool Grate in Conveyor for Operator
Coolant Types:                                              High Pressure Coolant
High Pressure coolant PSI                           1,000 PSI
Chip Removal                                               Chip Conveyor
Probe Make/Model                                       Renishaw RMP600 RMI-Q
