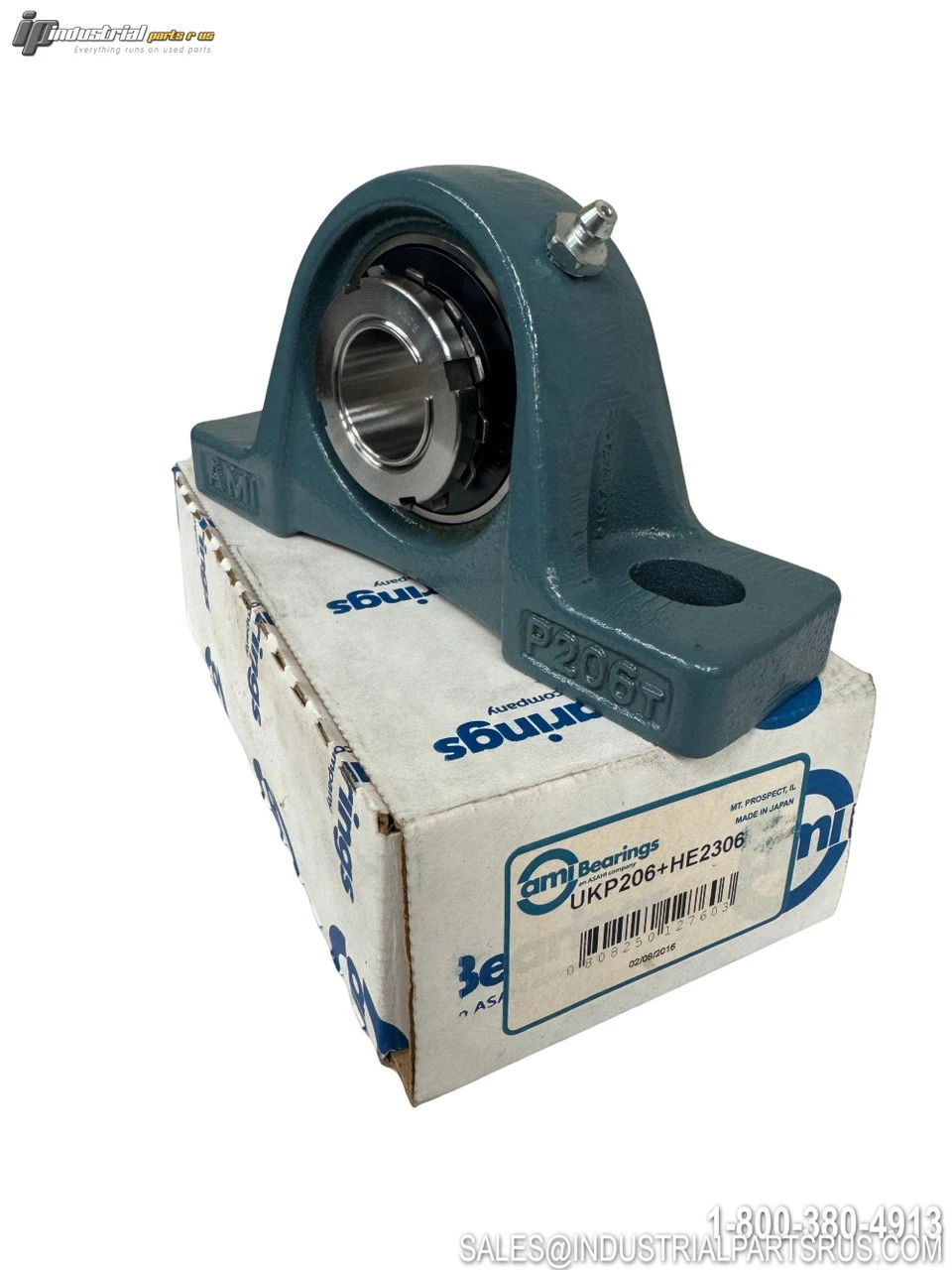

USED AMI UKP206-HE2306

The AMI UKP206-HE2306 is an adapter sleeve locking pillow block bearing unit designed for standard duty industrial applications. This unit features a cast iron housing with chrome steel bearing insert and accommodates a 1-inch shaft diameter. The adapter sleeve locking mechanism provides secure shaft mounting and easy installation.
Specification
Value
Brand
AMI
Model/Part Number
UKP206-HE2306
Bore Diameter
1.000 in
Housing Material
Cast Iron
Mounting Type
2-Bolt Base
Overall Height
3.2813 in
Overall Length
6.5000 in
Base Width
1.8750 in
Overall Width
1.8750 in
Base To Bore Centerline
1.6875 in
Bolt Center To Center Length
4.4375 to 5.0625 in
Bolt Size
1/2
Locking Device
Adapter Sleeve
Duty Type
Standard Duty
Seal Type
Contact Seal with Slinger
Radial Dynamic Load Capacity
4410 lbf
Radial Static Load Capacity
2540 lbf
Expansion Type
Non-Expansion Bearing (Fixed)
Lubrication Type
Lubrication Fitting
Series
UKP200+HE2000
Replacement Bearing
UK206+HE2306
Number Of Mounting Holes
2
We warranty all items for 30 days from date of purchase.
