NEW AMI UKP206+H2306

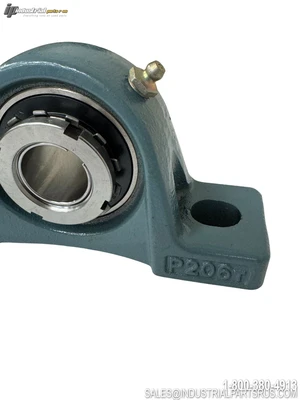

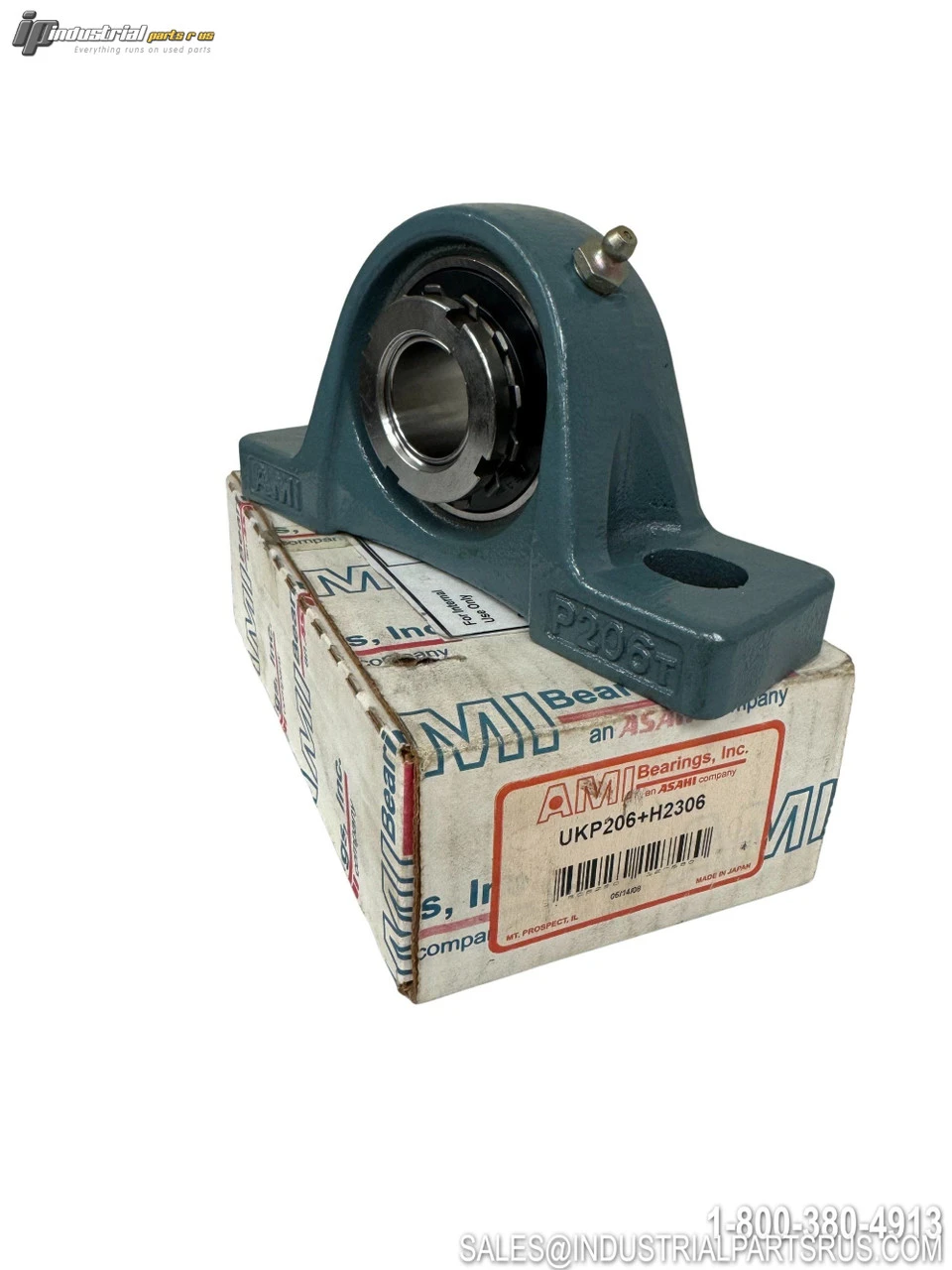

The AMI UKP206+H2306 is a pillow block bearing unit featuring a 25mm bore with adapter sleeve locking mechanism. This bearing unit combines a cast iron housing with a chrome steel insert for reliable shaft support in industrial applications. The wide inner ring design provides enhanced load distribution and extended service life.
Specification
Value
Brand
AMI
Model/Part Number
UKP206+H2306
Product Type
Pillow Block
Bore Diameter
25mm
Housing Material
Cast Iron
Insert Material
Chrome Steel
Locking Type
Adapter Sleeve
Insert Bearing
UK206+H2306
Overall Length
165mm
Overall Height
83mm
Base Width
48mm
Shaft Centerline
42.9mm
Bolt Size
M14
Bolt Center Distance
113-129mm
Dynamic Load Rating
2000 kgf
Static Load Rating
1150 kgf
Seal Type
Contact Seal with Slinger
Lubrication Fitting
1/8-27 NPT
Inner Ring Width
Wide
Duty Type
Standard Duty
Series
UKP200+H2000
Weight
3.38 lbs
We warranty all items for 30 days from date of purchase.
