| Spindle Hole Dia | 1.26" | 32.004 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # Axis | 6 | 6 |
| Control | CNC (CINCOM) | CNC (CINCOM) |
| Dimensions | 120″ x 61″ x ″ High | 120″ x 61″ x ″ High |
| Weight | 8800 lbs Approx. | 8800 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Equipped With:

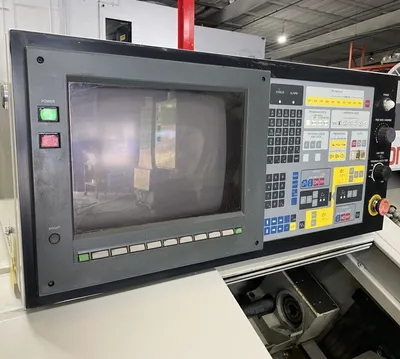

Cincom 6 Axis CNC Control
Long Parts Capable
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter: 1.26″ (32 mm)
Max Turning Length: 12.6″ (320 mm)
Max Bar Capacity: 1.26″ (32 mm)
Tool Capacity: 20

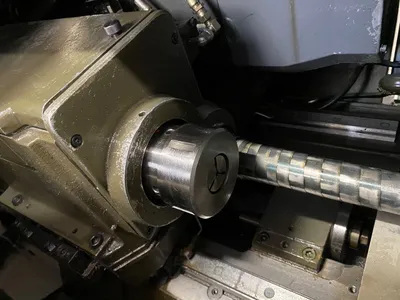

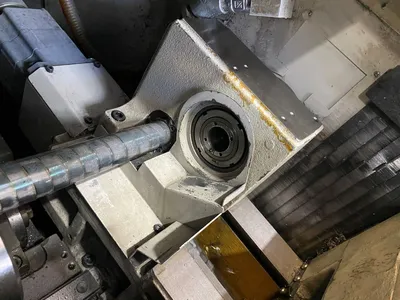

Spindle:

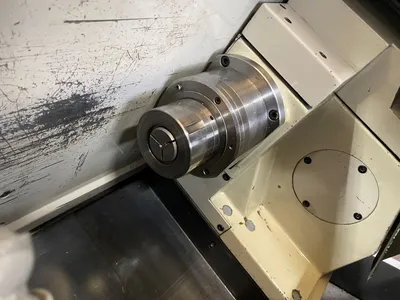

Main Spindle Index: 0.01 Degree (C-axis control)
Main Spindle Bore: 1.26″ (32 mm)
Main Spindle Speed: 6,000 RPM
Main Spindle Motor: 7.5 HP
Back Spindle Speed: 5,000 RPM
Back Spindle Motor: 5 HP

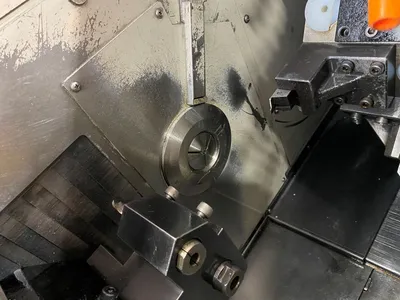

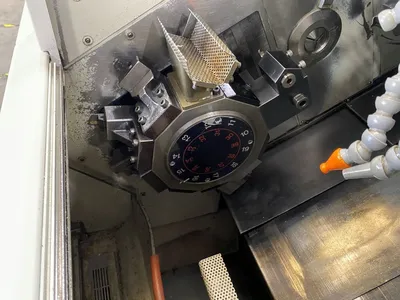

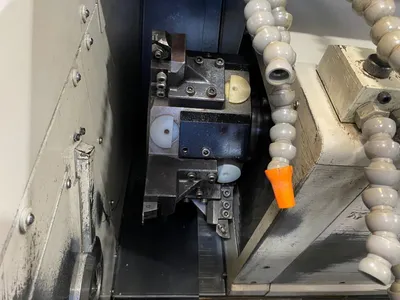

Turret:
Upper Turret Capacity: 10 Stations
Lower Turret Capacity: 10 Stations
Live Milling Speed: 5000 RPM
Live Milling Motor: 5 HP
Max Drilling Capability: 25/64″ (10 mm)
Max Tapping Capability: M8 x P1.25
General:
Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 120″ x 61″ x ″ High
Weight: 8800 lbs Approx.

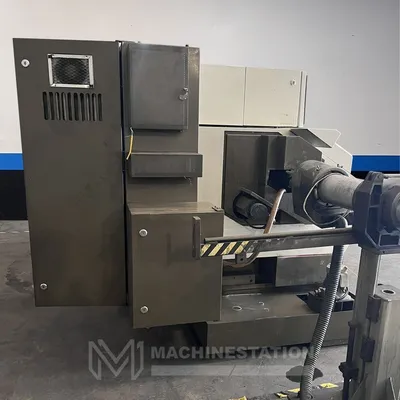

LNS Hydraulic Bar Feeder

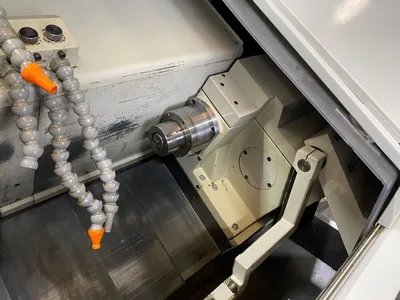

Sub Spindle
C Axis Capable
Twin Live Tool Turrets
Part Catcher
