Mazak FH-4800 – 2001

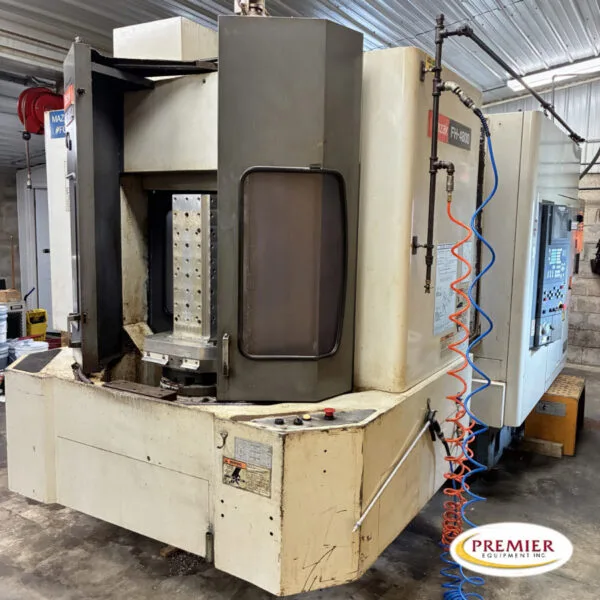

Mazak FH4800 Horizontal Machining Center

Pallet Size 15.75″ x 15.75″
Pallet Load Capacity880 lbs
Pallet Indexing .001 Degree
Distance from Spindle Center to Top of Pallet1.97” – 25.98”
Distance from Spindle Nose to Pallet Center5.91” – 27.95”
X Axis Travel22.04″
Y Axis Travel24.02″
Z Axis Travel22.05″
Speed12,000 RPM
Spindle TaperNo. 40
Rapid Traverse Rate1968 IPM
Tool TaperCAT #40
Tool Magazine Capacity40 ATC
Max. Tool Length / Weight14.17” / 26.4 lbs
Tool Change Time (Tool to Tool) / (Chip to Chip)1.3 s / 3.0 s
Spindle Motor30 HP
Required Floor Space105.5″ x 163.8″ x 103.6″
Weight20,723 lbs

Mazatrol Fusion 640M CNC Control
ATLM

FUll Rotary
