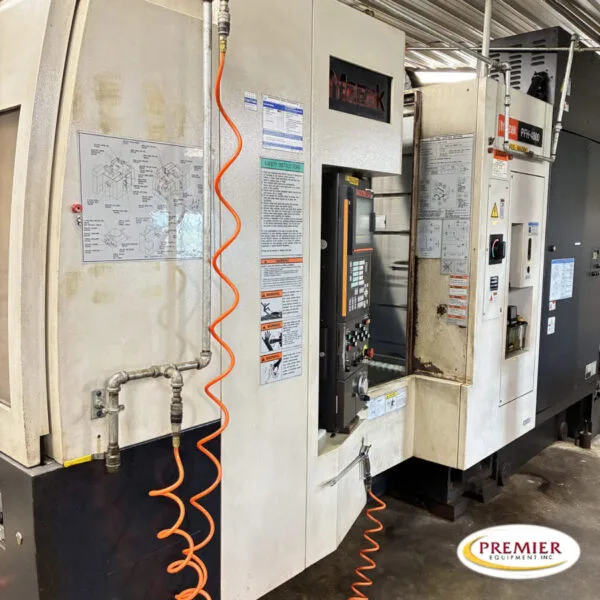

Mazak PFH4800 CNC Horizontal Machining Center
Specifications
Pallet Size………………………… 15.75″ x 15.75″
Floor Space Required………………… 95.7″ x 211.4″
Machine Height from Bottom of Base……. 110″
Total Power Required (Machine Only)…… 70 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will
Be Greater.
Machine Weight……………………… 22,040 lbs.
TRAVELS
X-Axis…………………………….. 22.05″
Y-Axis…………………………….. 24.8″
Z-Axis…………………………….. 23.62″
Distance from Spindle Center to
Top of Pallet……………………. 3.15″ – 28.0″
Distance from Spindle Nose to
Pallet Center……………………. 2.75″ – 26.37″
WORKPIECE SIZE
Maximum Table Load………………….. 880 lbs.
Maximum Workpiece Height…………….. 27.95″
With Through The Pallet Hydraulics…. 27.17″
Maximum Workpiece Diameter…………… 24.8″
SPINDLE
Spindle Nose……………………….. CAT #40
Spindle Speed Increment……………… 1 RPM
Number of Ranges……………………. 2
Tool Clamping Force…………………. 2,314 ft./lbs.
Spindle Bearings Front (Number/type)….. 2 Sets Ang Contact
Spindle Bearings Rear (Number/Type)…… 2 Sets Ang Contact
Spindle RPM………………………… 12,000?
AUTOMATIC TOOL CHANGER
Magazine Capacity…………………… 40
Equipped With
MAZATROL FUSION 640M
40 Tool Chain Magazine
1 Degree
