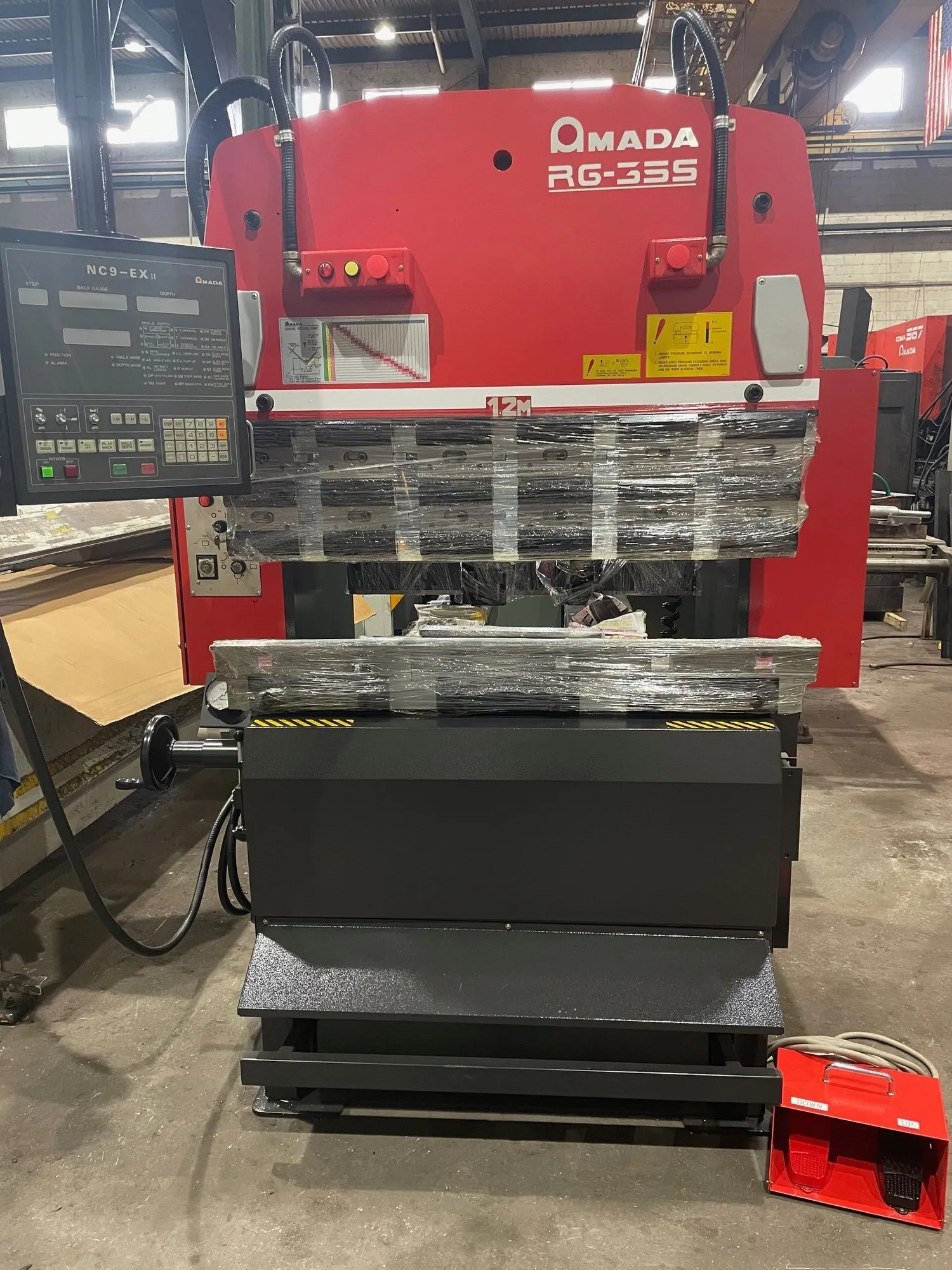

USED 1988 AMADA RG 35 EX

Amada Press Brake Model Rg 35 EXII

Model RG 35S EX-II
Maximum Tonnage 38.5 Tons
Maximum Bending Length 49.2"
Maximum Stroke Length 3.937"
*Open Height 18.50"(standard is 14.57")
Throat Depth 7.87"
Distance Between Side Frames 40.16"
Ram Speed: Approach 2.16"/sec.
Bending .37"/sec.
Return Speed 1.57"/sec.
Electrical Requirements 208/3/60
CNC Control NC9EX-II

Designed specifically to enhance computer control.

Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.

Fully adjustable two speed operation.

Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.

Roller guiding system eliminates all ram/guide freeplay and wear.

Tonnage limiter and gauge protect tooling and increase safety.

Exclusive handwheel depth control simplifies set-up and reduces scrap.

Sectionalized punch holders allow deep box forming and can create windows for long return flanges.

Smooth throttle action pedal increases operator control and safety.

Treadle safety shield.

Exclusive tool holders simplify procedures and reduce tooling set-up time.

NC9EX-II Amada 3 Axis CNC Control
