| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 35" | 889 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Taper | R-8 | R-8 |
| Control | CNC | CNC |
| Dimensions | 86″ x 67″ x 84″ | 86″ x 67″ x 84″ |
| Weight | 2450 lbs | 2450 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

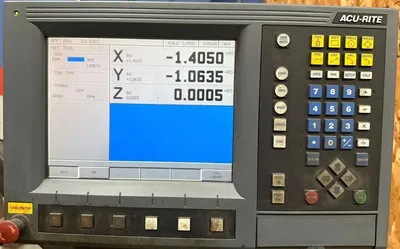

ACU-RITE 3-Axis CNC Control
Hardened and ground table surface, saddle, and knee
60 – 4200 RPM Variable Spindle Speed
90° | 45° Head Movement (Right or Left | Front or Back)
3 HP Spindle Motor
Capacity:
Maximum Table Longitudinal Travel: 35″
Maximum Table Cross Travel : 12″
Maximum Knee Travel: 15″
Maximum Ram Travel: 14.5″
Maximum Spindle Travel: 5″
Head Movement (Right or Left | Front or Back): 90° | 45°
Spindle to Column (min-max): 6-3/4″ – 18-1/2″
Spindle Nose to Table (min-max): 3-1/4″ – 18-1/4″
Table:
Working Surface: 9″ x 42″
T-Slot Number, Size: 3, 5/8″
Spindle:
Spindle Taper: R-8
Spindle Motor: 3 HP
Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM
Quill Down Feed Rates: .0015 – .003 – .006 (IPR)
Diameter of Quill: 3-3/8″
Number of Spindle Speeds: Mechanical Variable Speed
Head Tilt (Right to left each way): 90 Degrees
Head Tilt (Front and Back each way): 45 Degrees
General:
Overall Machine Dimensions (WxDxH): 86″ x 67″ x 84″
Electrical: 220/440V, 3 phase, 60 Hz
Net Weight (approx.): 2450 lbs
