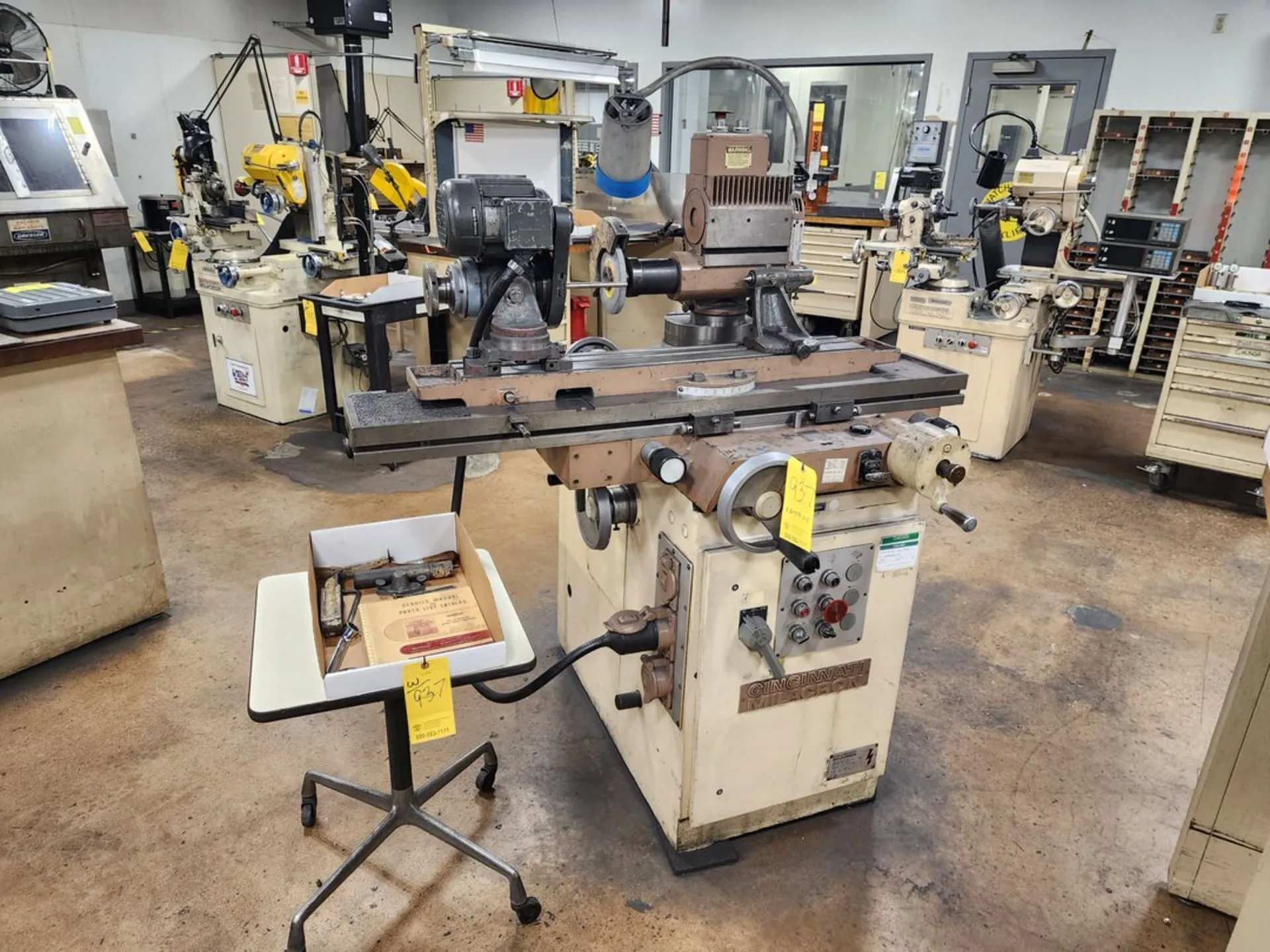

USED 1978 CINCINNATI MILACRON 2MT

1978 Cincinnati-Milacron 2MT Universal Tool & Cutter Grinder. Features include tilting wheelhead, dual controls, and 2-speed spindle. Equipped with radius attachment and workhead. Dimensions: 3' x 38"D x 5'H. Weight: 3,000 lbs, original paint.

CAPACITY:
SWING OVER TABLE DIAMETER ......................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ...... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD .............. 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER ................... 10"
FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. .. 18"
SAWS ON TABLE DIAMETER ............................ 48"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER .......... 10"

RANGE:
TABLE SIZE ........................................ 6" X 36"
LONGITUDINAL TABLE TRAVEL ......................... 16"
CROSS MOVEMENT OF TABLE ........................... 10"
TABLE SWIVEL ...................................... 180 DEG.
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ...... 5"
FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) ... 2"
TABLE GRADUATIONS IN CENTER, IN DEGREES ........... 90 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ....... 10-1/2"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ......... 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER .............. 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ......... 360 DEG.

SPINDLE SPEEDS:
6" WHEEL, SURFACE SPEED 6,022 FT./MIN. ............ 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. ............ 6,425 RPM

APPROXIMATE MACHINE WEIGHT ...................... 3,000 LBS
APPROXIMATE DIMENSIONS ............................ 3' X 38"D X 5'H

MACHINE FEATURES:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR

CINCINNATI MILACRON RADIUS ATTACHMENT
CINCINNATI MILACRON WORKHEAD
TAILSTOCKS

** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
