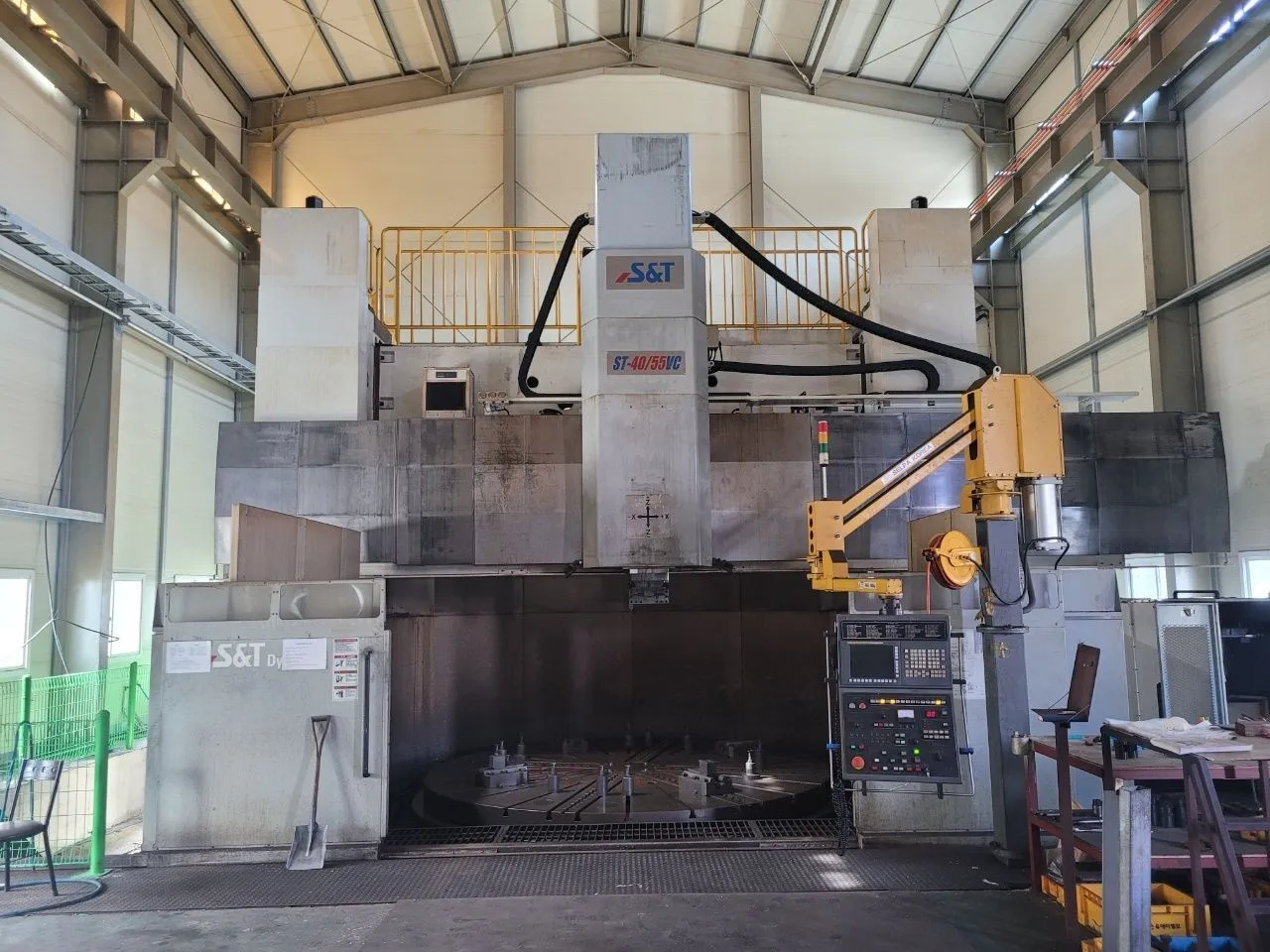

USED 2012 S&T DYNAMICS ST-40/55VC
Overview
Description
Live Milling, C axis 0.001 degree, 16 Position ATC, Angle head, Chip conveyor, Fanuc 31iA control
Specifications
| Chuck / Table Dia | 4,000 mm | 157.48" |
|---|---|---|
| Swing | 5,500 mm | 216.54" |
| Work Ht-U/R | 4,000 mm | 157.48" |
| Vertical Travel X | 4000 mm | 157.48" |
| Power | 60 hp | 44.7 kW |
| Control | CNC (Fanuc 31I) | CNC (Fanuc 31I) |
S&T ST-40/55VC CNC Vertical Milling & Turning Center (2012)
Table Diameter
4000 Mm
Maximum Swing
5500 Mm
Height Under Rail
2600 Mm
X-Axis Travel Of Ram
2900 Mm
Z-Axis Ram Stroke
1500 Mm
Ram Cross Section, Square
400 Mm X 400 Mm
Milling Spindle Speed
15 - 1,500 Rpm
Taper In Ram
#50
Milling Spindle Motor
22 Kw /25 Kw
Table Speeds, Max
60 Rpm
Table Roation, C-Axis
.001°
Table Table Capacity
45 Ton
Table Motor
60 Kw / 75 Kw
Machine Footprint
11151 Mm X 9906 Mm
Machine Height
8890 Mm
Machine Weight, Approx.
139706 Kg
Equipped With
Live Milling, C axis 0.001 degree, 16 Position ATC (8)/(8) Milling , Angle head, Chip conveyor, Fanuc 31iA control, Through Spindle & Flood Coolant, Fanuc Servo Motors & Drives on All Axis
