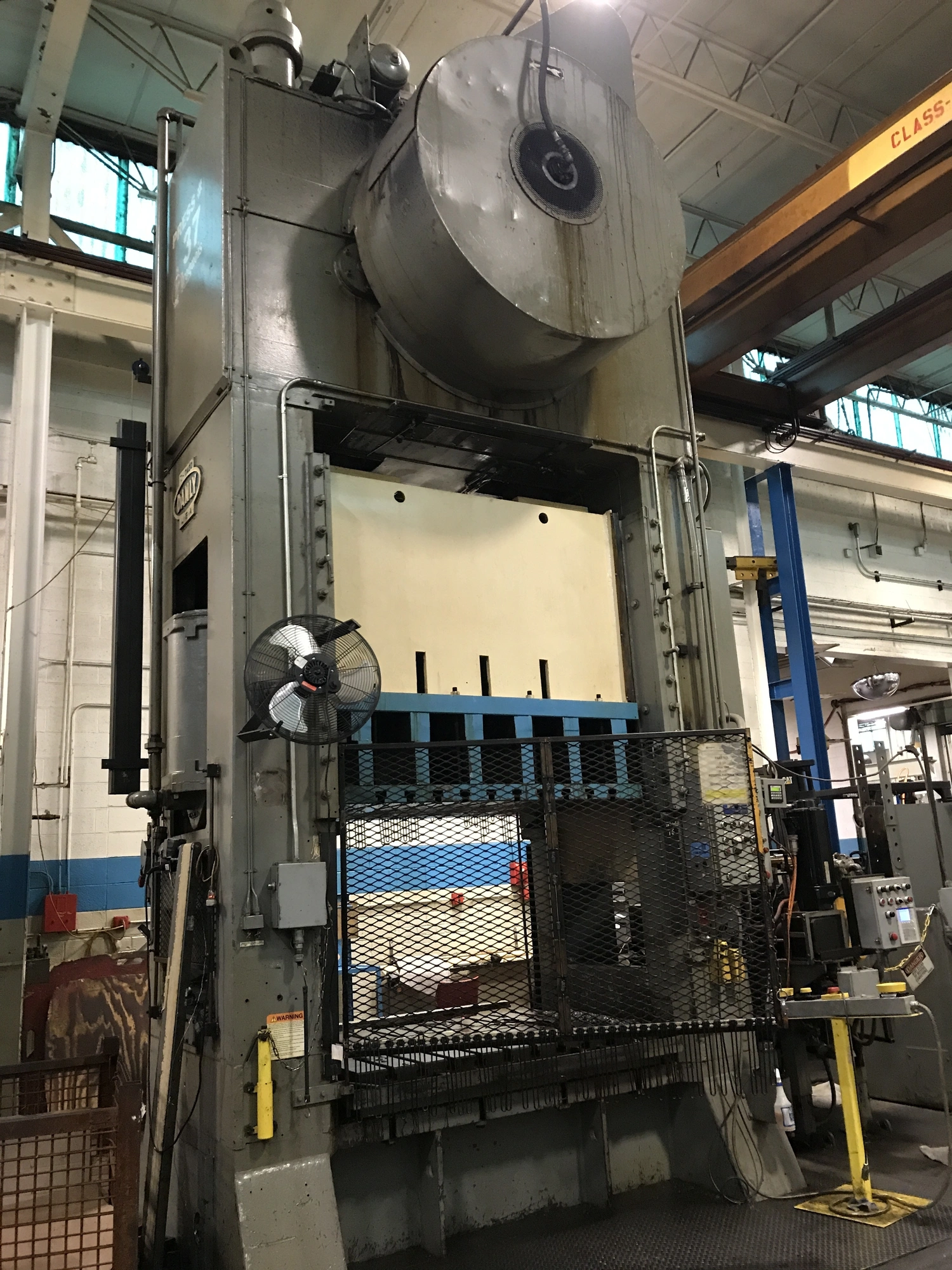

DANLY SS2-500-72-48, 500 Ton Straight Side Double Crank Press, 1955. Features 72" L-R x 48" F-B bed, 16" stroke, 60" shut height, 25 spm speed, and 34" windows. Includes air clutch & brake, and a 4.5" T-slotted bolster.
| Ton | 500 T | |
| Bed L-R | 72 in | |
| Bed F-B | 48 in | |
| Stroke | 16 in | |
| Shut Height | 60 in | |
| Min Speed | 25 spm | 25 strokes/min. |
| Windows | 34 in |
Capacity: 500 Ton
Stroke: 16”
Shut Height Over Bed: 60 1/2” (with a 12” Riser)
Slide Adjustment: 9”
Bed Area: 72” L-R x 48” F-B
Speed: 25 SPM
Windows: 34” Wide x 18” High
Equipped With:
Air Clutch & Brake
4 1/2” T-Slotted Bolster
