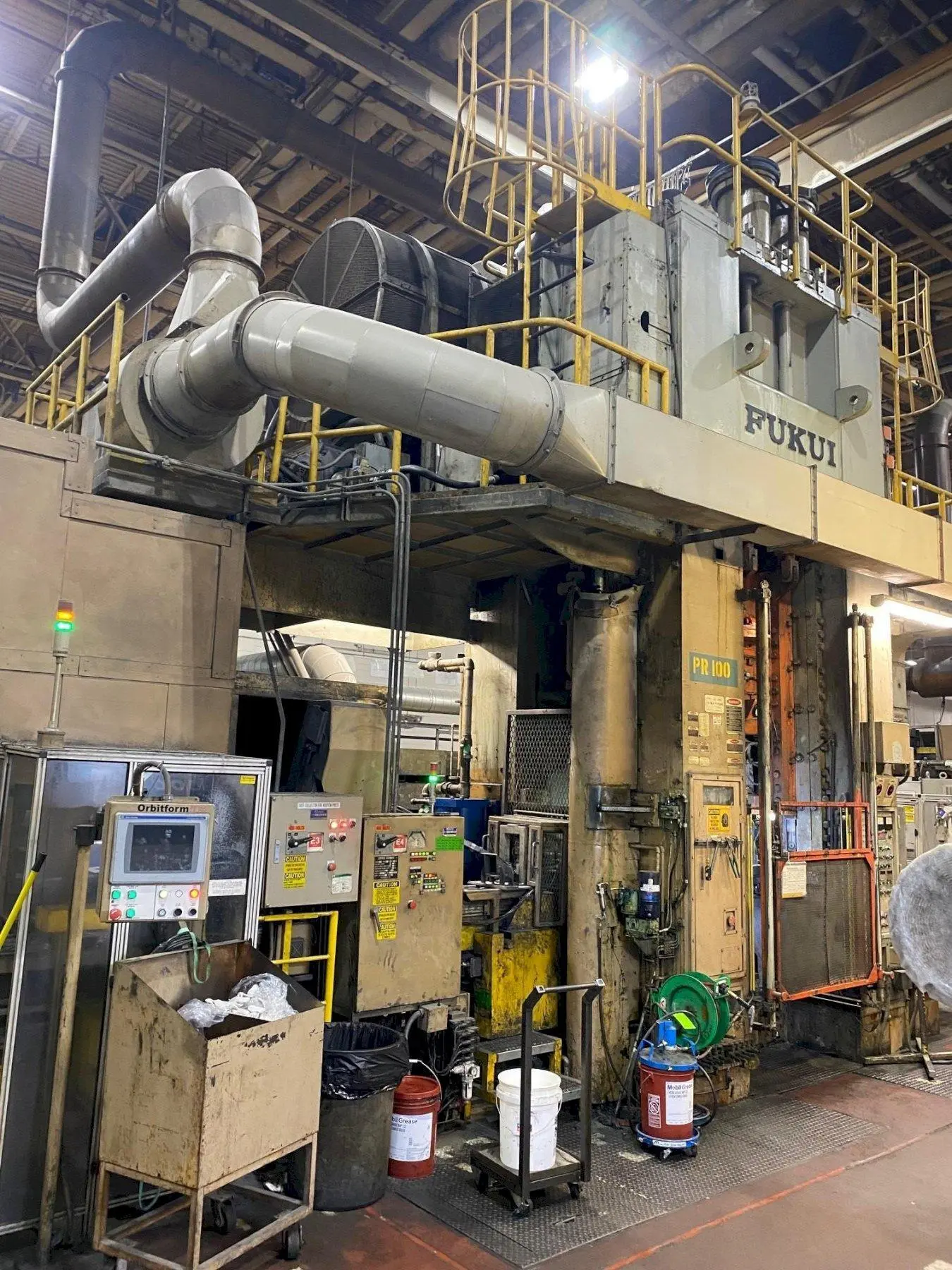

USED 1991 FUKUI MSF 1000

FUKUI MSF 1000 (1991) used single-crank straight side press. 1,000-ton capacity, 11.18" stroke, adjustable slide, air clutch/brake, hydraulic overload protection, and more.

Brand: Fukui
Model: MSF 1000

Specifications:
Tonnage: 1,000
Stroke length: 11.18" (300mm)
Shut height: 33.46" (850mm)
Slide adjustment: 2: (50mm)
Bed size: 25.4" (700mm) x 31.49" (800mm)
Bolster thickness: 10.62" (270mm)
Ram area: 25.4" (700mm) x 31.49" (800mm)
Strokes per minute: 30 - 32 (infinitely variable)
Main motor: 200 H.P. (150KW)

Air clutch
Air brake
Air counterbalance
Hydraulic overload protection
Pneumatic ram knockout
Mechanical bed knockout
Pneumatic upper die clamp
Hydraulic lower die clamp
Recirculating lube system
Portable palm station
Exit conveyor

Sold As-Is Where-Is
Inspect under power in mid-west plant

Specifications subject to verification
