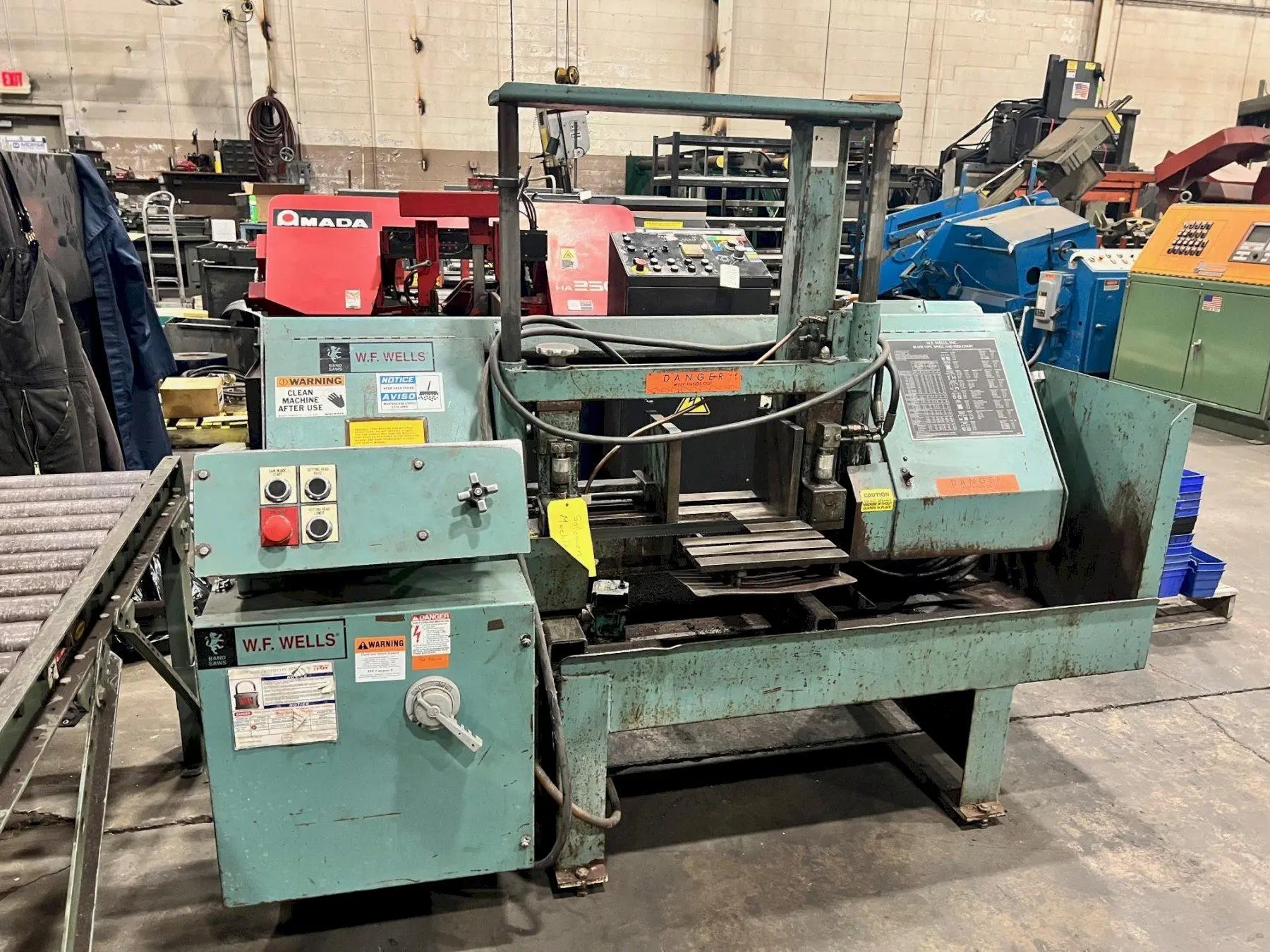

USED 1995 W.F. WELLS W-10-1

Overview
Manufacturer:
W.F. WELLS
Model:
W-10-1
Year:
1995
Stock #:
11070
Description

W.F. WELLS W-10-1 Band Saw, Horizontal Dual Column, 1995 model, used. Capacity: 10"H x 17"W @ 90°, Blade size: 1" x 11'10". Equipped with manual blade tension, vise, hydraulic downfeed, and flood coolant. Voltage: 220/440V, 3 phase.

Specifications

Brand: W.F. Wells
Model: W-10-1

Specifications:
Capacity @ 90 degrees: 10" H x 17" W
Capacity @ 45 degrees: 10" H x 7-1/2" W
Blade size: 1" x .035" x 11'10"
Blade speeds: 60 - 425 FPM
Saw feed: Variable, hydraulic
Sawing force: 30 - 120 lbs.
Blade guides: Carbide
Band wheel size: 14-1/2"
Blade motor: 5 H.P.
Coolant capacity: 15 gallons
Work height: 26"
Saw weight capacity: 5,000 Lbs.
Voltage: 220 / 440 volt 3 phase
Dimensions: 97" x 49" x 65"
Weight: 1,400 Lbs.

Equipped With

Manual blade tension
Manual vise
Positive hydraulic downfeed
Adjustable head up limit
Flood coolant
