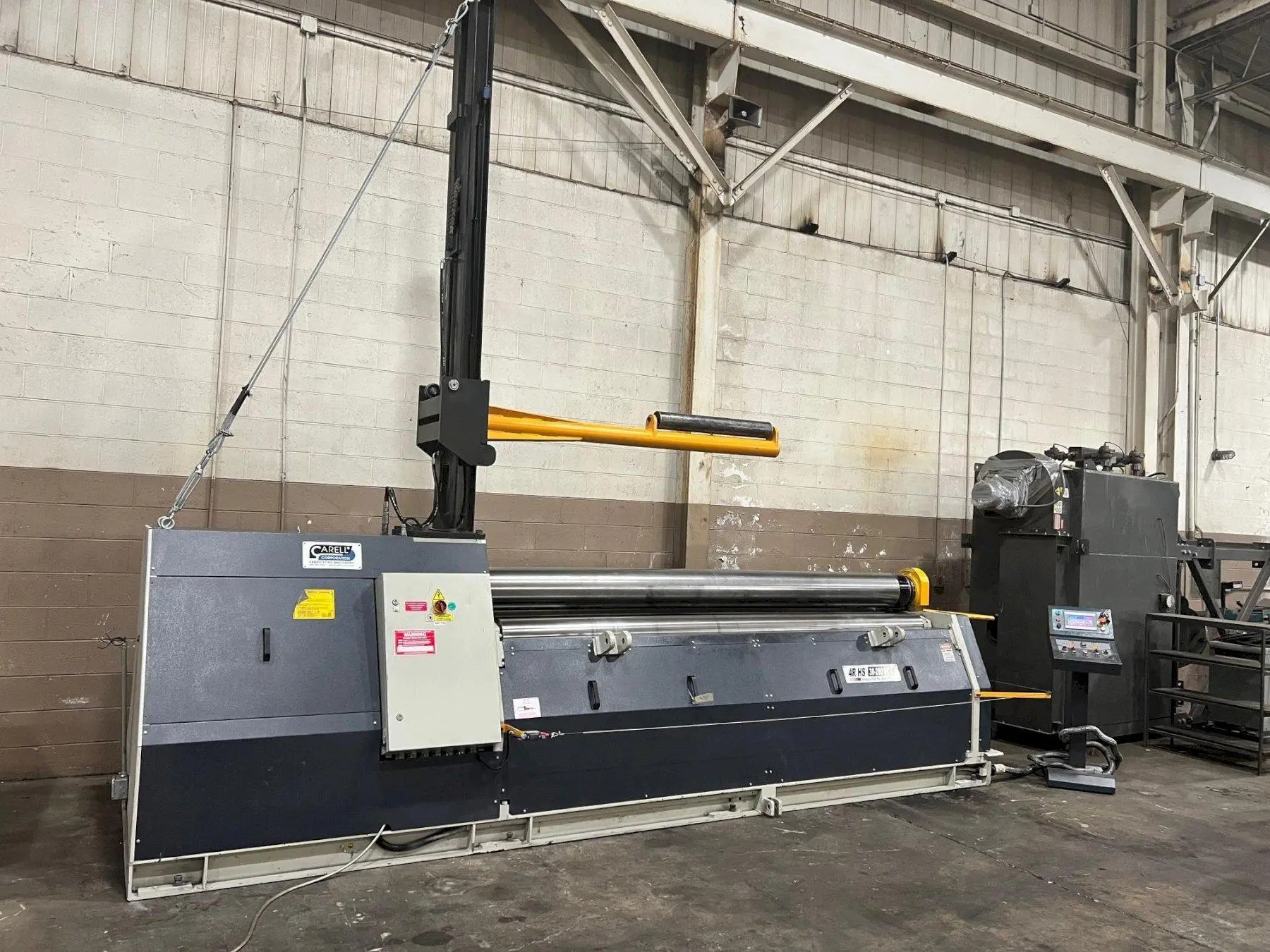

USED 2019 CARELL 4R HS 30-260 NC
Overview
Upgrade your operations with the CARELL 4R HS 30-260 NC Plate Bending Roll. Manufactured in 2019, it features consistent hydraulic performance, a color touchscreen NC control, and robust capacity. Ideal for heavy-duty projects.
Specs
Brand: Carell
Model: 4R HS 30-260 NC
Specifications:
Capacity @ 36,000 PSI
Rolling 5.0 > top roll OD: 3/8" x 10'
Rolling 1.5 > top roll OD: 5/16" x 10'
Pre-bending 5.0 > top roll OD: 5/16" x 10'
Pre-bending 1.5 > top roll OD: 1/4" x 10'
Capacity @ 50,000 PSI
Rolling 5.0 > top roll OD: 1/4" x 10'
Rolling 1.5 > top roll OD: 7/32" x 10'
Pre-bending 5.0 > top roll OD: 7/32" x 10'
Pre-bending 1.5 > top roll OD: 3/16" x 10'
Upper roll diameter: 10.20"
Lateral rolls diameter: 7.87"
(2) rotation speeds: 5 / 18 FPM
Hydraulic pump: continuous duty
Hydraulic motors: radial piston on top roll, high torque
Speed reduction: Planetary, continuous oil bath
Total power: 10 H.P.
Voltage: 440 volt 3 phase
Dimensions: 197" x 63" x 63"
Weight: 16,450 Lbs.
Equipped With
Portable NC color touchscreen control
Hydraulic drop end
Bottom pinch roll hydraulically positioned
Mechanical overhead roll support
