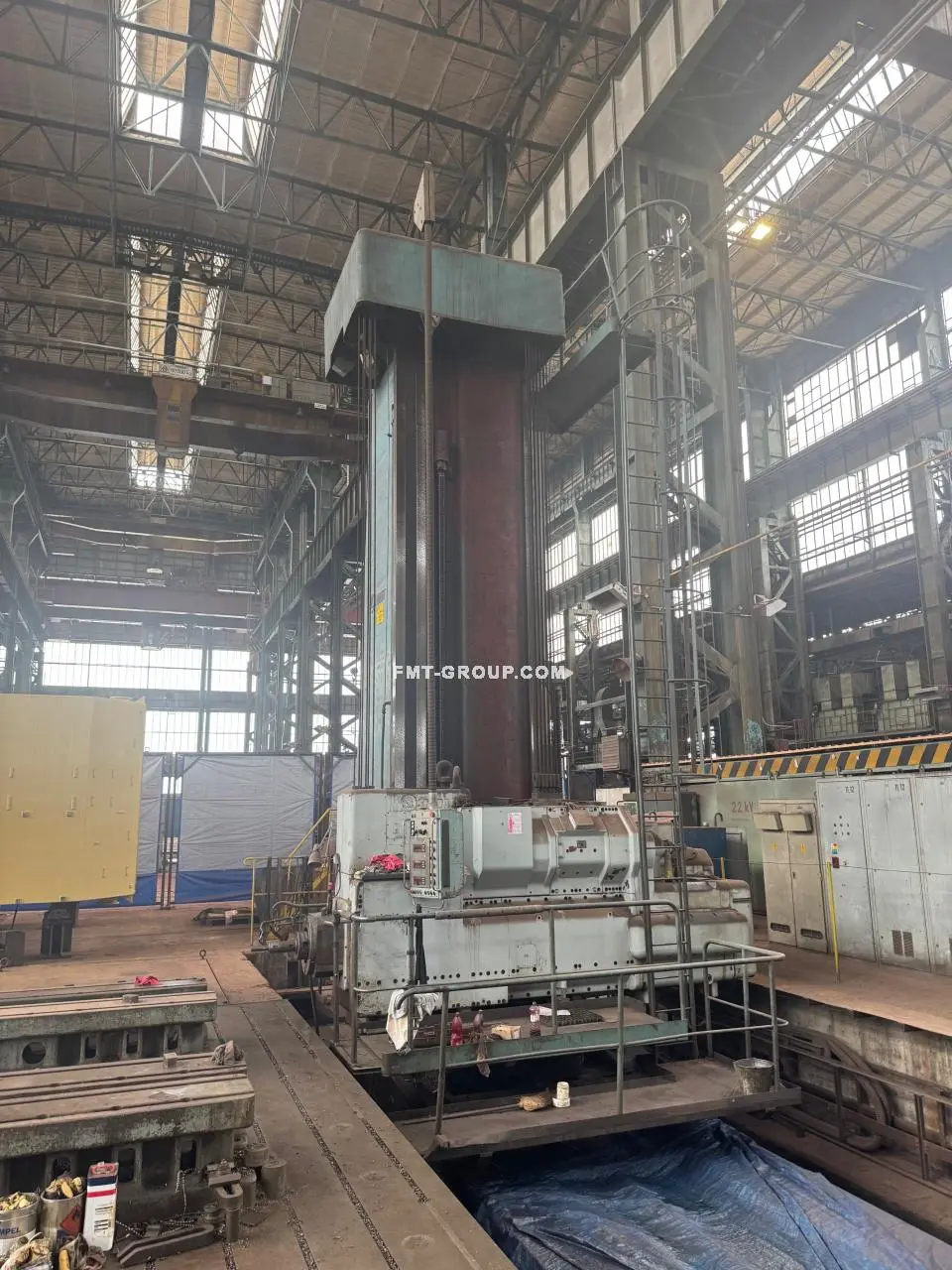

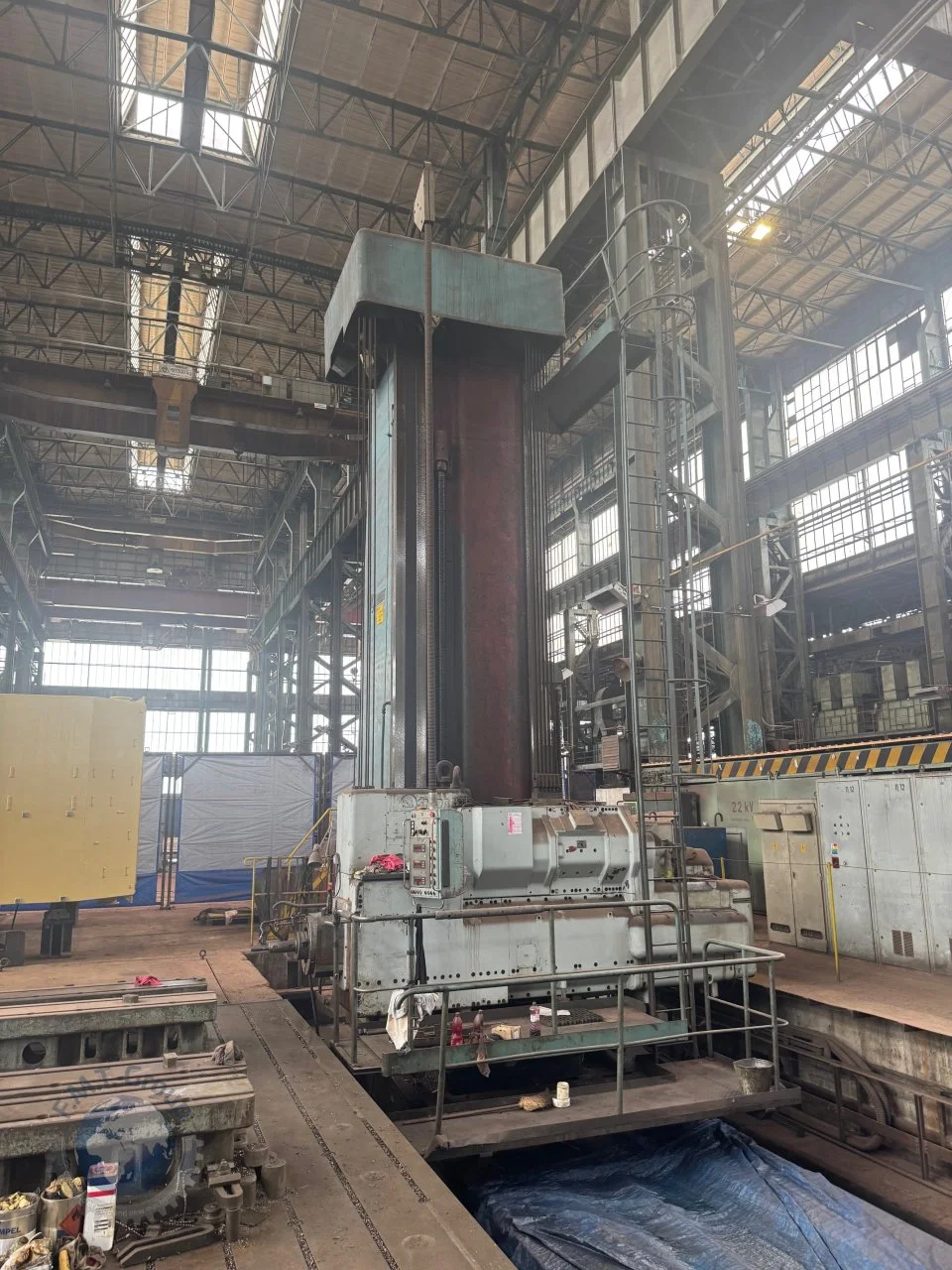

USED 1980 ŠKODA W 250 H

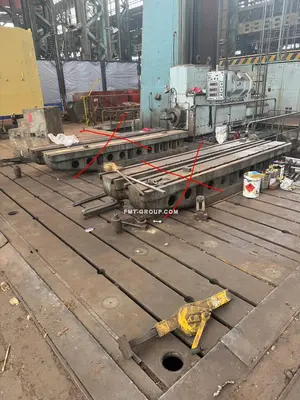

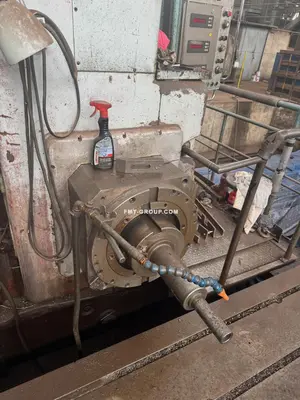

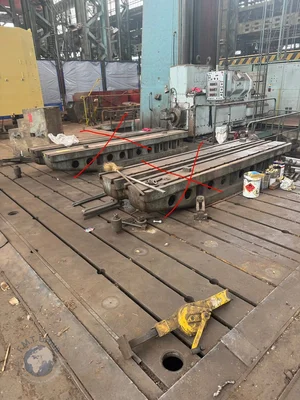

Good technical condition.Including floor plates: 2 pc. Milling head: 1 pc.
Year of made:​1980
Producer:​Škoda Plzeň
Technical specifications:
Description: Machining – precise drilling, boring, and milling of large and heavy workpieces, which are clamped on a base clamping plate next to the machine or on an additional rotary table.

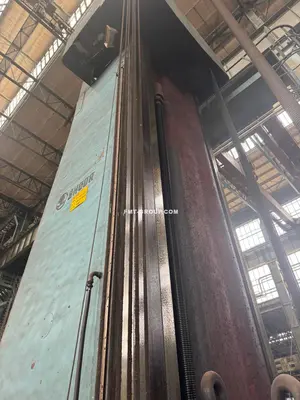

Type of Construction: Column with vertically adjustable spindle head, movable on a cross slide perpendicular to the spindle axis. The working spindle moves inside a hollow spindle.

• Spindle bore diameter: 250 mm
• Spindle taper: 140 metric
• Maximum torque on spindle axis: 34,300 Nm
• Bed height: 550 mm
• Bed guide width: 2,500 mm
• Spindle speed: 0.8 – 630 rpm
• Maximum spindle travel: 2,000 mm
• Maximum quill travel: 1,600 mm
• Spindle head travel along the column: 5,150 mm
• Column travel along the bed: 5,000 mm
• Lowest spindle axis position above bed guide surface: 1,475 mm
​Feeds:
• Drilling (spindle, quill), continuously variable: 0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 12.5 – 2,500 mm/min
• Milling (spindle head), continuously variable: 0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 20 – 4,000 mm/min
• Milling (column), continuously variable: 0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 25 – 5,000 mm/min
Rapid Traverse:
• Drilling (spindle, quill): 2,500 mm/min
• Milling (spindle head): 4,000 mm/min
• Milling (column): 5,000 mm/min
• Footprint of clamping plates: 6,400 x 5,700 mm
• Machine footprint without clamping plates: 6,400 x 1,430 mm
• Machine height: 9,320 mm
• Machine weight (including electrical equipment): 105,300 kg
• Total machine power consumption: 180 kVA
