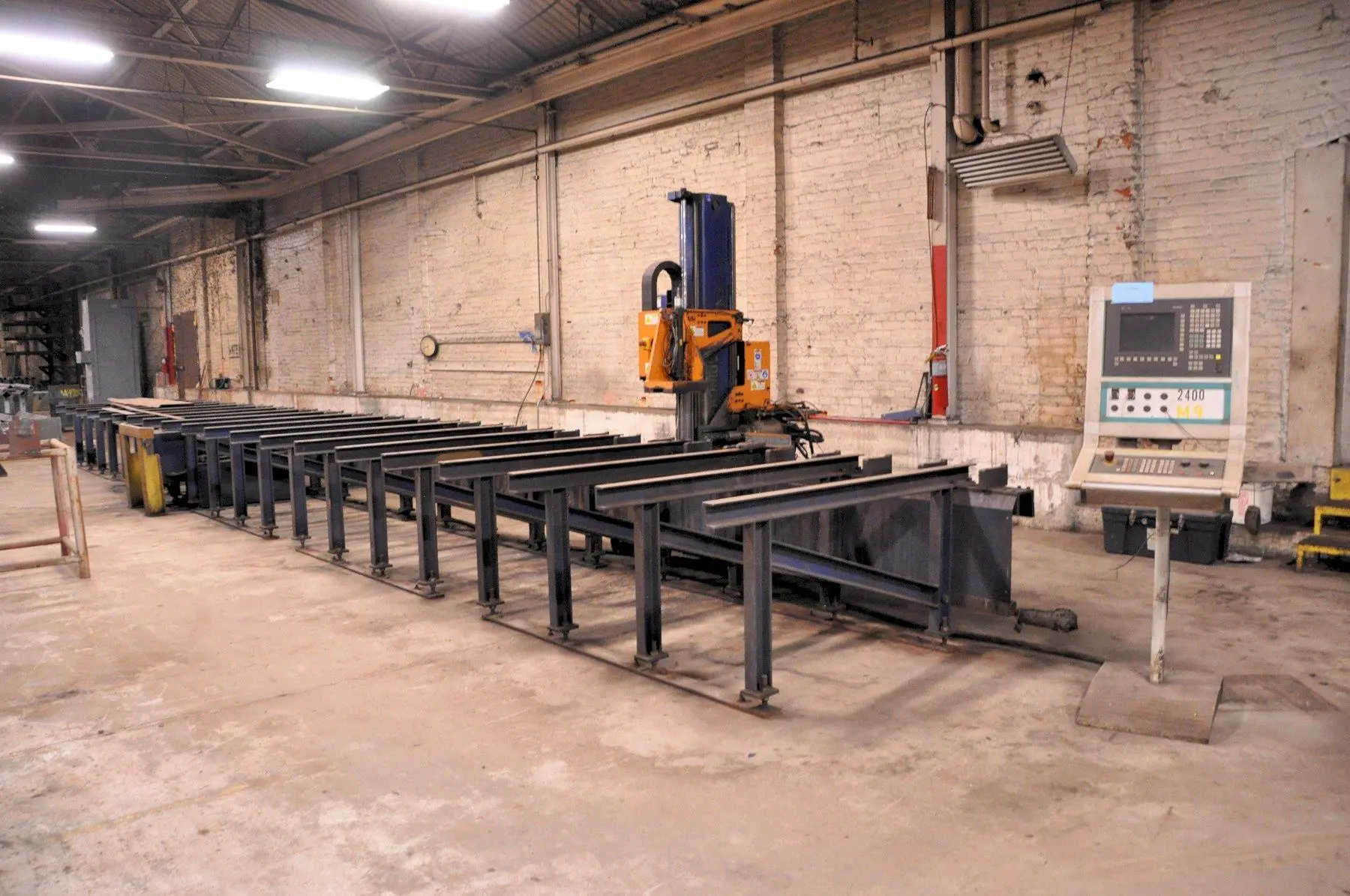

USED 2006 OCEAN AVENGER II 1000/1B
Overview
2006 OCEAN AVENGER II 1000/1B Beam/Drill Line. Efficiently boosts throughput and reduces labor costs with its versatile design. Processes beams, angles, pipes, and more. Compact space-saving design, ideal for steel fabrication.
Specs
Brand: Ocean / Peddinghaus
Model: Avenger II
The Ocean Avenger Beam Drill Line was designed for small to medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market. The Avenger completely eliminates time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.
The Ocean Avenger’s unique space saving design conserves valuable floor space and will increase monthly production by up to 400 tons-per-month with a single operator on an eight-hour shift. Its versatile design allows processing profiles including Beams, Angle, Channel, Square and Round Pipe and Tube, as well as Base Plates.
The Avenger Beam Drill will completely change the profitability of your operation by:
Decreasing labor costs - eliminates manual layout and hole drilling.
Increasing fabrication capabilities - process faster and with less human labor.
Lowering cost-per-hole drilling – by up to 30 cents/hole - 15,000-20,000 holes/bit.
Providing competitive advantages – bid more jobs lower, process larger profiles.
AVENGER SPECIFICATIONS
Profile size: 40" x 40'
Maximum drill diameter:1-9/16" [40mm] at 100% duty cycle, 2” [50mm] at reduced production
Material thickness: limited only by drill length with through-the-tool coolant system; 1-1/4” [40mm] with external spray-mist coolant system
Maximum speed X axis:120 ft per minute [36m/min]
Maximum speed Y axis:120 ft per minute [36m/min]
Spindle motor:13.5 hp, dual-range hydraulic motor
Spindle speeds:200-850 rpm, continuously variable
Drilling feed rate:2” – 10” per minute [50-250mm/min], continuously variable
Maximum spindle stroke:13” [330mm]
Vise clamping power:5 tons maximum (adjustable)
Power supply:460/480 V, 3-ph, 60 Hz
The Ocean Avenger can be installed in any structural steel fabrication shop or other operation where layout and drilling is required. It is capable of drilling most steel profiles including:
Beams up to 40" high (rolled or fabricated)
Angles, channels and T sections
Flat bars
Plates up to 40" wide
Girders
Tapered beams or other unequal sections
Tubes
Rails
Truck frames, rail car frames, etc.
Main Characteristics of the Ocean AVENGER: Eliminates manual layout and drilling
Provides exceptional accuracy of hole placement, eliminating costly field modifications
Easy installation in one-half the floor space required by regular beam lines
Simple and easy to operate
No computer experience required
Fully automatic drilling cycle
Equipped With
Sold As-Is with a 30-day return privilege.
