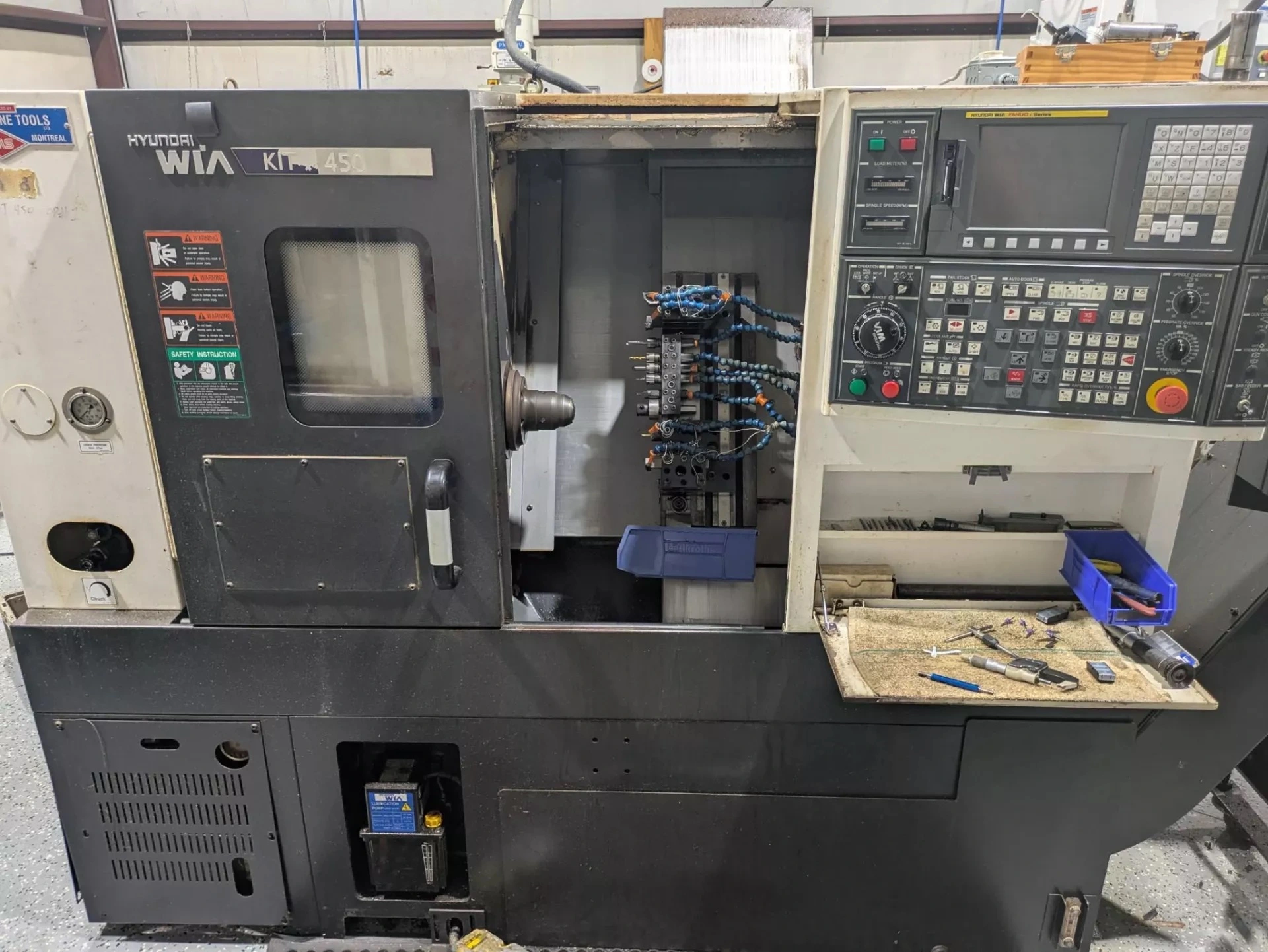

USED 2014 HYUNDAI WIA

SWING OVER BED: 20.9″
MAXIMUM TURNING DIAMETER: 12.8″
MAXIMUM TURNING LENGTH: 12.8″
BAR CAPACITY: 1.8″
CHUCK SIZE: 6.5″
SPINDLE BORE: 2.05″
SPINDLE SPEED: 50–6,000 RPM
SPINDLE MOTOR POWER (MAX/CONTINUOUS): 20/15 HP
TORQUE (MAX/CONTINUOUS): 70 / 51 FT-LB
SPINDLE TYPE: BELT-DRIVEN
SPINDLE NOSE: A2-5
TRAVEL (X/Z): 450/300 MM (17.7″/11.8″)
RAPID TRAVERSE RATE (X/Z): 1,181 / 1,417 IN/MIN
SLIDE TYPE: LM GUIDE
NUMBER OF TOOLS: 6
TOOL SIZE (OD/ID): 1″ / 1.25″
ELECTRIC POWER SUPPLY: 20 KVA
VOLTAGE/FREQUENCY: 220V / 60HZ
MACHINE DIMENSIONS: (82.7″ × 56.5″ x 72″)
WEIGHT: (5,952 LBS)
Equipped With:

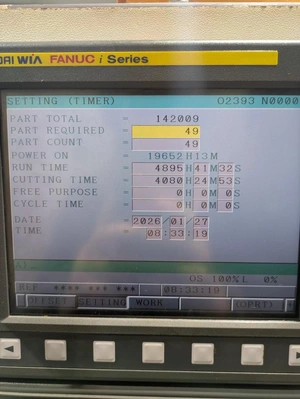

FANUC I SERIES
