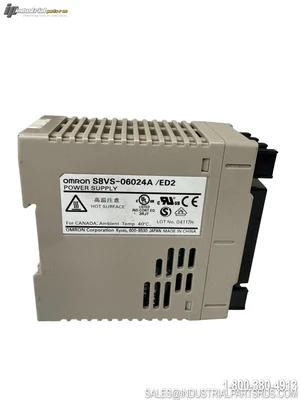

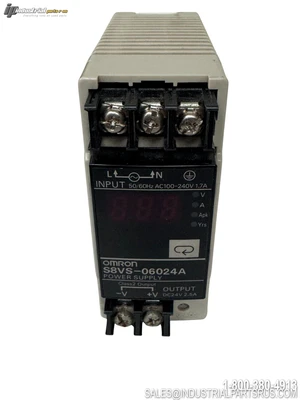

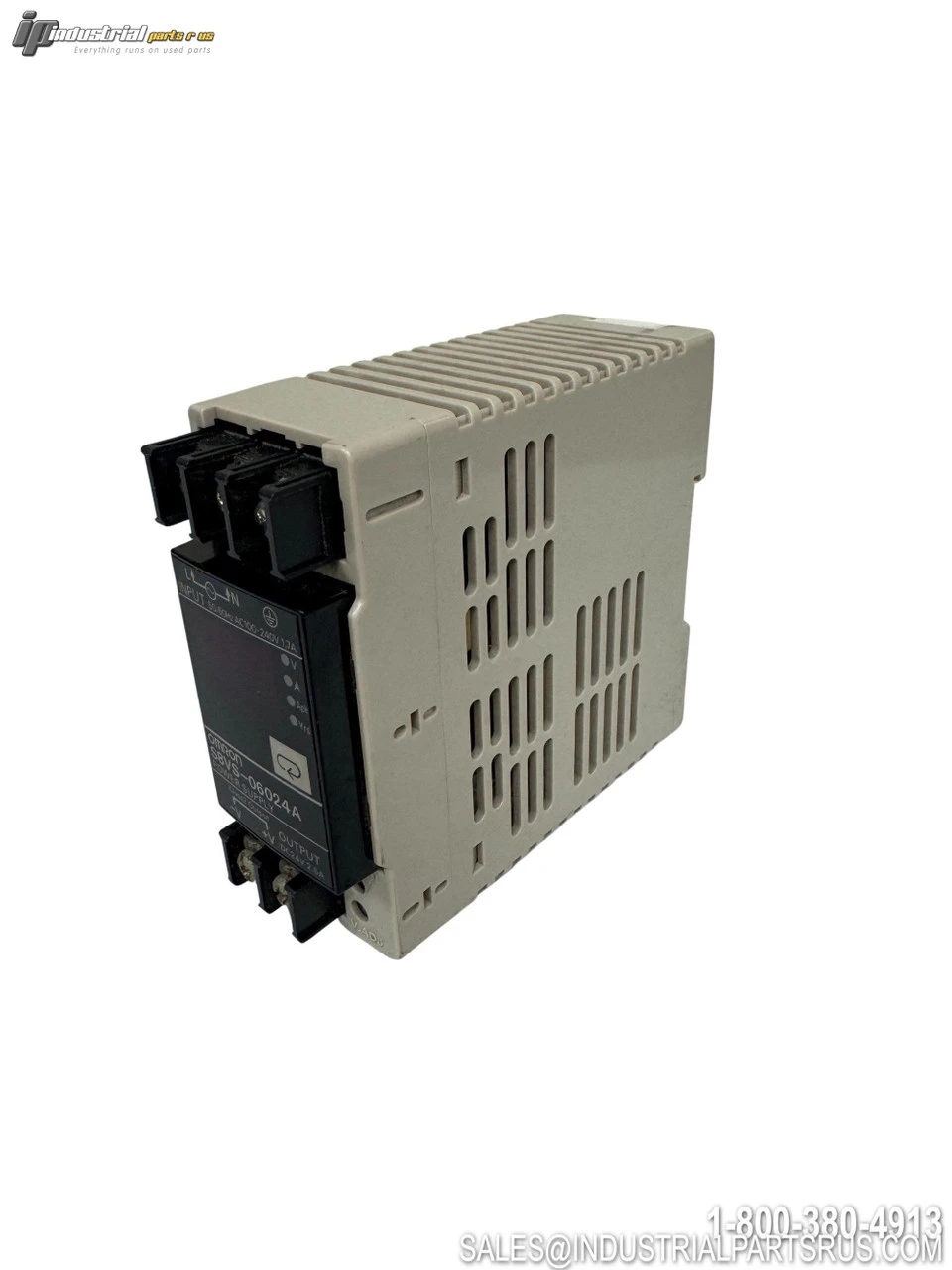

USED OMRON S8VS-06024A /ED2

The Omron S8VS-06024A /ED2 is a Switch Mode Power Supply (SMPS) that provides reliable 60W power conversion from AC to DC. This compact unit delivers 24VDC at 2.5A output current and features a wide universal input voltage range of 100-240VAC. Designed for DIN rail mounting with screw terminal connections, it includes display monitor functionality and undervoltage alarm indication for enhanced system monitoring.
Specification
Value
Brand
Omron
Model/Part Number
S8VS-06024A /ED2
Product Type
Switching Power Supply
Series
S8VS
Power Rating
60W
Input Voltage
100-240VAC (85-264VAC range)
Input Current
1.7A max @ 100VAC
Input Frequency
50/60Hz
Output Voltage
24VDC
Output Current
2.5A
Efficiency
78% minimum
Mounting Type
DIN Rail (35mm)
Terminal Type
Screw Terminal Block
Display Monitor
Yes
UL Class
Class 2
Ripple
2.0% (p-p) max
Operating Temperature
-10°C to +60°C
We warranty all items for 30 days from date of purchase.
