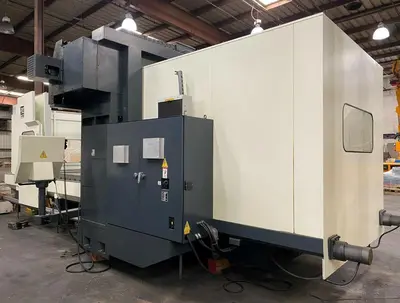

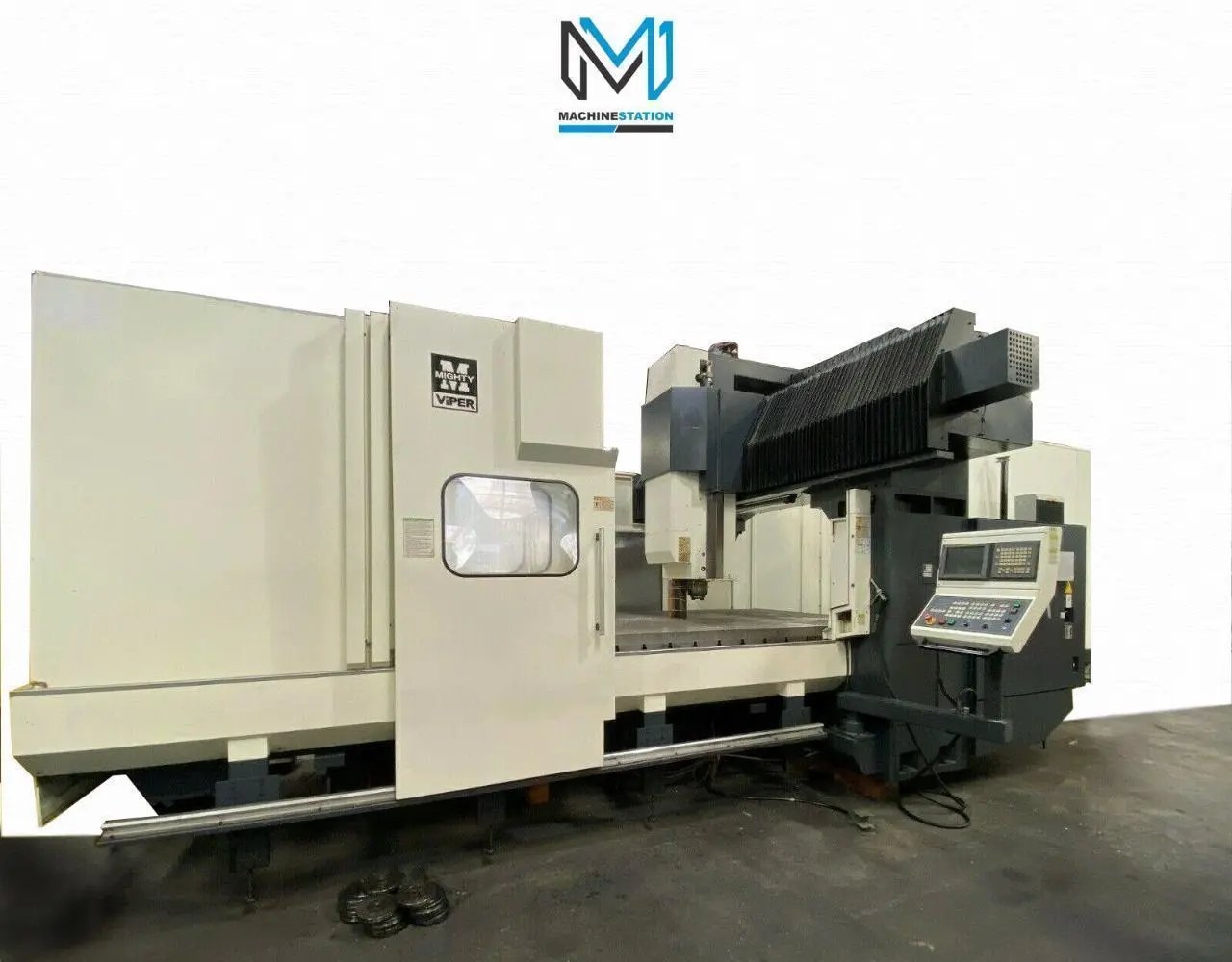

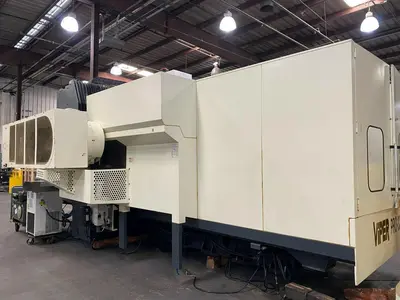

USED 2008 MIGHTY VIPER PRO-3210

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

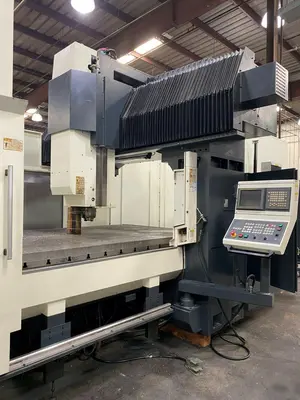

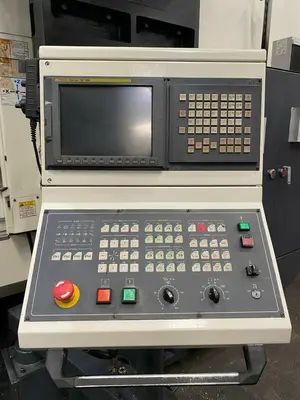

Fanuc 18iMB CNC Control
124″ X 81″ Jig Table
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Replacement Cost over $400000.00

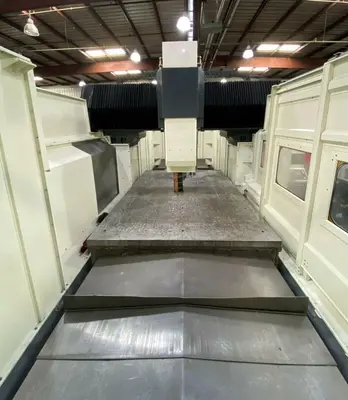

Mighty Viper Pro-3210 CNC Vertical Bridge Mill Specifications:
Travels:
X-Axis: 118.11″
Y-Axis: 82.68″
Z-Axis: 30.71″
Distance Between Columns: 91.0″
Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″
Rapid feedrate X Y & Z: 472 inch/P.M
Cutting Feedrate: .04″ – 276″ inch/ P.M

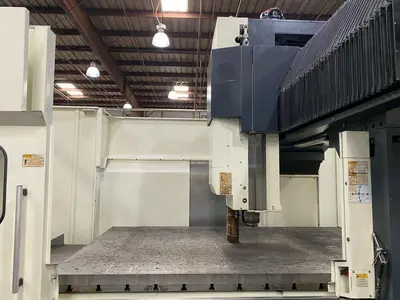

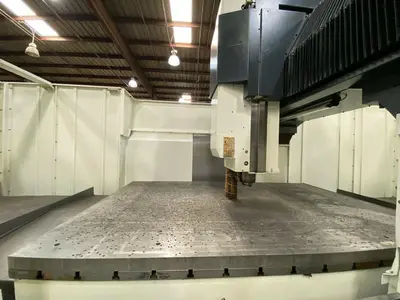

Table:
Length: 124″
Width: 81″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 18000 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP

Automatic Tool Changer:
50 Taper
Capacity: 40
Max Tool Weight: 33 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5″

General:
Air Required: 100 psi 4 scfm
Power: 205-235v / 66FLA / 3-Phase 40 Kva

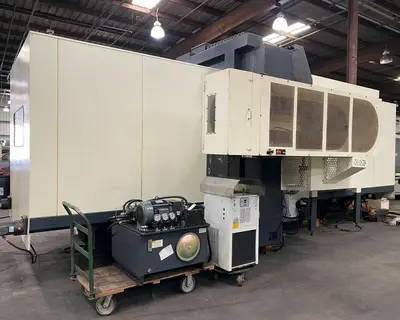

Overall Shipping Dimensions: 410″ x 164″ x 130″ High Hydraulic Unit Chip Conveyor
Chiller unit Extra Weight: 60600 lbs. Approx.

Coolant thru Spindle
40 Station Side Mount Tool Changer
50 Taper Geared Head 6000 RPM Spindle
Flood coolant with large separate coolant tank
Chip Blaster
Chip Conveyor
Chiller Unit
Levelling Pads
