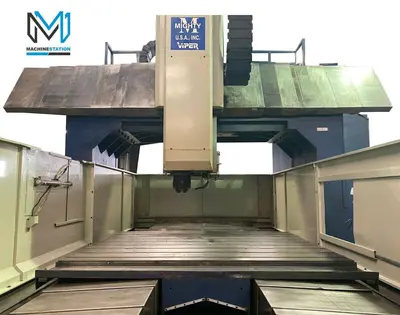

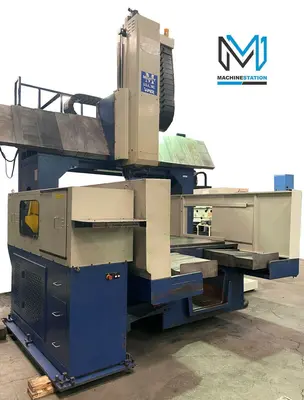

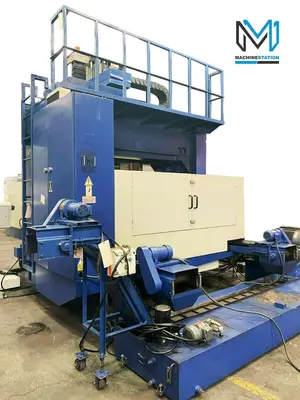

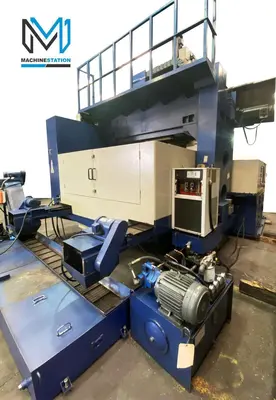

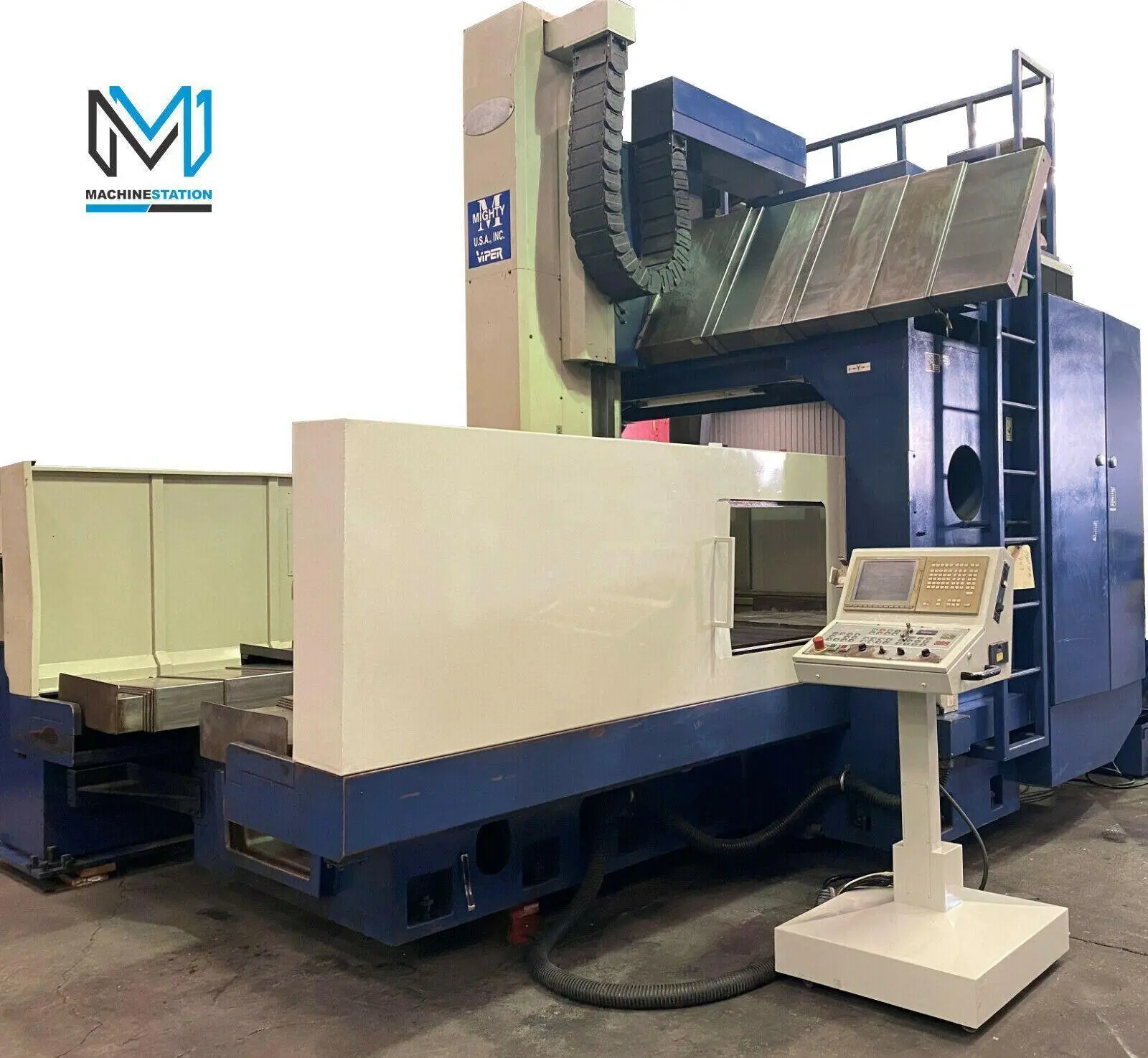

USED 2002 MIGHTY VIPER DM-100
Overview
Specifications
| X | 61.75" | 1,568.4 mm |
|---|---|---|
| Y | 86.66" | 2,201.2 mm |
| Z | 36.22" | 919.99 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 80.31" | 2,039.9 mm |
| Table-L | 64.96" | 1,650 mm |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
| Dimensions | 224″ X 144″ x 130″ High | 224″ X 144″ x 130″ High |
| Weight | 55000 lbs. Approx. | 55000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Mitsubishi 600M CNC Control
64″ X 80″ Table for Die Mold Applications
6000 RPM Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Replacement Cost over $300000.00
Travels:
X-Axis: 61.75″
Y-Axis: 86.66″
Z-Axis: 36.22″
Distance Between Columns: 102.36″
Spindle Nose to Table (Min.- Max.): 7.4″- 43.7″
Table:
Length: 64.96″
Width: 80.31″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 22000 lbs
Feed Rates:
Rapid X Y & Z: 590 inch per minute
Cutting Feedrate: .04″ – 376″ inch per minute
Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP
Tool Changer:
Capacity: 30
Max Tool Weight: 43 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5.2 – 7.7″
General:
Air Required: 100 psi 4 scfm
Power: 220v / 3-Phase 65 Kva
Floor Dimensions: 224″ X 144″ x 130″ High
with Hydraulic Unit Chip Conveyor Chiller unit
Weight: 55000 lbs.
Equipped With
30 Station Side Mount Tool Changer
50 Taper Geared Head
Flood coolant with large separate coolant tank Base
Flush Chip Disposal with Dual Auger
Chip Conveyor
Chiller Unit
Books and Manuals
