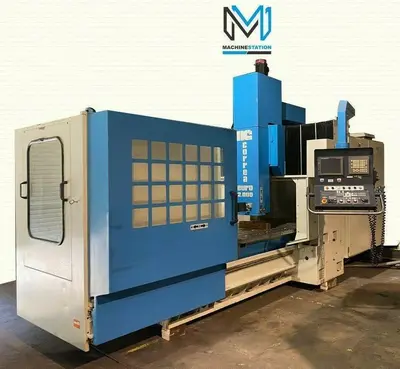

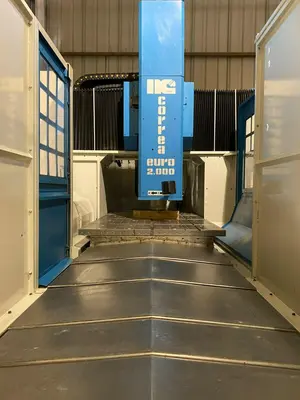

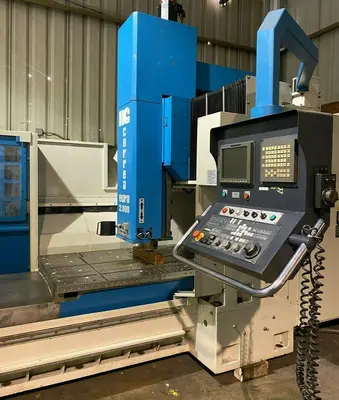

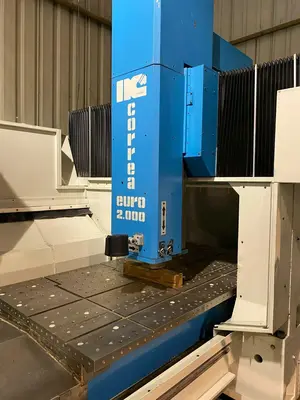

USED 2000 NICOLAS CORREA EURO-2000
Overview
Specifications
| X | 78.7" | 1,999 mm |
|---|---|---|
| Y | 49.2" | 1,249.7 mm |
| Z | 25.6" | 650.24 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 39.4" | 1,000.8 mm |
| Table-L | 78.7" | 1,999 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 250″ x 154″ x 140″ High | 250″ x 154″ x 140″ High |
| Weight | 27500 lbs. Approx. | 27500 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

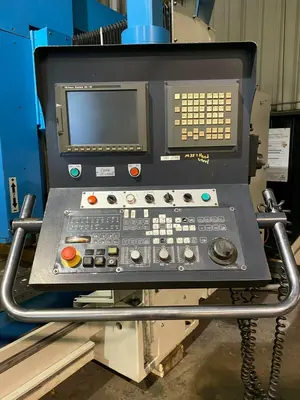

Fanuc 16-iM CNC Control

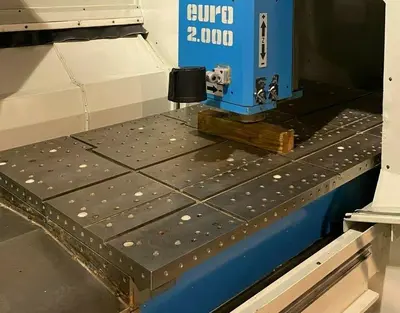

80″ X 42″ Heavy Duty Jig Table
MPG Control
PCMCIA Card
NICOLAS CORREA EURO-2000 Specifications:
Travels:
X-Axis: 78.7″
Y-Axis: 49.2″
Z-Axis: 25.6″
Distance Between Columns: ″
Spindle Nose to Table (Min.- Max.): ″- ″
Table:
Length: 78.7″
Width: 39.4″
T-Slot: 8
Max Weight on Table: 11000 lbs
Spindle:
Taper Size: 40
Speed Range: 10000 RPM
Spindle Power: 40 HP
Automatic Tool Changer: 24
Feed Rates:
Rapid X Y & Z: 787 inch/Per Min.
Cutting Feedrate: 630 inch/Per Min.
General:
Air Required: 100 psi 4 scfm
Power: 400v / 66FLA / 3-Phase 40 Kva
Overall Dimensions: 250″ x 154″ x 140″ High
Weight: 27500 lbs. Approx.
Equipped With
Thru Spindle Coolant
24 Station Side Mount Tool Changer
10000 RPM Precision Spindle
Liquid Chiller Unit
Chip Conveyor
Electrical Transformer
