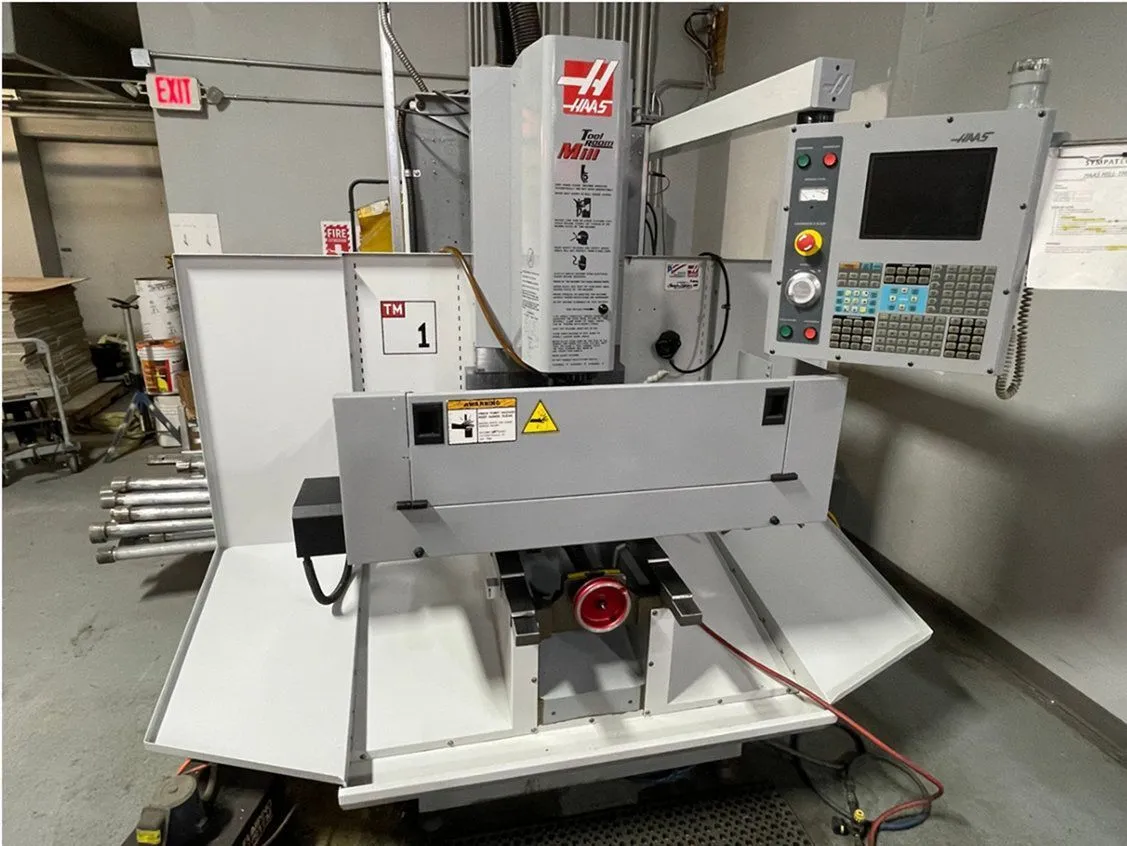

Lightly used Haas TM-1 Toolroom Mill with very low hours—ideal for precision milling, training centers, or small shops. Affordable, accurate, and ready to run.
| X | 30" | 762 mm |
| Y | 12" | 304.8 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | 40 CT | 40 CT |
| Table-W | 47.5" | 1,206.5 mm |
| Table-L | 10.5" | 266.7 mm |
| # Axis | 3 | 3 |
| Weight | 4300 | 4300 |
Rapid Rate X Axis: 200 IPM
Rapid Rate Y Axis: 200 IPM
Rapid Rate Z Axis: 200 IPM
Max Table Load: 1,000 LBS
Voltage: 208 | 240
Phase: 3 | 1
Full Load (Amps): 25 | 40
Hertz: 50 | 60
Largest Load: 15 Amps
32-Bit Operating System
