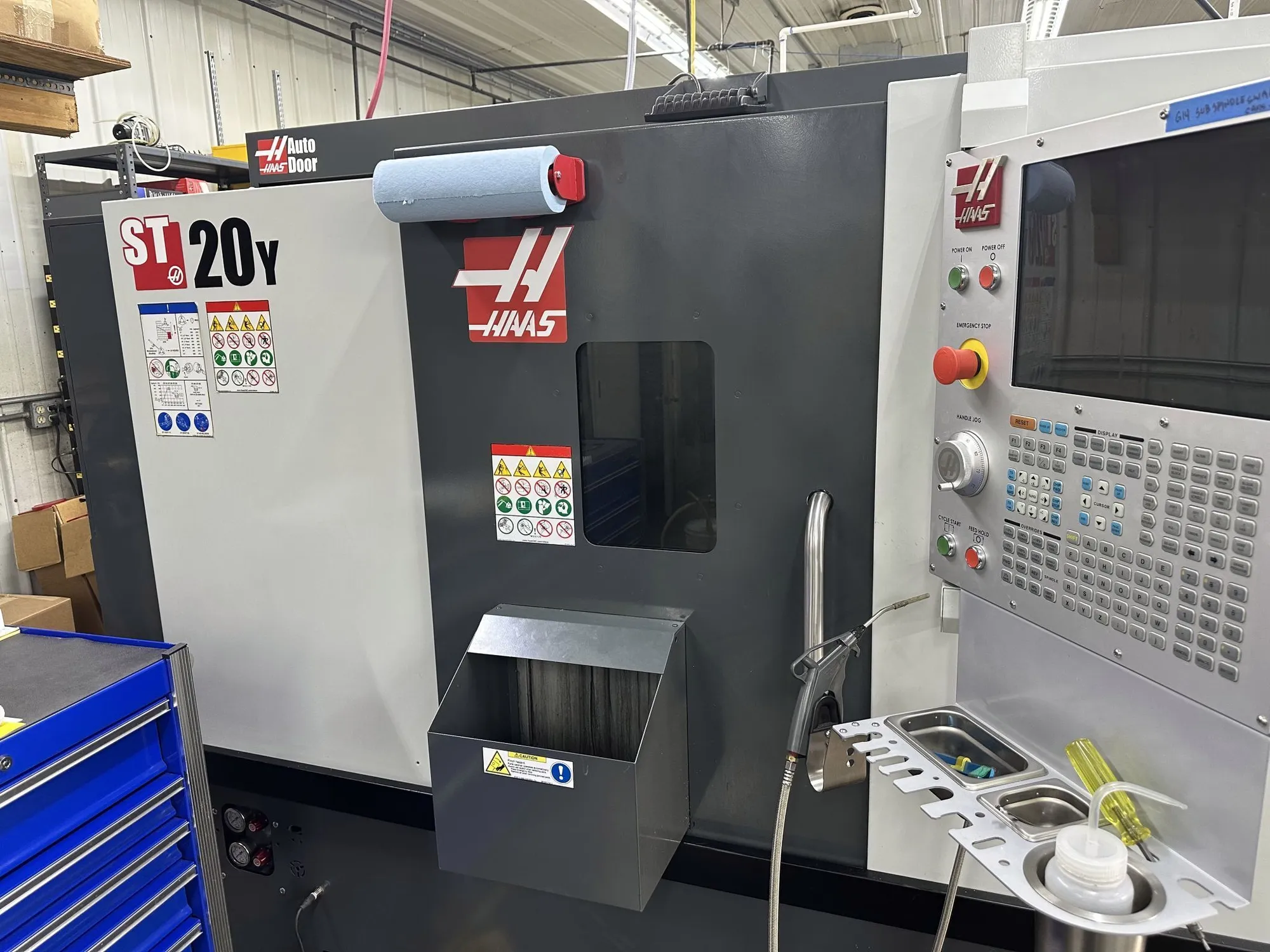

USED 2022 HAAS ST-20Y
Overview
Description
Super clean Haas ST-20Y CNC Lathe with live tooling, sub-spindle, auto door, chip conveyor, parts catcher, WiFi, HaasConnect, and powerful multitasking capabilities.
Specifications
| Swing | 21" | 533.4 mm |
|---|---|---|
| Machining Length | 22.5" | 571.5 mm |
| # Axis | 3 | 3 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11.75" | 298.45 mm |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
| Dimensions | 143 x 90 x 92 | 143 x 90 x 92 |
| Weight | 10480 | 10480 |
Equipped With
- Visual Part Programming System
- Standard Program Memory, 1 GB
- User-Definable Macros
- 55-Gallon Coolant Tank
- 8.3" Hydraulic Chuck, A2-6
- Early Power-Failure Detection Module
- Ethernet Interface
- HaasConnect: Remote monitoring
- HaasDrop
- Media Display M-Code; M130
- Rigid Tapping
- Spindle Orientation
- WiFi Connection for the Haas Control
- CNC Control Cabinet Cooler
- A2-5 Finishing Sub-Spindle

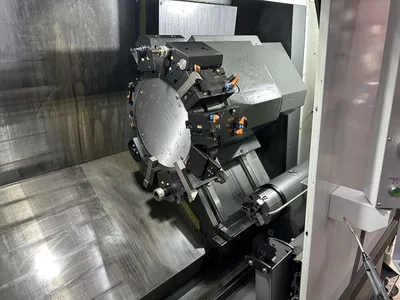

- 4000-rpm Live Tooling with C axis, 24-Station BMT65 Turret
- Automatic Tool Presetter
- Auto Door for Lathes
- Belt-Type Chip Conveyor, Lathe
- Chuck Air Blast
- Sub-Spindle Air Blast
- Parts Catcher
- LOW-VOLT
- Chip Tray Filter Kit
