| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 64″ x 61″ x 77″ High | 64″ x 61″ x 77″ High |
| Weight | 7000 lbs. Approx. | 7000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc Oi-Mate TD series CNC Control
Collet Chuck
A2-6 Spindle Nose
Quick Machining
Fine Finish
Accurate Machining
Simple Operation
Speedy Setup Change
Squire Cutting
Hexagonal Cutting
2 Face Middle Cutting
Clutch Cutting
Multi-Grooving Cutting
USB Drive
PCMCIA Card Slot
Foot Switch
Coolant Tank
Capacity:
Max Working Diameter: 2.36″
Max Working Length: 6.3″
Max Bar Capacity: 1.57″
Travels:
X Axis Travel: 3.94″
Z Axis Travel: 6.3″
Max Cutting Feed Rate: 393 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 1.77″
Spindle Speed: 100 – 450 RPM
Motors:

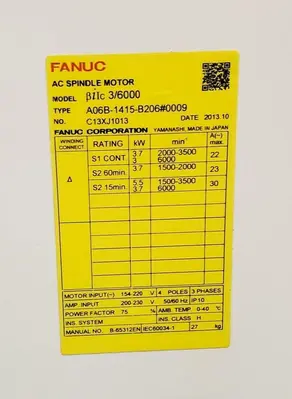

Spindle Motor: 7.5 HP
X Axis Motor: 1.6 HP
Z Axis Motor: 1.6 HP

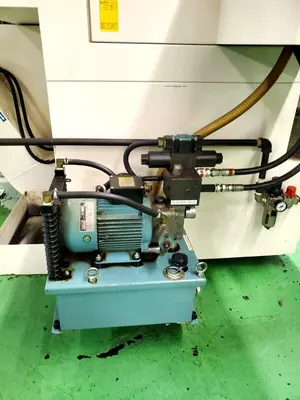

Hydraulic Motor: 1 HP
General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power: 23 kva, 220v / 3-Phase
Overall Dimensions: 64″ x 61″ x 77″ High
Weight: 7000 lbs Approx.

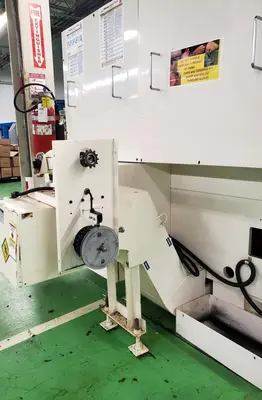

Chip Conveyor
