USED LAROX PF 38 A2 1

Used Equipment Facts About This Machine
Manufacturer Information
Larox, now part of Metso Outotec, is recognized globally for advanced industrial filtration technologies serving mining, chemical processing, hydrometallurgy, food, pharmaceutical, and wastewater industries. The Larox PF series pressure filters are designed for high-capacity solid-liquid separation with fully automated operation and exceptional cake washing and dewatering performance.
Description

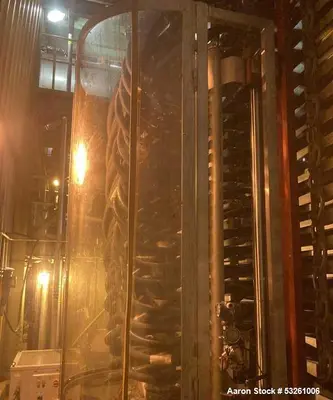

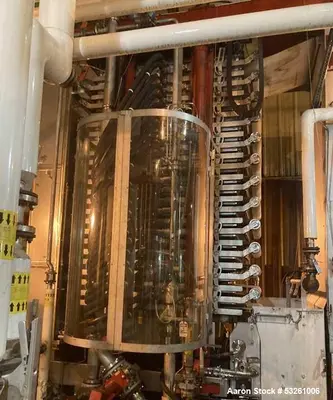

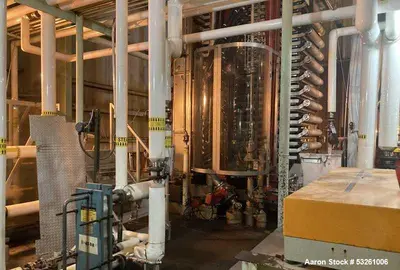

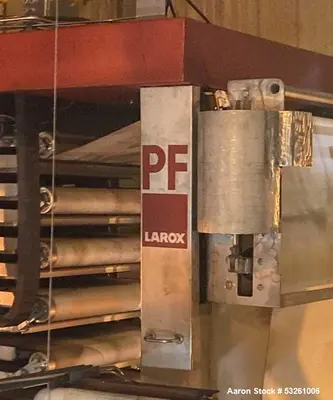

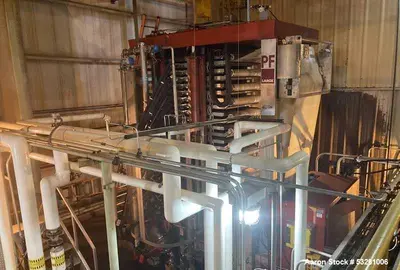

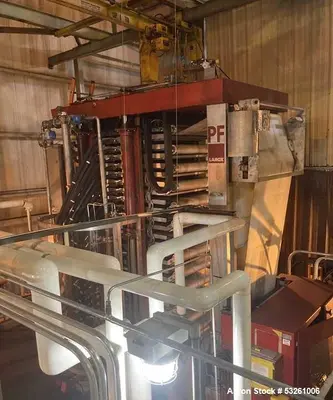

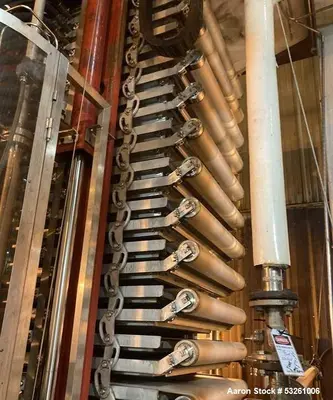

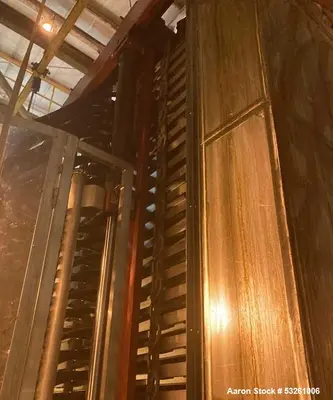

Available for immediate sale is a Used Larox PF 38 A2 Double-Sided Pressure Filter System featuring 37.8 square meters of filtration area. This fully automated filtration system was professionally rebuilt and reconditioned in 2022 and has remained unused since the refurbishment was completed.
The Larox PF-DS (Double-Sided) filtration process operates as a fully automated batch filtration system. During operation, filtration chambers are filled with slurry and filtration begins simultaneously from both sides of each chamber. Filter cake forms on both the upper and lower surfaces of the filtration chamber, maximizing filtration efficiency and throughput.
The extensive 2022 rebuild included a complete replacement of the plate pack, new feed and discharge hoses, replacement of the cloth tracking system, and installation of a new PLC control system. Over $800,000 was invested in refurbishment, resulting in a machine that is essentially ready for immediate operation.

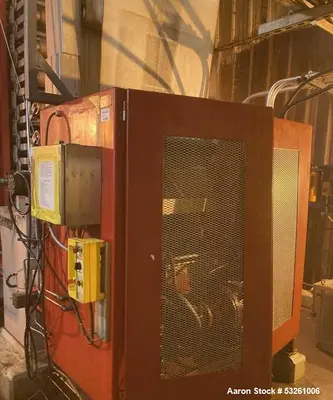

The package includes hydraulic systems, pressing water pump, control panel with remote controller, Alfa Laval stainless steel heat exchanger, pumps, piping, and a large inventory of spare parts.
Specifications

Manufacturer: Larox
Model: PF 38 A2
Filter Type: Double-Sided Pressure Filter (PF-DS)
Filtration Area: 37.8 sq. meters
Plate Size: 900 mm x 1750 mm
Operating Mode: Fully Automated Batch Filtration
Hydraulic Unit Motor: 18.5 KW
Hydraulic Unit Voltage: 380V / 3 Phase / 50 Hz
Pressing Water Pump: 15.0 KW
Pressing Water Pump Voltage: 380V / 3 Phase / 50 Hz
Control System: PLC with Remote Controller
Heat Exchanger: Alfa Laval Stainless Steel Plate & Frame
Includes Pumps: Yes
Includes Interconnecting Piping: Yes
Condition: Reconditioned in 2022
Operating Status: Unused Since Rebuild
Spare Parts: Large inventory available

Major Reconditioning Performed

Complete plate pack replacement
Approximate value: $560,000
All feed and discharge hoses replaced
New clamps installed
Approximate value: $50,000
New cloth tracking device installed
PLC control system replaced
Approximate value: $200,000
Total refurbishment investment exceeded $800,000

Applications

Mining concentrates filtration
Hydrometallurgical processing
Chemical processing
Fine chemical production
Pigment manufacturing
Industrial minerals processing
Battery materials processing
Metal recovery operations
Wastewater sludge dewatering
Industrial solid-liquid separation

Products This Equipment May Be Used For

Copper concentrates
Nickel concentrates
Zinc concentrates
Lithium compounds
Battery precursor materials
Metal hydroxides
Industrial minerals
Chemical intermediates
Pigments and fillers
Industrial slurries and precipitates

Frequently Asked Questions
What makes the Larox PF-DS filtration system unique?
The PF-DS utilizes double-sided filtration, allowing cake formation on both sides of the filtration chamber for improved throughput and filtration efficiency.
Has the equipment been used since refurbishment?
No. The machine has remained unused since the complete 2022 reconditioning project.
What major components were replaced during the rebuild?
The plate pack, feed and discharge hoses, cloth tracking device, and PLC control system were all replaced.
Is the control system included?

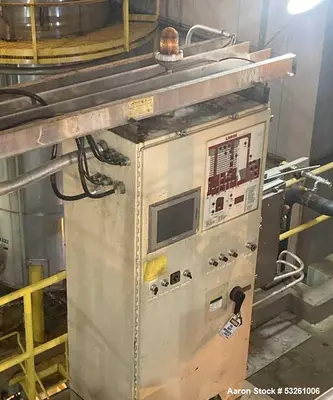

Yes. The package includes the PLC control panel and remote controller.
Are spare parts available?
Yes. A substantial inventory of spare parts is available with the system.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment can provide dismantling coordination, rigging assistance, transportation planning, export services, and worldwide logistics support.
