USED LUWA-SMS E-4503

Used Equipment Facts About This Machine
Manufacturer Information
Luwa-SMS GmbH is a globally recognized manufacturer of thin film evaporators, wiped film evaporators, distillation systems, and thermal separation equipment used throughout the chemical, pharmaceutical, food, petrochemical, and specialty products industries. Luwa systems are known for efficient heat transfer, short residence times, and gentle processing of heat-sensitive, viscous, and high-boiling products.
Description

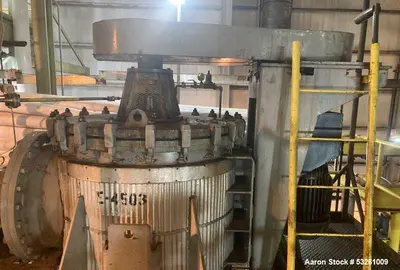

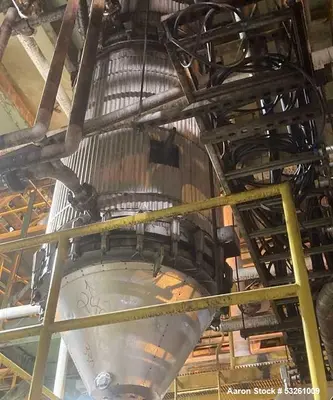

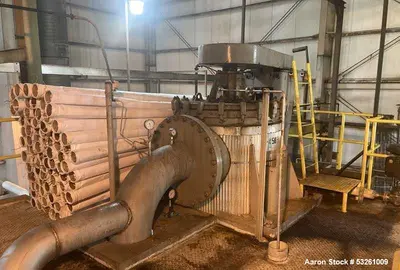

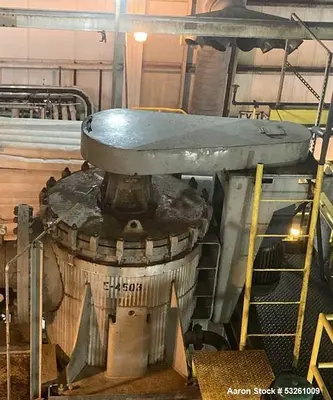

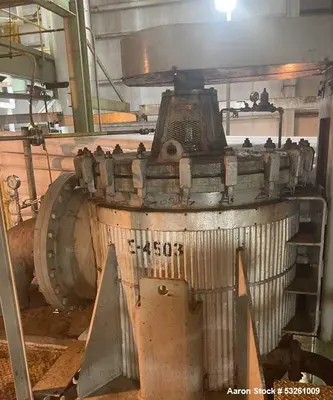

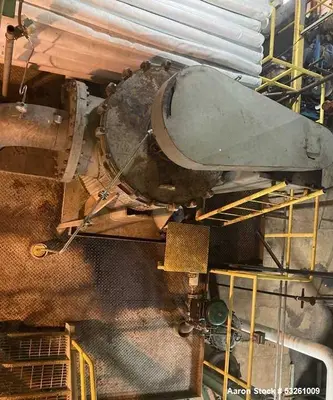

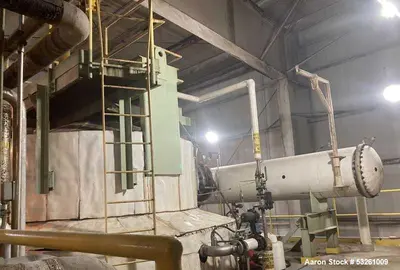

Available for immediate sale is a Used Luwa-SMS GmbH Thin Film Evaporator System, Model E-4503, featuring 193.7 square feet of heat transfer area and constructed entirely of 316L stainless steel in product contact areas.
This evaporator is designed for continuous concentration, solvent recovery, purification, stripping, and thermal separation applications requiring efficient heat transfer with minimal product degradation. The thin film design creates a turbulent product film across the heated surface, allowing rapid evaporation while maintaining short residence times.
The system includes the evaporator body, condensers, vessels, interconnecting piping, and drive assembly as originally installed. The unit features an ASME Section VIII Division 1 pressure-rated shell and jacket capable of operating under full vacuum or positive pressure service.
This equipment is particularly well suited for pharmaceutical intermediates, specialty chemicals, polymers, food ingredients, botanical extracts, solvents, resins, and other heat-sensitive materials.
Specifications

Manufacturer: Luwa-SMS GmbH
Model: E-4503
Equipment Type: Thin Film Evaporator System
Heat Transfer Area: 193.7 Sq. Ft.
Material of Construction: 316L Stainless Steel
ASME Code: Section VIII Division 1
National Board Number: 80
Year: 1977

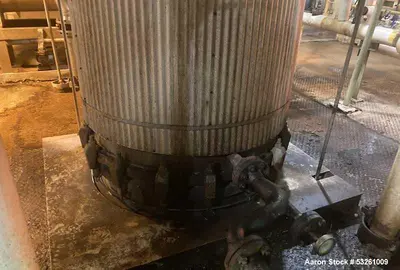

Evaporator Vessel

Shell Material: 316L Stainless Steel
Shell Diameter: 3'-7.94" (Approx. 44")
Shell Pressure Rating: 194 PSI
Jacket Pressure Rating: 194 PSI
Vacuum Rating: Full Vacuum
Maximum Temperature Rating: 482°F

Drive Assembly

Motor Size: 50 HP
Motor Type: Explosion Proof
Speed: 1000 RPM
Electrical: 230/460 Volt
Phase: 3 Phase
Frequency: 60 Hz

Included Equipment

Luwa-SMS Thin Film Evaporator
Condensers

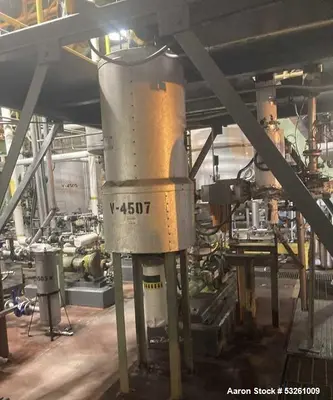

Process Vessels
Interconnecting Piping
Drive Assembly
Support Components As Installed

Applications

Solvent recovery
Product concentration
Thin film evaporation
Wiped film evaporation
Distillation operations
Heat-sensitive product processing
Pharmaceutical intermediate concentration
Specialty chemical processing
Resin concentration
Botanical extract processing

Products This Equipment May Be Used For

Pharmaceutical intermediates
Active pharmaceutical ingredients (API)
Fine chemicals
Specialty chemicals
Solvents
Resins
Polymers
Botanical extracts
Food ingredients
Flavor and fragrance products
Industrial oils
High-viscosity products

Frequently Asked Questions
What is a thin film evaporator used for?
Thin film evaporators are used for concentration, purification, solvent recovery, stripping, and evaporation of heat-sensitive or viscous products under vacuum or controlled temperature conditions.
What is the heat transfer area?
The evaporator provides approximately 193.7 square feet of heat transfer surface area.
What materials of construction are used?
The evaporator shell is constructed of 316L stainless steel.
What are the pressure and temperature ratings?
The shell and jacket are rated for 194 PSI and full vacuum service at temperatures up to 482°F.
Is the drive motor explosion proof?
Yes. The unit is equipped with a 50 HP explosion-proof motor operating at 1000 RPM.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment can coordinate inspection scheduling, dismantling, rigging, loading, transportation, export documentation, and worldwide logistics services.
