Complete Used BUSS Loop Reactor High Pressure Hydrogenation Plant for Lactitol Production
Overview
Complete Used BUSS Loop Reactor High Pressure Hydrogenation Plant for Lactitol Production. Lactitol is produced via catalytic hydrogenation, in an industrial plant using high-pressure, high-temperature conditions (bars) to add hydrogen to lactose. The process utilizes catalysts Raney Nickel in a continuous stirred-tank reactor (CSTR) to yield high-purity lactitol, a sugar alcohol used as a sweetener. Key Components of a Lactitol Plant includes a Hydrogenation Reactor: A CSTR or slurry-type reactor is commonly used, with, for example, EKATO technologies offering turnkey solutions to handle hydrogen gas and catalysts. Catalyst System: Raney nickel (sponge nickel) is a standard catalyst Purification Unit: Post-reaction, the mixture is filtered to remove the catalyst and purified using ion-exchange resins. Crystallization and Drying: The purified lactitol solution is concentrated by evaporation, crystallized under controlled conditions and then dried to form lactitol monohydrate. This is a Complete System Currently in Operation. Main System Components include: Patterson Industries 5200 gallon Reaction Vessel, 316L stainless steel, rated FV/1020 PSI at 300 degrees F, includes lower & upper Loop Reaction Piping. Biral-Buss High Pressure Pump, Type NZP 340-250-1 Sunitrol Raw Material (Lactose) Feed Pump, 250 HP/460V Braun + Luebbe 15 HP 316 stainless Dosing Pump, Patterson Industries 1000 gallon 316L stainless Catalyst prep Tank with Lightnin Agitator, Ledco 360 gallon 316L stainless Catalyst prep Tank, Multiple 316L stainless steel Heat Exchangers, RXN Pump, 316L stainless steel Additive Tanks with Lightnin Agitators and Feed Pumps, Product Vessels, Pressure Filters, Multiple Product Coolers and Heaters, Supporting Structure is also available, does not include the building. Multiple Prints including System Process & Footprint. More info & inspections are available upon request.
Specs
Used Equipment Facts About This Machine
Manufacturer Information
This complete high-pressure hydrogenation system includes major equipment from Patterson Industries, Biral-Buss, Sunitrol, Braun + Luebbe, Lightnin, and Ledco. The system is designed for continuous industrial lactitol production using catalytic hydrogenation of lactose with Raney nickel catalyst.
Description

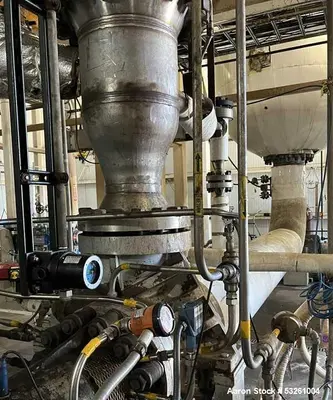

Used BUSS loop reactor high-pressure hydrogenation plant for lactitol production. This complete system is currently in operation and designed to convert lactose into high-purity lactitol through catalytic hydrogenation under high-pressure and high-temperature conditions. The plant includes a 316L stainless steel Patterson Industries 5,200 gallon reaction vessel, high-pressure loop reaction piping, catalyst preparation tanks, dosing and feed pumps, heat exchangers, product vessels, filters, coolers, heaters, additive tanks, and available supporting structure.
Multiple prints, including process and footprint drawings, are available. Inspections and additional information are available upon request. Building is not included.
Specifications
Application: Lactitol production by catalytic hydrogenation
Reactor Type: BUSS loop reactor / CSTR-style hydrogenation system

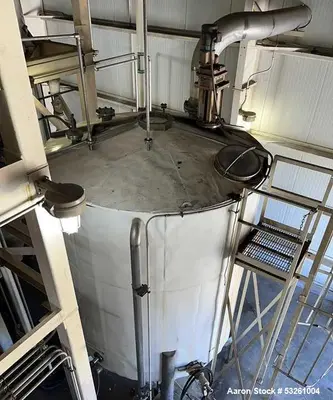

Main Reactor: Patterson Industries 5,200 gallon reaction vessel
Material of Construction: 316L stainless steel

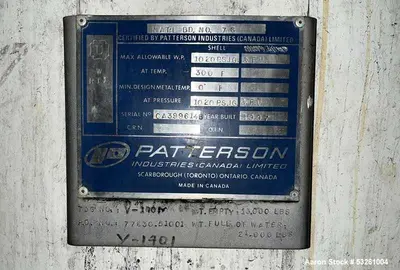

Reactor Rating: Full vacuum / 1020 PSI at 300°F
Catalyst: Raney nickel / sponge nickel

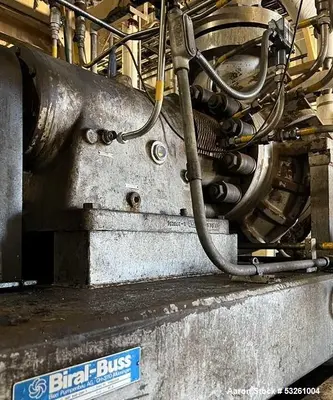

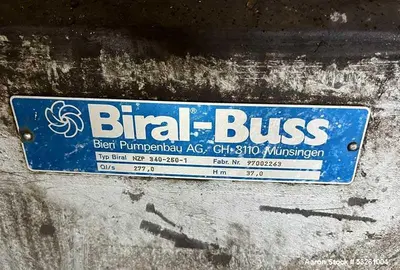

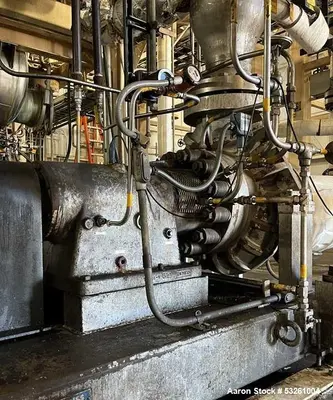

High Pressure Pump: Biral-Buss Type NZP 340-250-1
Raw Material Feed Pump: Sunitrol lactose feed pump, 250 HP, 460V
Dosing Pump: Braun + Luebbe, 15 HP, 316 stainless steel

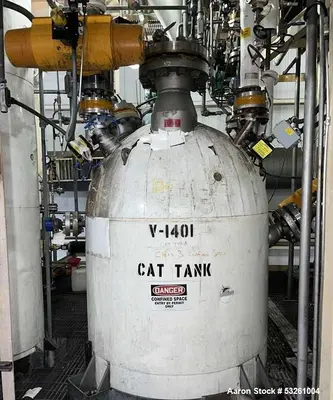

Catalyst Prep Tank: Patterson Industries 1,000 gallon, 316L stainless steel, with Lightnin agitator
Additional Catalyst Tank: Ledco 360 gallon, 316L stainless steel
Includes: Heat exchangers, RXN pump, additive tanks, feed pumps, product vessels, pressure filters, product coolers, heaters, and structure
Documentation: Multiple prints, system process drawings, and footprint drawings available
Applications
Lactitol production
Sugar alcohol manufacturing
Lactose hydrogenation
Specialty sweetener production
High-pressure catalytic hydrogenation
Food ingredient processing
Pharmaceutical excipient production
Fine chemical hydrogenation
Products This Equipment May Be Used For
Lactitol monohydrate
Sugar alcohols
Polyols
Low-calorie sweeteners
Food-grade sweetener ingredients
Pharmaceutical-grade sugar alcohols
Hydrogenated lactose derivatives
Specialty carbohydrate products
Frequently Asked Questions
What is this system designed to produce?
This plant is designed for lactitol production through catalytic hydrogenation of lactose.
Is the system currently operating?
Yes, the complete system is currently in operation.
What catalyst is used in the process?
Raney nickel, also known as sponge nickel, is commonly used in this lactitol hydrogenation process.
What is the main reactor size and rating?
The main Patterson Industries reactor is 5,200 gallons, 316L stainless steel, rated full vacuum / 1020 PSI at 300°F.
Are drawings or prints available?
Yes, multiple prints are available, including system process and footprint drawings.
Can Aaron Equipment assist with shipping and logistics?
Yes, Aaron Equipment can assist with equipment removal, loading, shipping, logistics coordination, and export requirements upon request.
