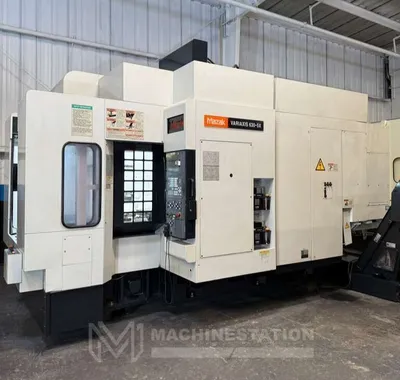

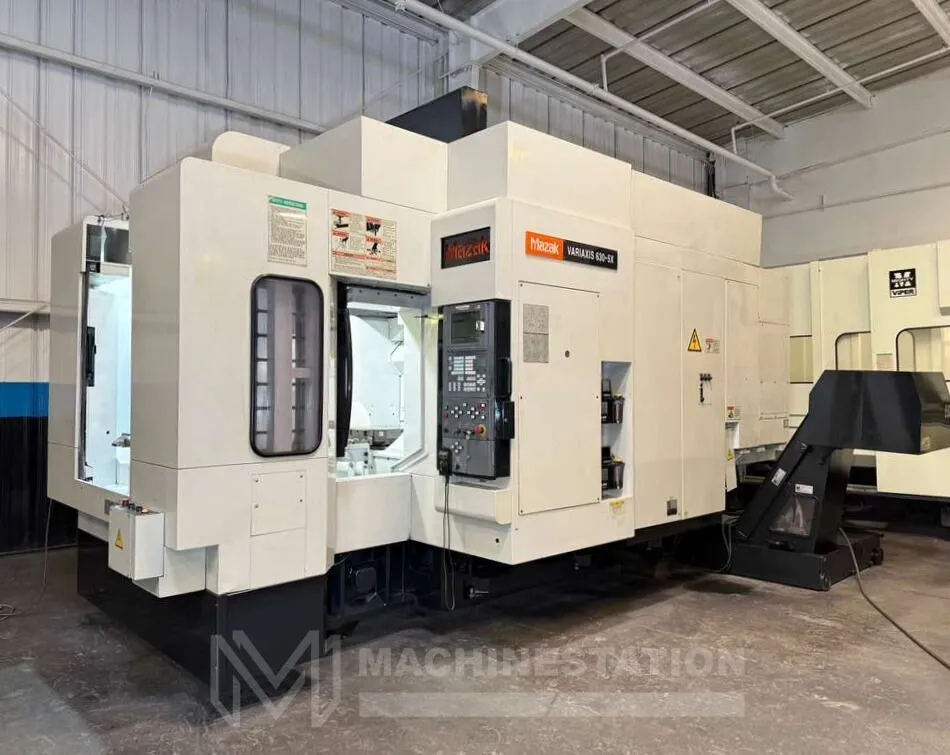

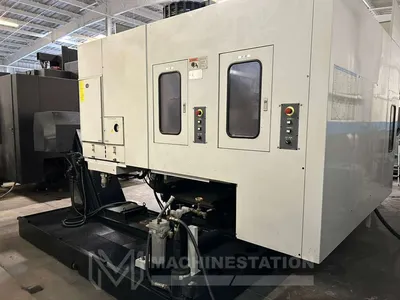

USED 2002 MAZAK VARIAXIS 630

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

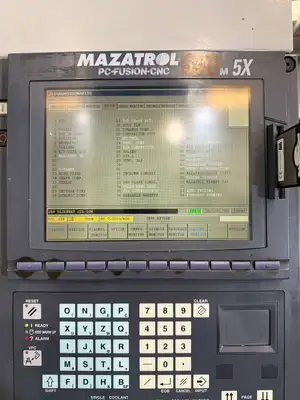

Mazatrol PC-Fusion 640M 5X CNC Control
7,352 Hours Cutting Time
Simultaneous 5 Axis Cutting
Programmable Swiveling Trunnion Table
PCMCIA Card Slot
Helical Interpolation
Absolute Incremental Programming

Travels:
X Axis: 24.80″
Y Axis: 30.12″
Z Axis: 20.08″
A Axis: – 120° + 30° ( 150° Table Tilt )
C Axis: 360° ( Table Rotate ) Min. Increment: 0.001°

Pallet:
No. of Pallets: 2
Length: 19.70″
Width: 19.70″
Max Workpiece Diameter: 24.80″
Max Workpiece Height: 19.70″
Max Weight on Table: 1102 lbs

Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 30 HP

Feed rates:
Rapid X, Y & Z : 1969 Inch Per Minute
Cutting Feedrate: 1574 Inch Per Minute

Tool changer:
Capacity: 80 Station
Taper: CAT-40
Max Tool Size: 3.15″
Max Tool Length: 14.17″
Max Tool Weight: 17.6 lbs.
Tool Change Time: 5.5 Second

General:
Air Required: 100 psi, 4 scfm
Power: 50kva / 400v / 3-Phase
Shipping Dimension: 162″ X 96″ x 126″ High Approx.

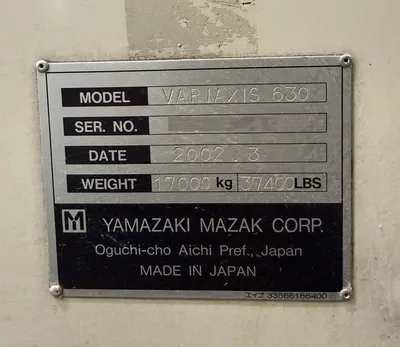

Weight: 37,400 lbs Approx.

2 No. Pallet Changer 19.7 x 19.7”
12,000 RPM High Precision Spindle
Through Spindle Coolant

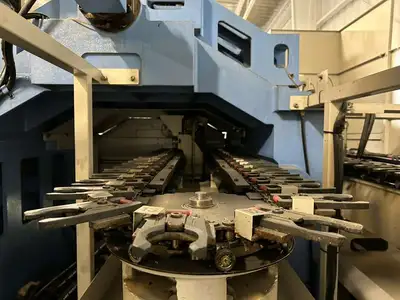

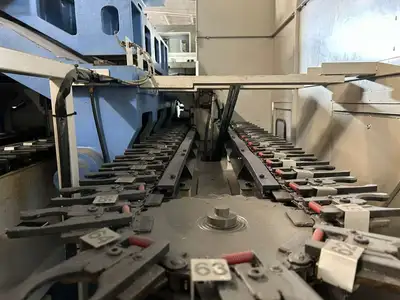

80 Station Automation Tool Changer
1969 IPM Fast Rapid Traverse Rate
Renishaw Probing System Ready (Needed Probe)
Spindle Chiller
Spindle Orientation
Rigid Tapping
High Pressure Coolant System

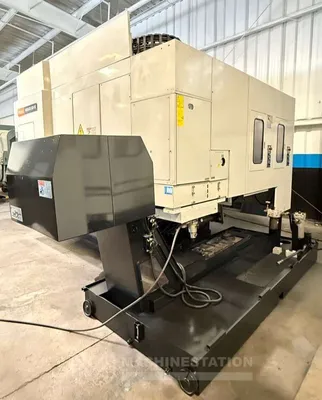

Chip Conveyor
Transformer
Work light
