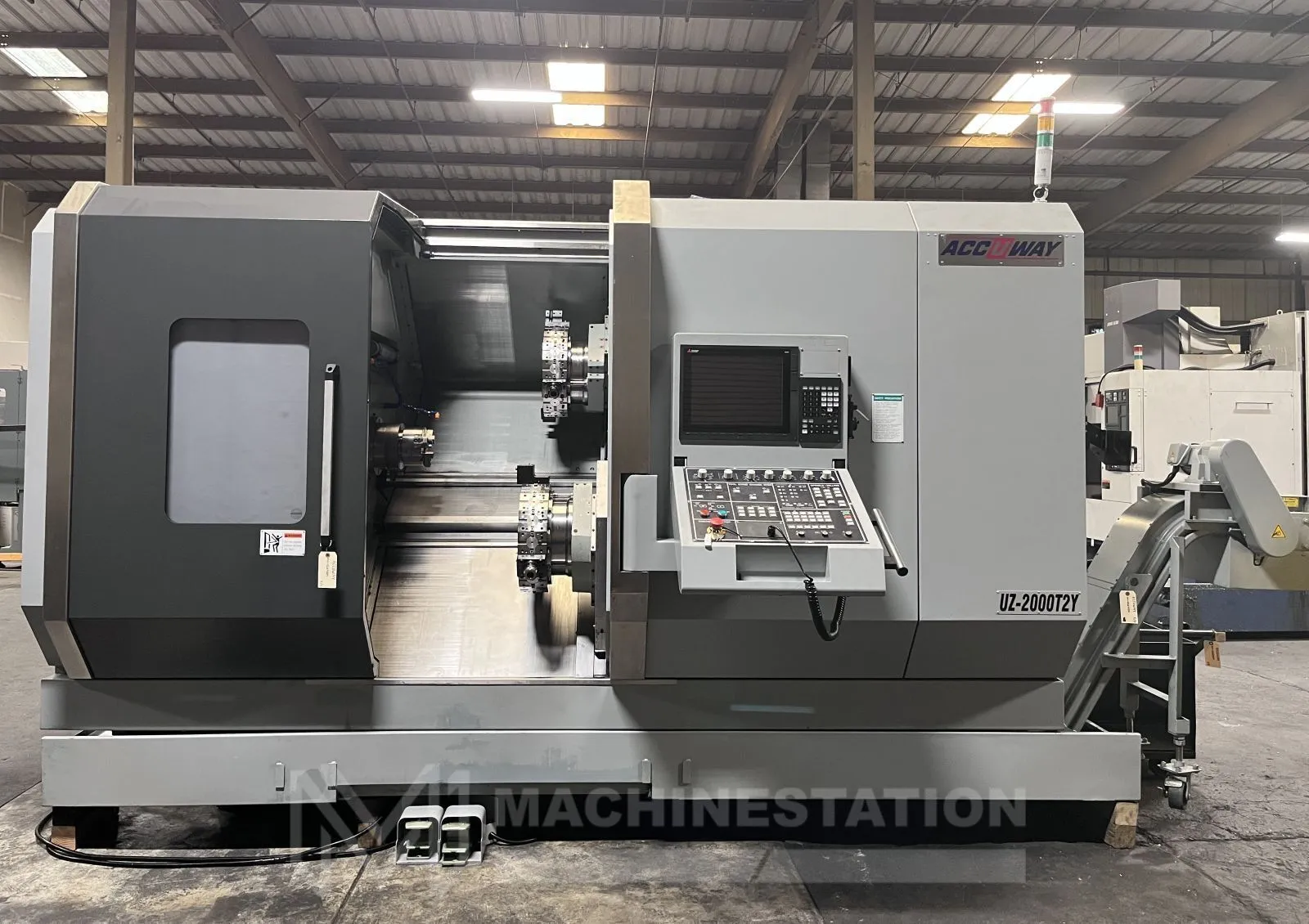

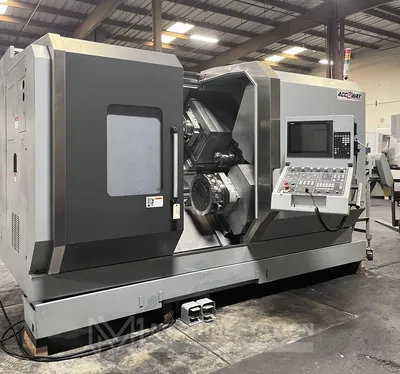

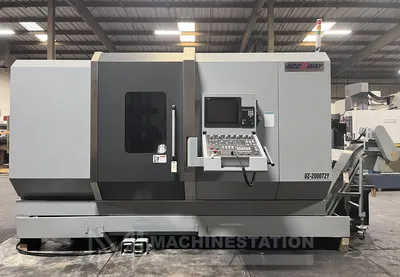

USED 2016 ACCUWAY UZ-2000T2Y
Overview
Specifications
| # Axis | 8 | 8 |
|---|---|---|
| Swing | 25.98" | 659.89 mm |
| Machining Length | 31.1" | 789.94 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2.04" | 51.816 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 12.59" | 319.79 mm |
| Tailstock | No | No |
| Control | CNC (Mitsubishi M800 Series) | CNC (Mitsubishi M800 Series) |
| Dimensions | 185″ x 95″ x 91″ Height | 185″ x 95″ x 91″ Height |
| Weight | 24,251 lbs Approx. | 24,251 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

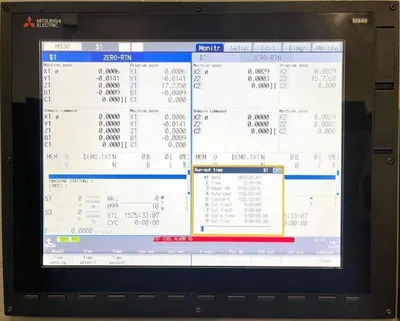

Mitsubishi M800 Series 8 Axis CNC Control
1525 Hours Cycle Time
Both Spindle Synchronization
Coolant Tank
Automatic Lubrication System
Capacity:
Max Turning Diameter Upper Turret : 12.59″
Max Turning Diameter Lower Turret : 12.59″
Max Swing Over Bed : 25.98″
Max Swing Over Saddle: 24.40″
Max Turning Length: 31.10″
Max Bar Capacity Main Spindle : 2.04″
Max Bar Capacity Sub Spindle : 2.04″
Distance Between Spindle Centers: 45.2″
Travels:
X1 Axis Travel Upper Turret: 8.26″
X2 Axis Travel Lower Turret : 8.26″
Y1 Axis Travel Upper Turret: -1.77″/+2.55″
Z1 Axis Travel Upper Turret: 33.07″
Z2 Axis Travel Lower Turret : 33.07″
B Axis Travel: 36.22″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle
Feedrate:
X1/X2 Axis: 1181 IPM Rapid Traverse
Y1 Axis: 1181 IPM Rapid Traverse
Z1/Z2 Axis: 1181 IPM Rapid Traverse
B Axis: 1574 IPM Rapid Traverse
Main Spindle:
Main Spindle Nose: A2-5
Main Spindle Bore: 2.5″
Main Spindle Speed: 5,000 RPM
Main Spindle Power: 20 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.5″
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 20 HP
Turret:
Upper Turret Capacity: 16 Stations
Lower Turret Capacity: 16 Stations
Live Milling Speed: 6000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Turret Type: BMT-40
General:

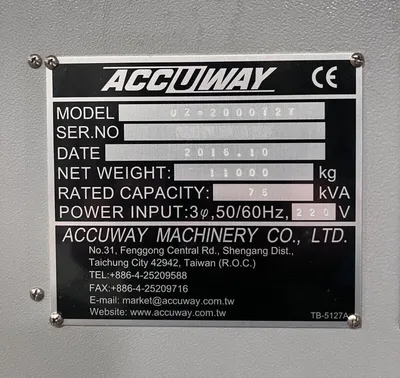

Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 75 kva
Machine Dimensions: 185″ x 95″ x 91″ Height
Machine Dimensions: 210″ x 95″ x 91″ Height (With Chip Conveyor)
Machine Weight: 24,251 lbs Approx.
Equipped With
6″ 3-Jaw Chuck on Main Spindle (Capable 8" Chuck)
6″ 3-Jaw Chuck on Sub Spindle
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

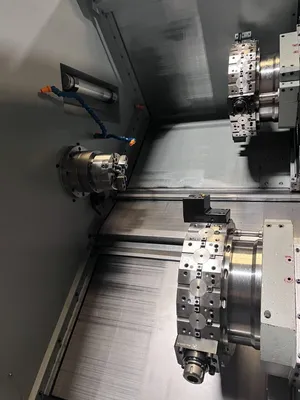

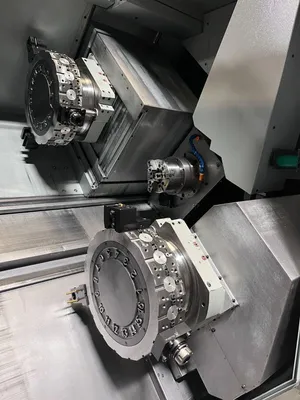

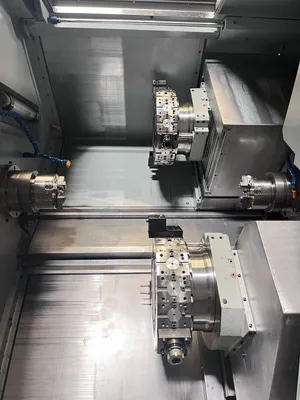

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Auto Parts Catcher
Parts Conveyor
High Pressure Coolant System

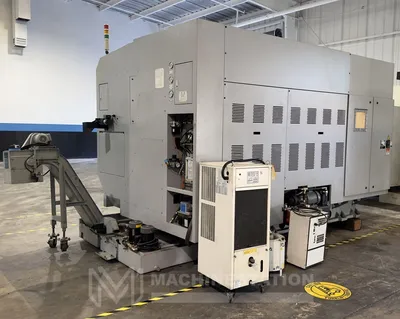

Chip Conveyor
Books and Manuals
Foot Switches
Misc. Tool Holders (Mounted on Turrets as shown in the images)
