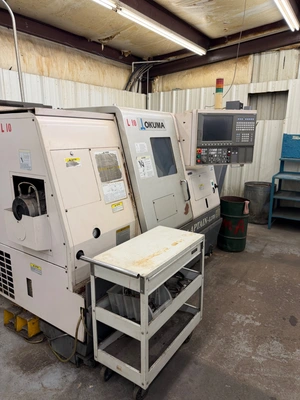

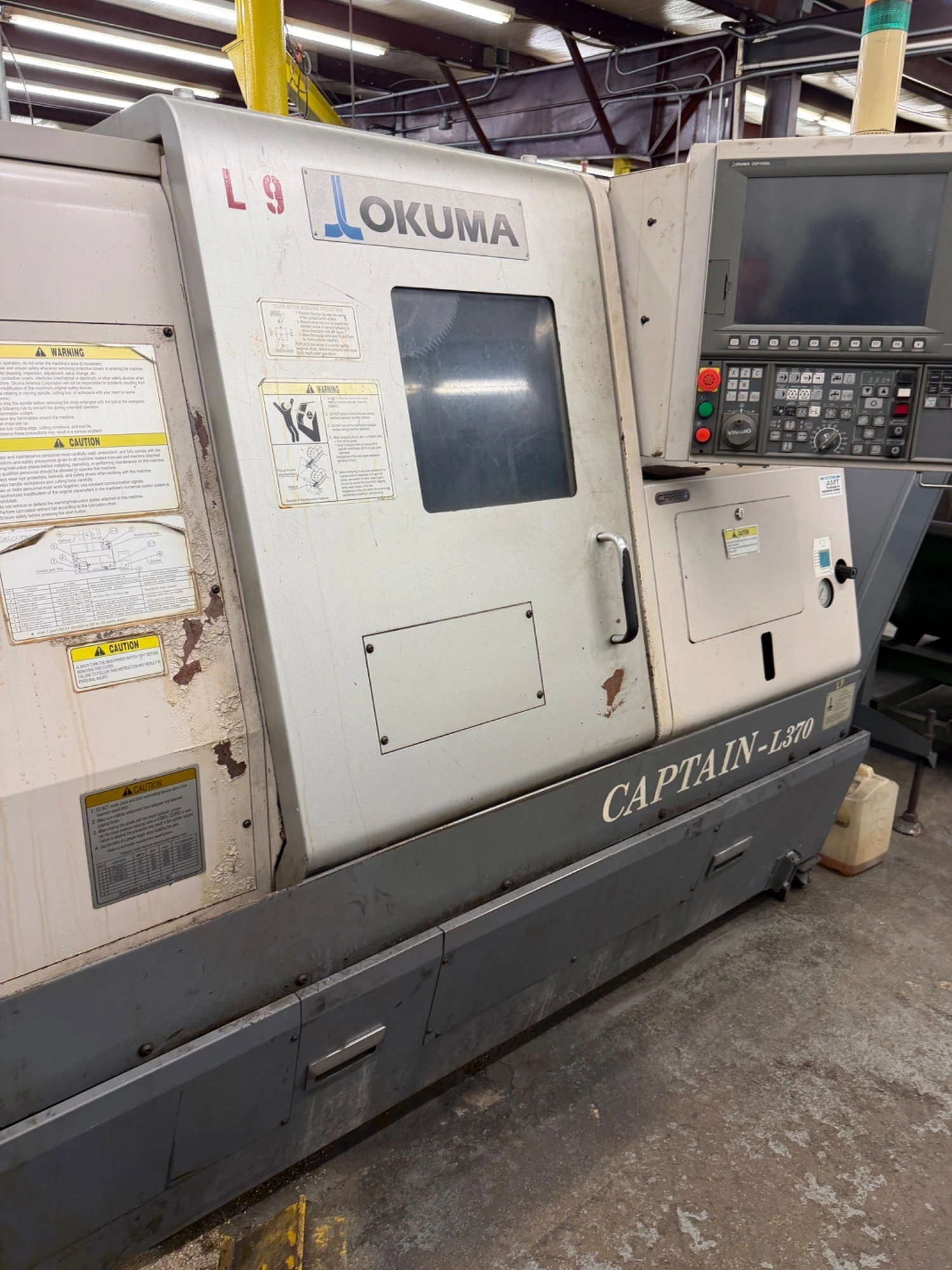

USED 2008 OKUMA CAPTAIN L370
Overview
Description
Okuma Captain L370 is a compact, rigid, 2‑axis CNC turning center with an 8" chuck class, known for reliability, fast rapids, and Okuma’s stable OSP control.
Specifications
| Swing | 20.8" | 528.32 mm |
|---|---|---|
| Machining Length | 20.47" | 519.94 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.97" | 50.038 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 14.5" | 368.3 mm |
| Tailstock | No | No |
Capacity
Max Turning Diameter: 14.56–14.57"
Max Turning Length: 20.47"
Swing Over Bed: 20.86–21.65"
Swing Over Slide: 15.78"
Distance Between Centers: 20–22.29"
Spindle
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP
Spindle Bore: 2.44–3.00"
Spindle Nose: A2‑6
Chuck / Bar
Chuck Size: 8"
Bar Capacity: 2.05–2.44"
Axes
X‑Axis Travel: 10.23"
Z‑Axis Travel: 20.47"
Rapids:
X: 787 IPM
Z: 984 IPM
Turret
Stations: 12
Index Time: 0.5 sec
Tailstock
Body Travel: 14.3"
Quill Diameter: 3.54"
Quill Stroke: 3.93"
Taper: MT‑4
Control
OSP‑P100 / P200L / E100L depending on year
Machine Size / Weight
Dimensions: approx. 110" × 68" × 80"
Weight: ~9000 lbs
