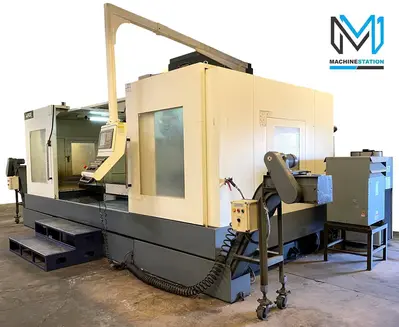

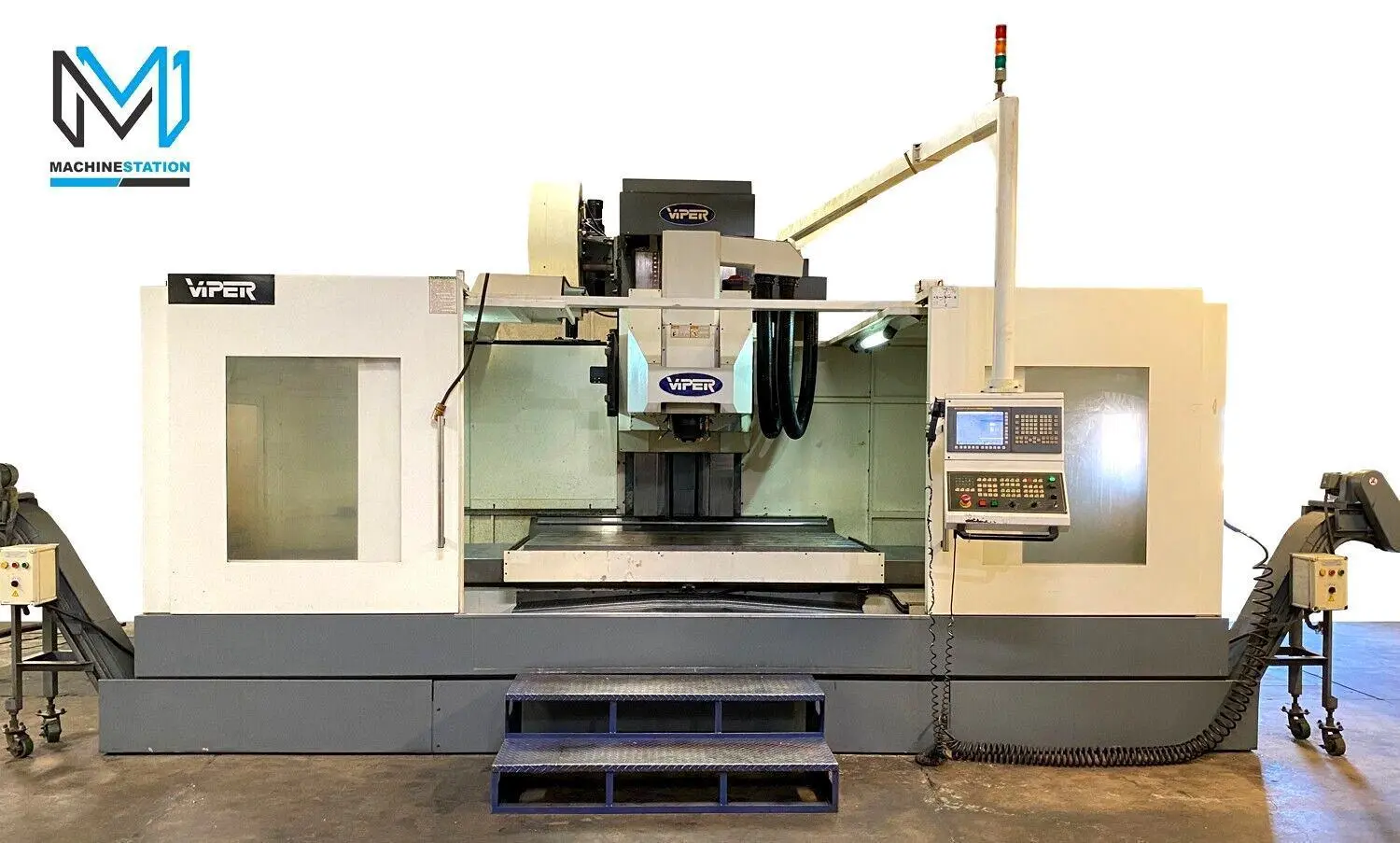

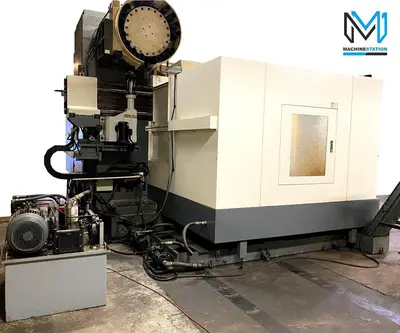

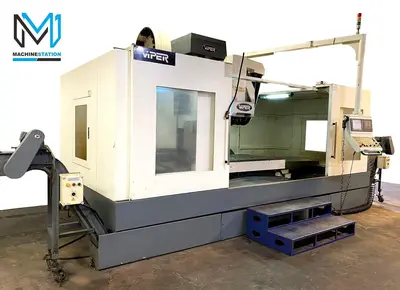

USED 2015 MIGHTY VIPER VMC-2100 5AB

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

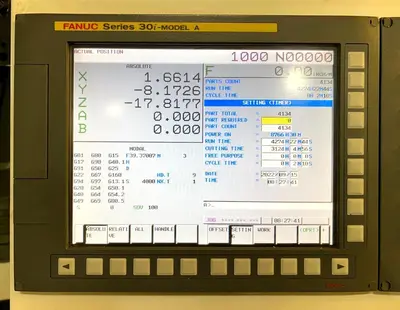

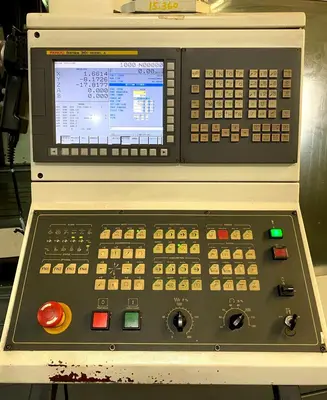

Fanuc 30i-MA 5 Axis Simultaneous Contouring Control
3124 Hours Cutting Time
Articulating Spindle Head (A & B Axis)
Box Way Heavy Construction
50 HP High Torque Spindle Motor
20 Automatic tool changer
MPG Control
Rigid Tapping
Spindle Orientation
Telescopic way covers

Specifications:
Travels:
X-Axis: 80.0"
Y-Axis: 40.0"
Z-Axis: 30.0"
A-Axis: +/- 35° degrees
B-Axis: +/- 35° degrees
Rapid Traverse Rates: IPM?
Spindle Nose to Table (Min.- Max.): 5.0" - 39.0"

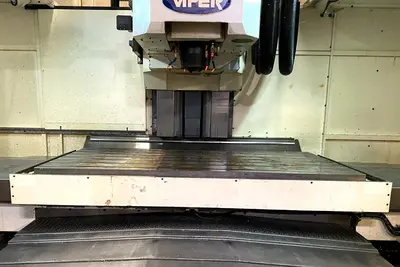

Table:
Length: 82.6"
Width: 41.3"
Number of Std T-Slots: 5
T-Slot Width: 5/8"
Max Weight on Table:  lbs ?

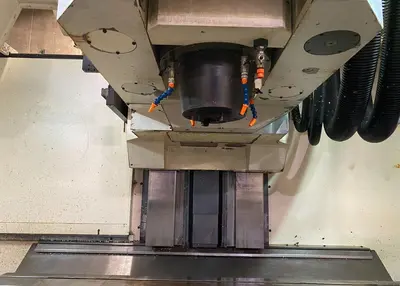

Spindle:
Articulated 5 Axis
Taper Size: 50
Speed Range: 10000 RPM
Spindle Power: 50 HP

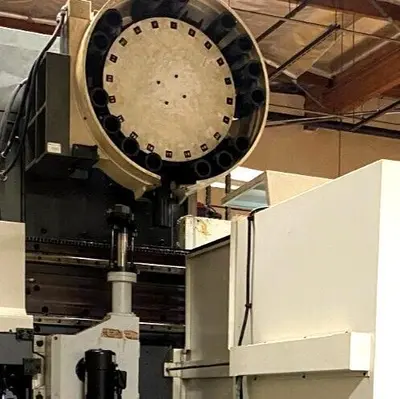

Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 33 lbs
Max Tool Dia: 5.2"
Max Tool Length: 11.8"
Tool Changing Time:  Seconds ?

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: " x " x " High ?
Weight:  lbs ?

50 Taper 10000 RPM  Spindle
Oil Chiller Unit
Coolant Tank
Dual Chip Conveyor
