| X Axis | 40" | 1,016 mm |
| Y Axis | 20" | 508 mm |
| Z Axis | 25" | 635 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 50" | 1,270 mm |
| Table-L | 18" | 457.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 152″ x 86″ x 106″ High | 152″ x 86″ x 106″ High |
| Weight | 15,440 lbs | 15,440 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Box Way construction
Fanuc Oi-MB series CNC Control
24 Station Automatic tool changer
8,000 RPM Gear Head Spindle
PCMCIA Card Slot
RS-232 Port
MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Spindle Nose to Table (Min.- Max.): 3.94″ – 28.7″
Rapid Traverse Rates X, Y Axis: 708″ Per Minute
Rapid Traverse Rates Z Axis: 590″ Per Minute
Cutting Feed Rates: 400″ Per Minute

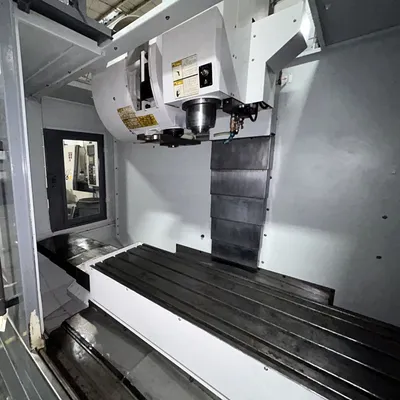

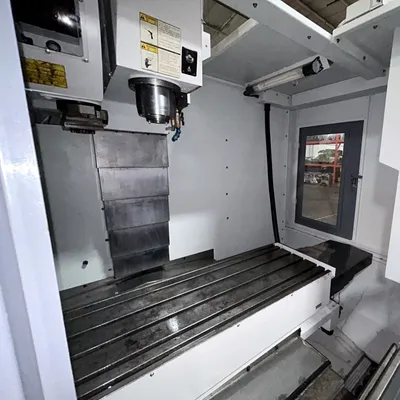

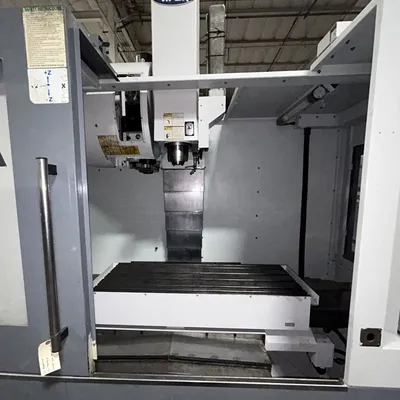

Table:
Length: 50″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1550 lbs

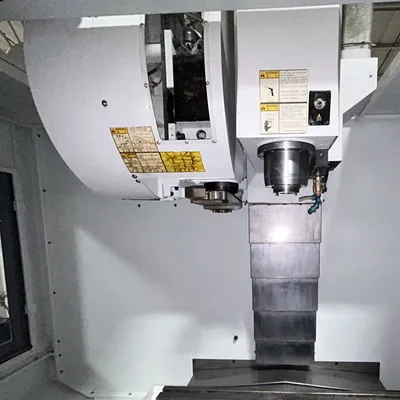

Spindle:
Spindle: Taper Size: 40
Speed Range: 8,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 24 Station
Tool Weight: 14 lbs
Max Tool Dia: 3.95″
Max Tool Length: 9.84″
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase / kva
Overall Dimensions: 152″ x 86″ x 106″ High
Weight: 15,440 lbs
Coolant tank
