USED VAN DER MOLEN GMBH 15000 Liters

Poland
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Stainless Steel Tanks

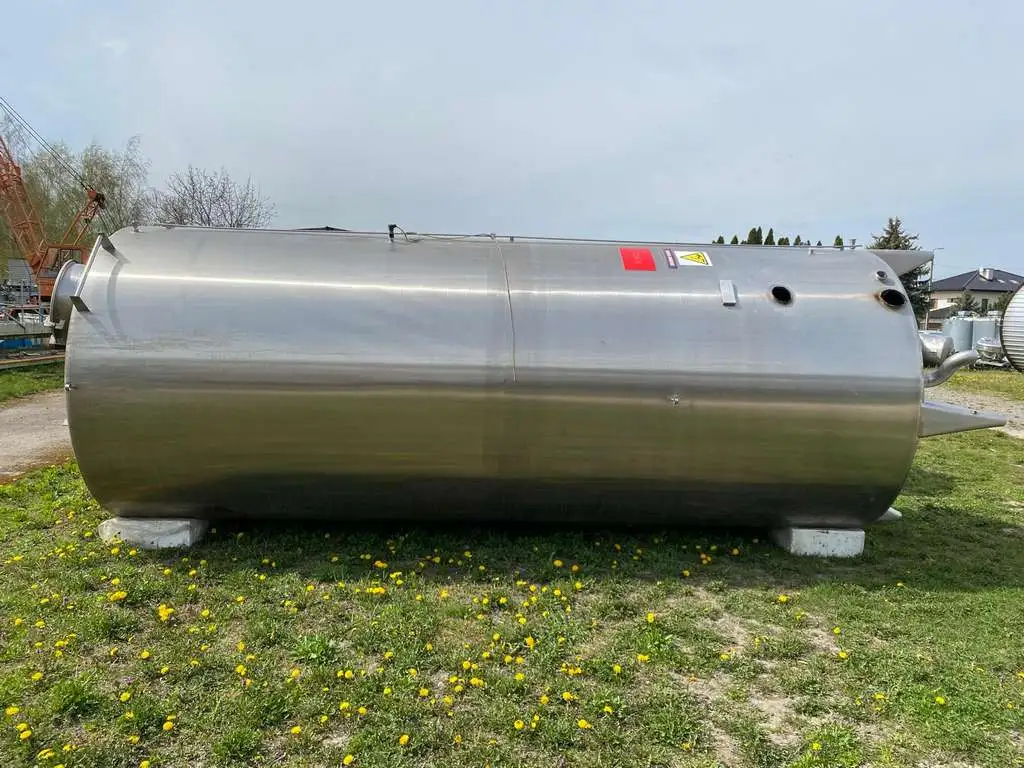

Used vertical stainless steel storage tank with working volume 15 000 l by Van Der Molen Gmbh (Germany). Internal diameter 2000 mm x length of straight side of wall 5000 mm. Top slightly conical, welded, with inspection manway - diameter 460 mm, with lid. Bottom slightly conical, welded, with central discharge outlet - diameter 50 mm. Tank is mounted on 4 stainless steel legs. Shipping dimensions: diameter 200 cm x length 585 cm.

Specs
Capacity
15,000 L
3,962.6 gal
Diameter
2,000 mm
6.56'
Height
5,000 mm
16.4'
Type of stainless
Stainless steel
Stainless steel
Type Of Heads
Top and bottom slightly conical
Top and bottom slightly conical
Vertical/Horizontal
Vertical
Vertical
Legs/Lugs/Skirt
4 legs
4 legs
Dimensions
diameter 2000 mm x length 5850 mm
diameter 2000 mm x length 5850 mm
Weight
950 kg
950 kg
