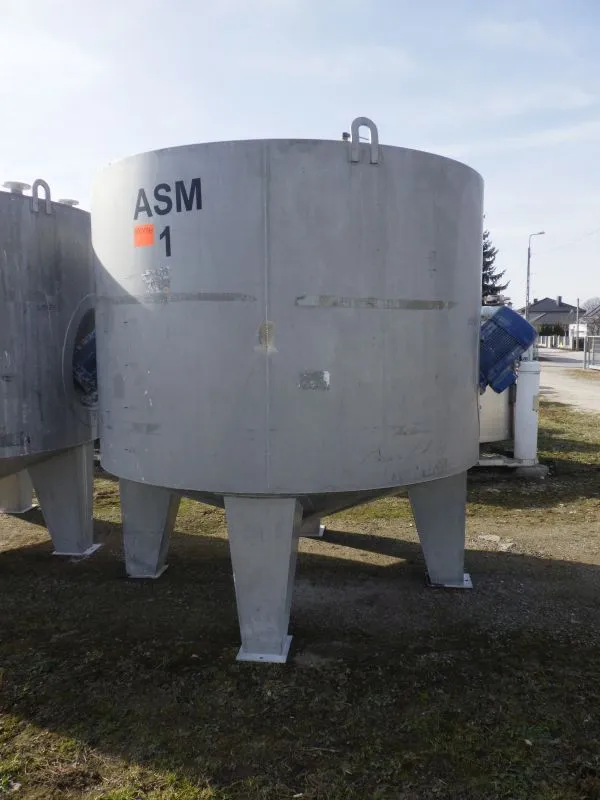

Used vertical stainless steel 1.4571 (AISI 316Ti) mixing tank by Heidelmeier (Germany) with total volume 9000 l. Tank has internal diameter 2470 mm x length of the straight wall 1700 mm. Top flat, with bolted cover. There is an inspection manway with manually rised cover. Bottom welded, conical with central discharge. Tank is equipped with side wall agitator, type "jet stream" by Ystral type TFW-4. Driven directly by el motor 11 kW, 1475 rpm, 400/690 V, 50 Hz. Tank is mounted on 4 stainless steel legs. Last time used in chemical production.
| Capacity | 9,000 L | 2,377.5 gal |
| Diameter | 2,470 mm | 8.1' |
| Height | 1,700 mm | 5.58' |
| Type of stainless | 1.4571 (AISI 316Ti) | 1.4571 (AISI 316Ti) |
| Type Of Heads | Flat top and conical bottom | Flat top and conical bottom |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 4 stainless steel legs | 4 stainless steel legs |
| Dimensions | Internal Diameter 2470 mm x Length of the straight wall 1700 mm | Internal Diameter 2470 mm x Length of the straight wall 1700 mm |
