USED VAN BEEK BV TR300

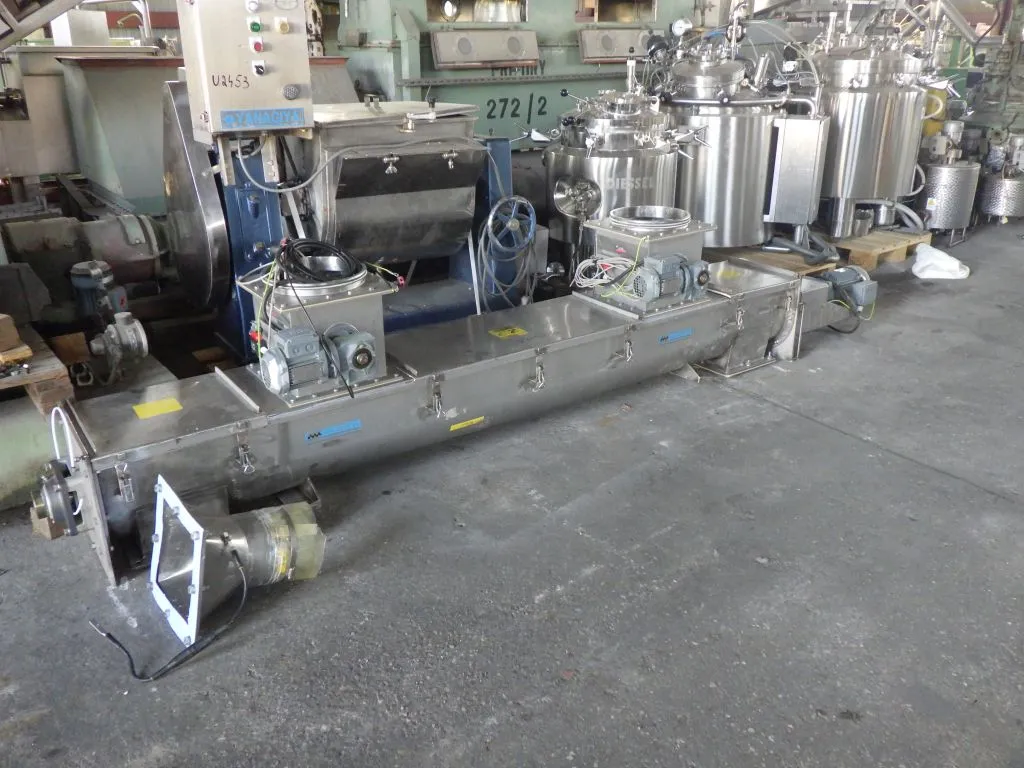

Used stainless steel horizontal screw conveyer by Van Beek BV (NL) type "U", model TR300. Width of the gutter 315 mm. Screw has diameter 300 mm, lead of the screw 270 mm, total length of the screw 290 cm. Conveyer has two inlets, each with diameter 298 mm and rotary magnetic separator by Goudsmit Magnetic Systems (NL). Each separator is driven by el motor and reducer 0.18 kW, 1320/21 rpm, 220-240/380-415 V, 50 Hz. Spacing between center axis of each inlet is 145 cm. Conveyer has also two rectangular discharge outlets, each with dimensions: 240 mm x 250 mm. Spacing between centers of discharge outlets - 250 cm. Screw is driven via reducer and el motor 2.2 kW, 220-240/380-415 V, 50 Hz. Working rotation of screw up to 64 rpm. Last time machine had been working in food industry as a collector of powdered products from two vibrating screens.
