USED 2013 HYSTER 030 U1

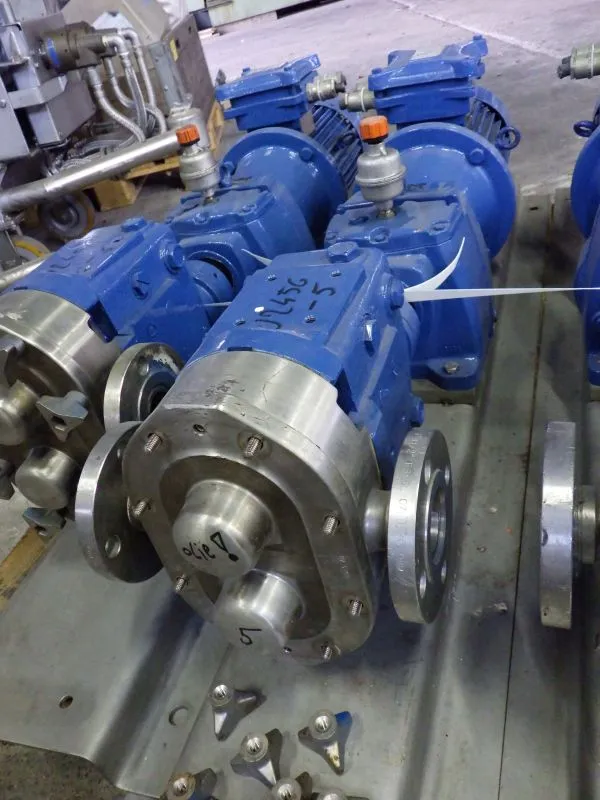

Used lobe/rotary pistons pump by SPX Waukesha Cherry-Burrell model 030 U1. Contact parts designed in stainless steel. Horizontal inlet and outlet connections, each with diameter 35 mm. Maximal rotation of lobes up to 600 rpm. Working rotation on this drive up to 205,45 rpm. Pump has working output, depending on the product, up to 8200 l/h. On current drive and rotation working output up to 2798 l/h. Working pressure up to 13.8 bar. Pump is driven by reducer and el motor 2.2 kW, 1430 rpm, 380 V, 50 Hz. Ex proof design - ExII2GEExceIIBT4. Pump is mounted on stainless steel supporting plate.
